Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

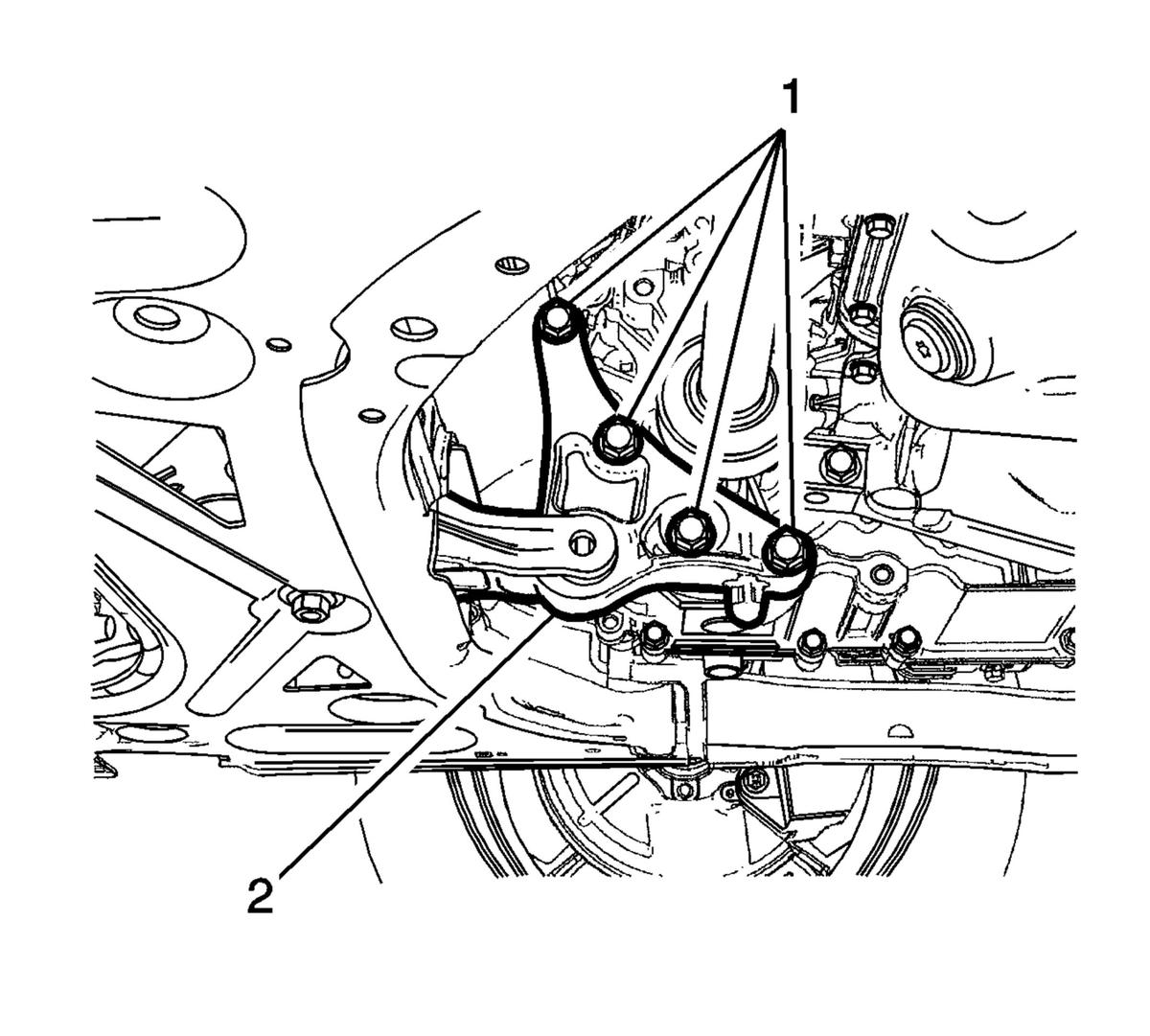

- Install the rear transmission mount bracket (2).
- Install the 4 NEW rear transmission mount bracket to transmission bolts (1) and tighten to 100 N.m (74 lb ft) plus 30-45 degrees.
- Install the NEW rear transmission mount bracket to rear mount through bolt (1) and tighten to 80 N.m (59 lb ft) plus 45-60 degrees.
- Remove the jack stand.
- Install the exhaust front pipe. Refer to Exhaust Front Pipe Replacement (LUV)Exhaust Front Pipe Replacement (2H0) .
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution .
