Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

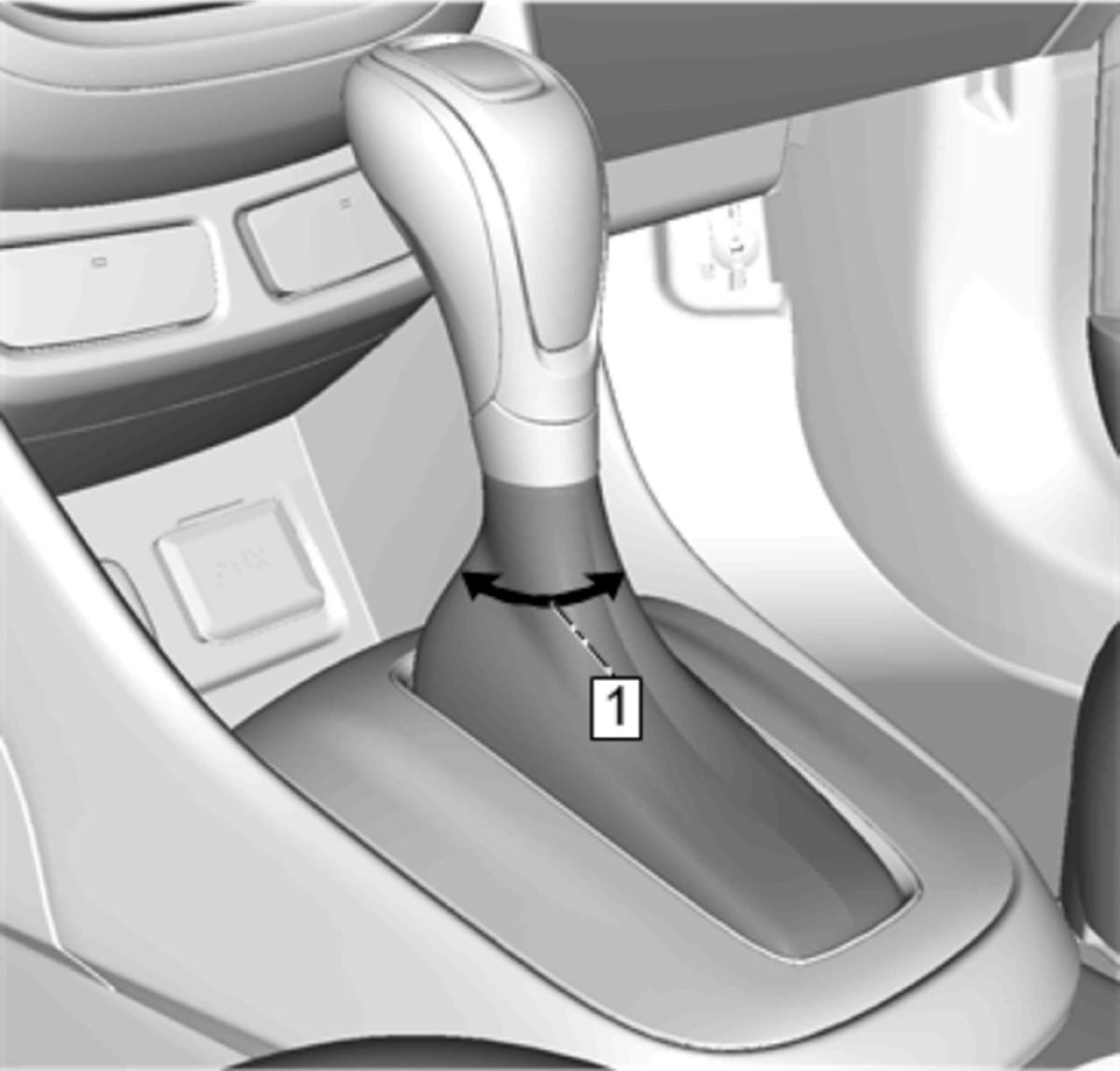

Fig 1: Shift Boot

Courtesy of GENERAL MOTORS COMPANY

Cut the shift boot in area shown (1), then pull the shift boot downward.

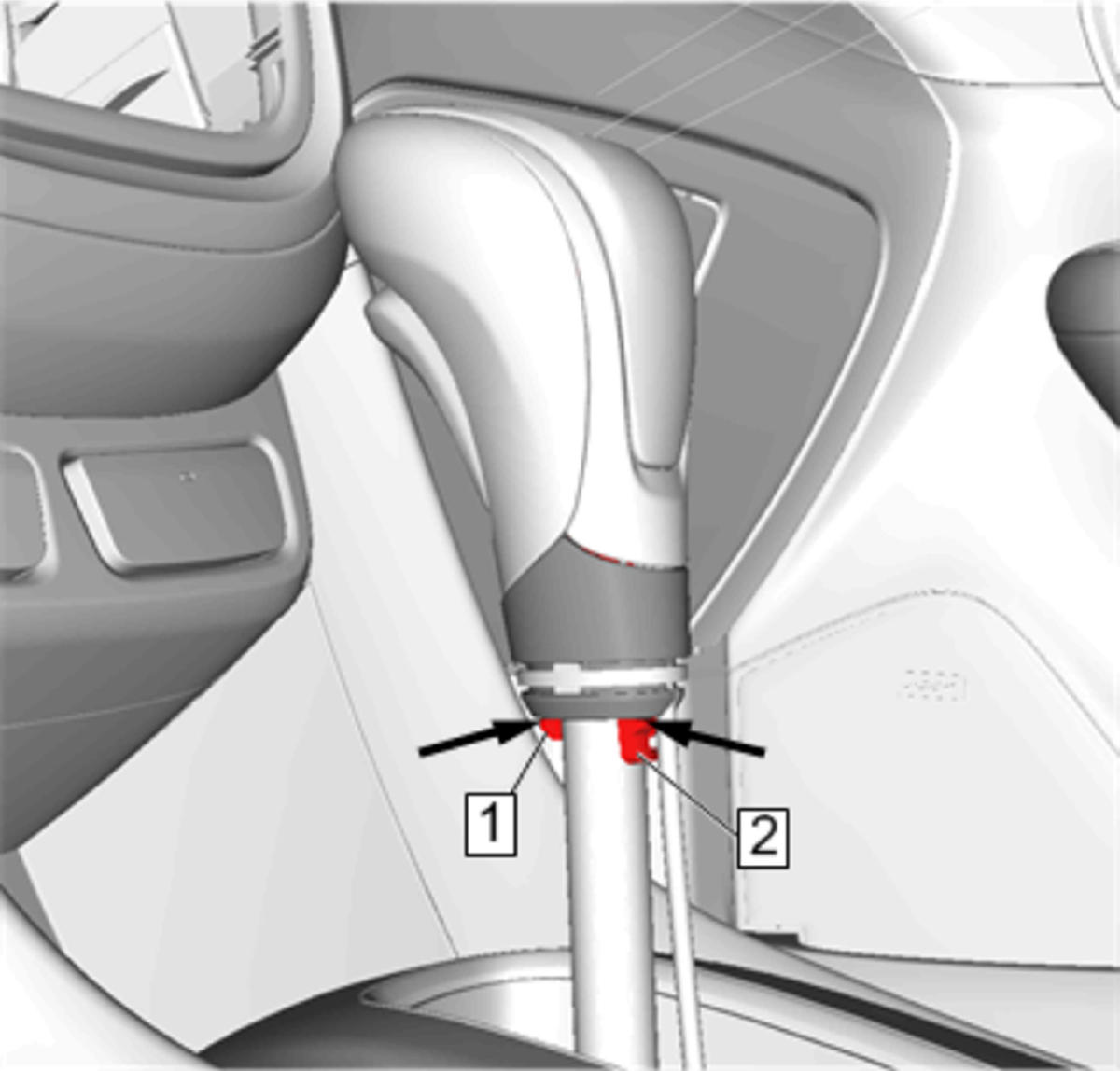

Fig 2: Shift Knob Collar Retaining Tabs

Courtesy of GENERAL MOTORS COMPANY

Cut the shift knob collar retaining tabs (1, 2) in the area shown.

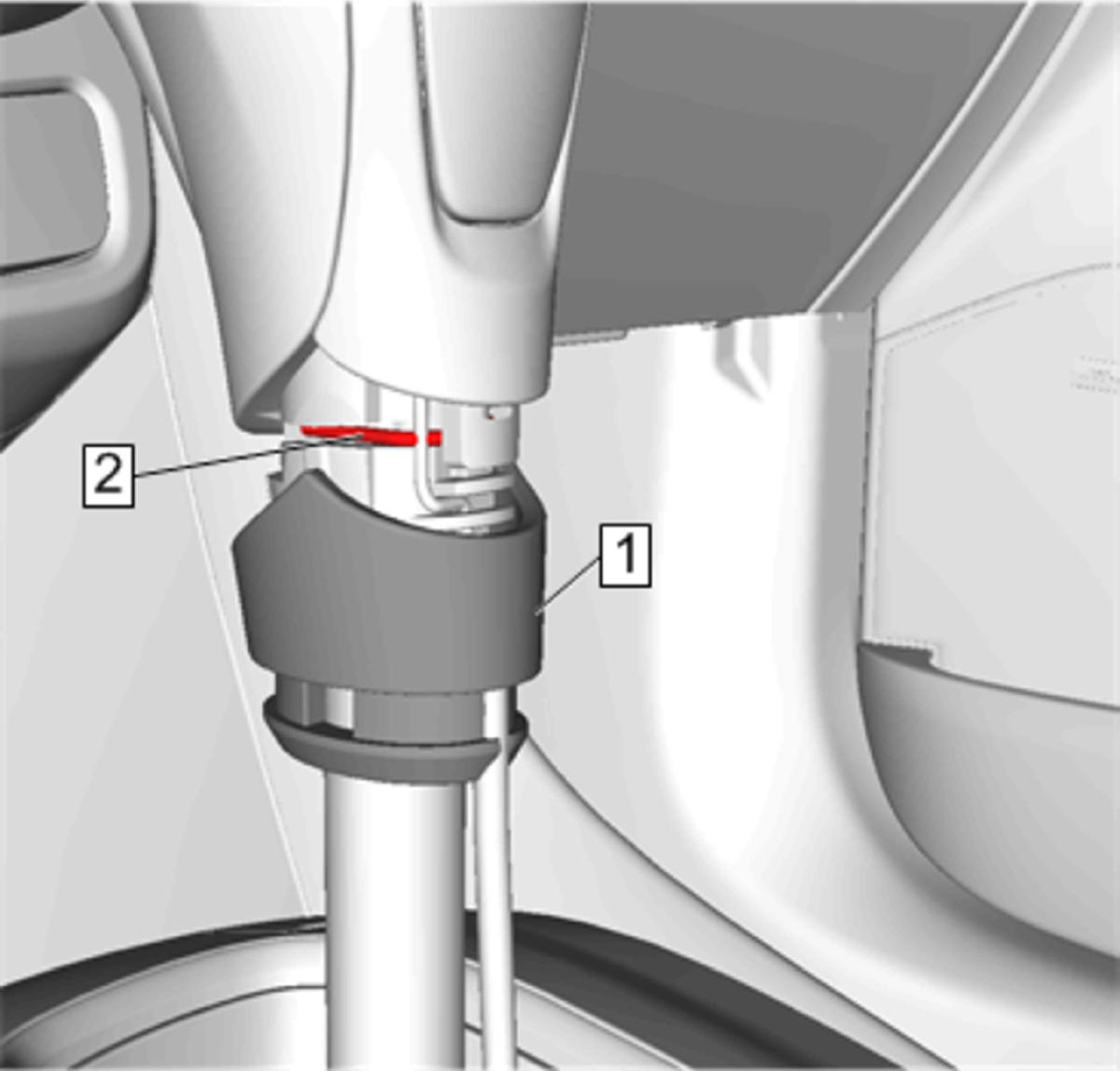

Fig 3: Knob Extension

Courtesy of GENERAL MOTORS COMPANY

Slide the knob extension (1) downward.
Remove the shift knob retaining clip (2).

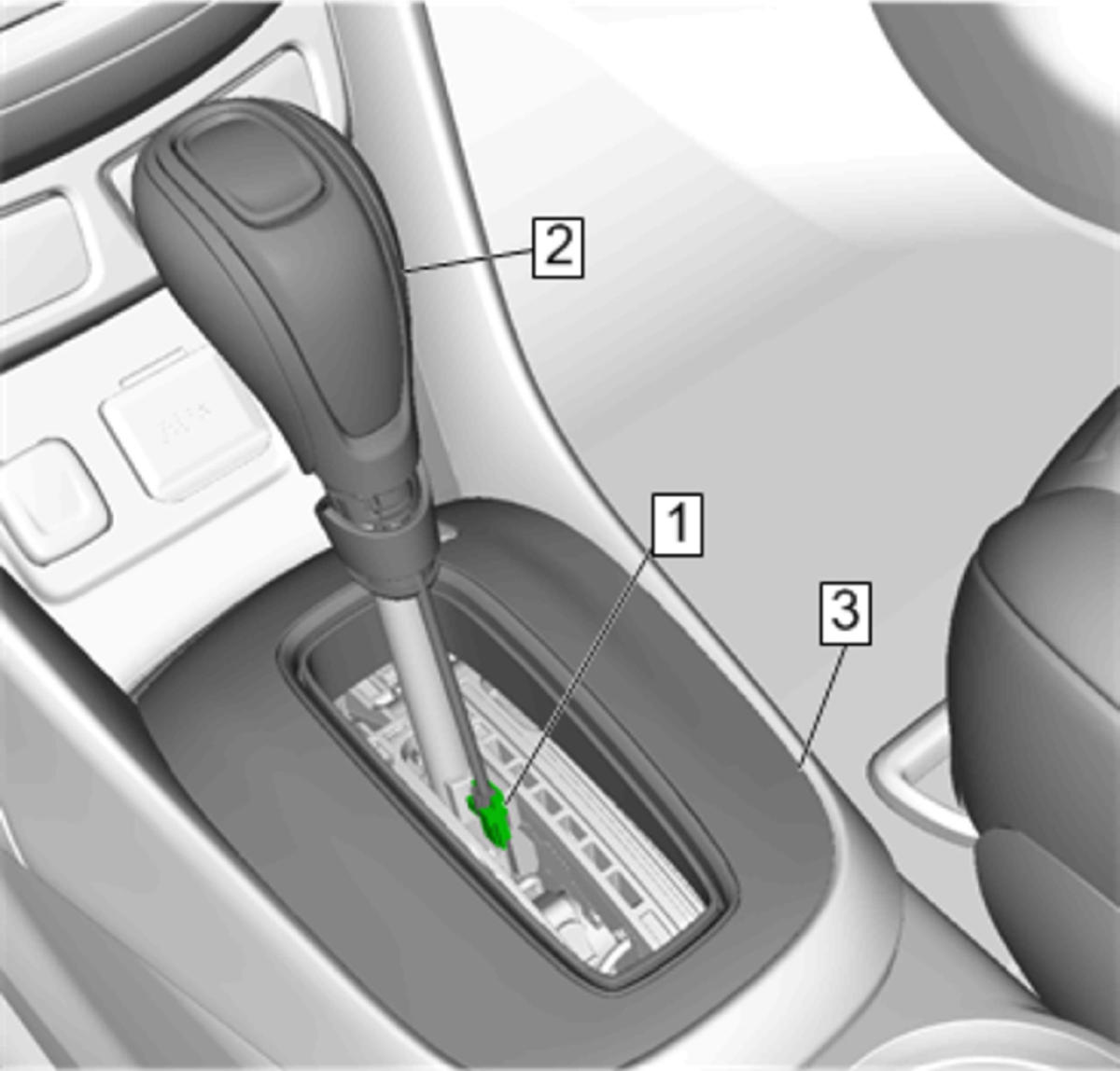

Fig 4: Shift Knob Electrical Connector

Courtesy of GENERAL MOTORS COMPANY

Disconnect the shift knob electrical connector (1).
Using a trim tool, remove and DISCARD the shift bezel (3)
Remove and DISCARD the shift knob assembly (2).
