Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the park brake and chock the wheels.
    2. Fig 1: Automatic Transmission Range Selector Lever Cable Terminal & Shift Lever Pin
    GM2492632Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the transmission range selector lever cable terminal (1) from the transmission manual shift lever pin.
  3. Press the locking tabs inward in order to release the transmission range selector lever cable (2) from the cable bracket.
  4. Remove the front floor console stowage tray. Refer to Front Floor Console Stowage Tray Replacement (Buick)Front Floor Console Stowage Tray Replacement (Chevrolet) .

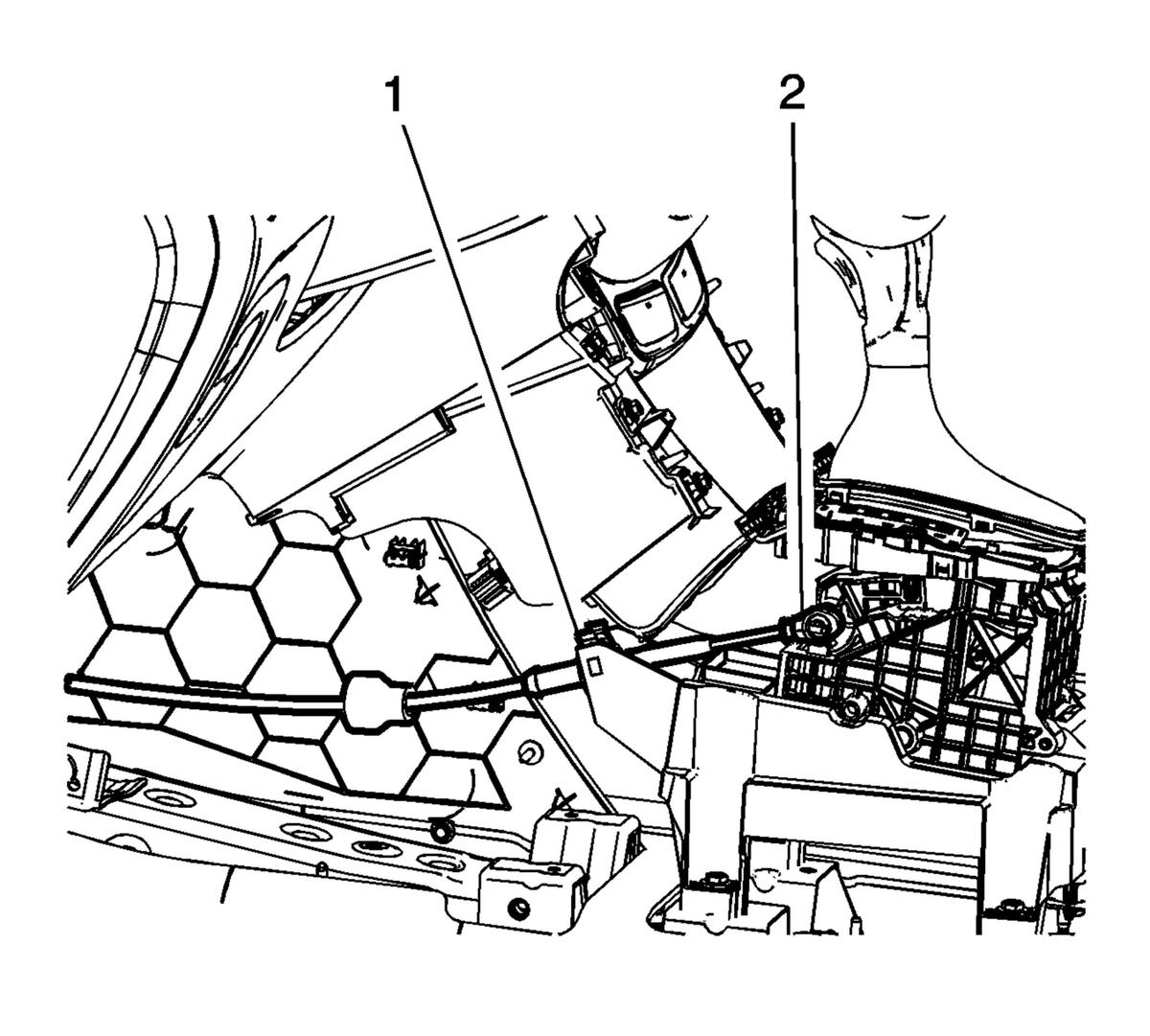

    5. Fig 2: Cable Terminal And Cable Retainer
    GM2759113Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect the transmission range selector lever cable terminal (2) from the shift lever pin.
  6. Release the transmission range selector lever cable retainer (1) and remove the transmission range selector cable from the transmission control lever base.

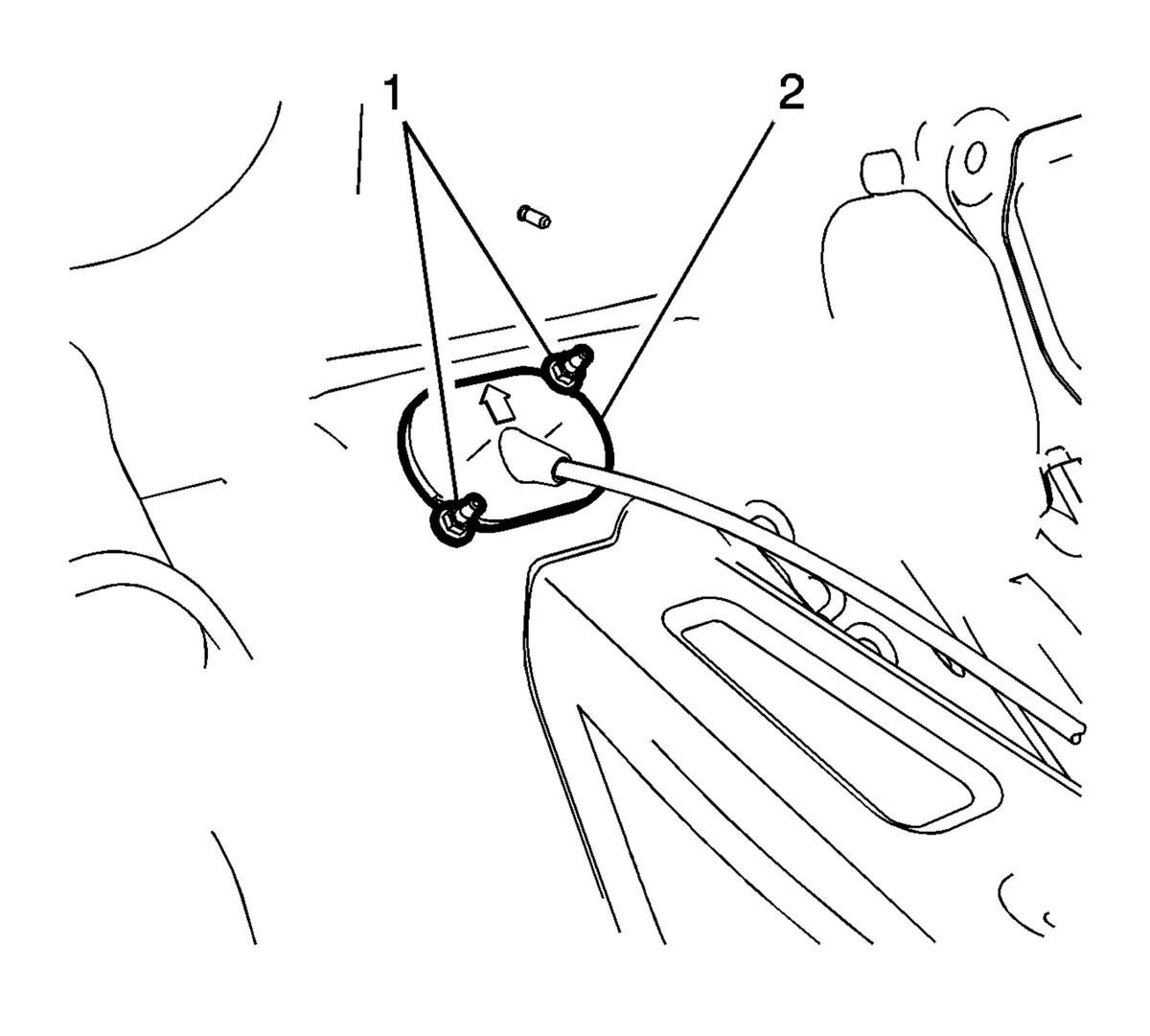

    7. Fig 3: Gear Shift Cable Grommet & Fasteners
    GM2526950Courtesy of GENERAL MOTORS COMPANY
  7. Move the floor carpet in order to gain access to the gear shift cable grommet (2).
  8. Remove the grommet fasteners (1) and the transmission range selector lever cable grommet from the cowl panel.
  9. Remove the transmission range selector lever cable from the vehicle.
