X902 License Lamp Harness to Liftgate Extension Harness
WARNING: This page is about a different car, the 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

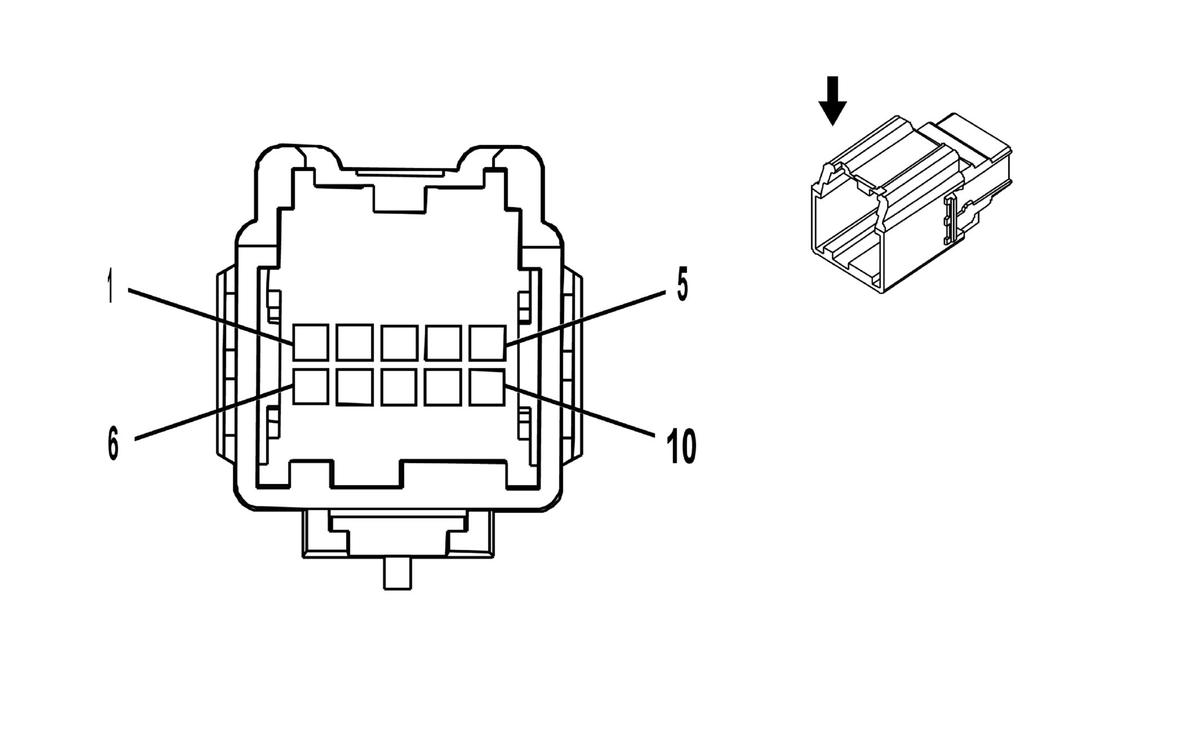

Connector Part Information
- Harness Type: License Lamp
- OEM Connector: 15486854
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way F Micro HVT 064 (BK)
|

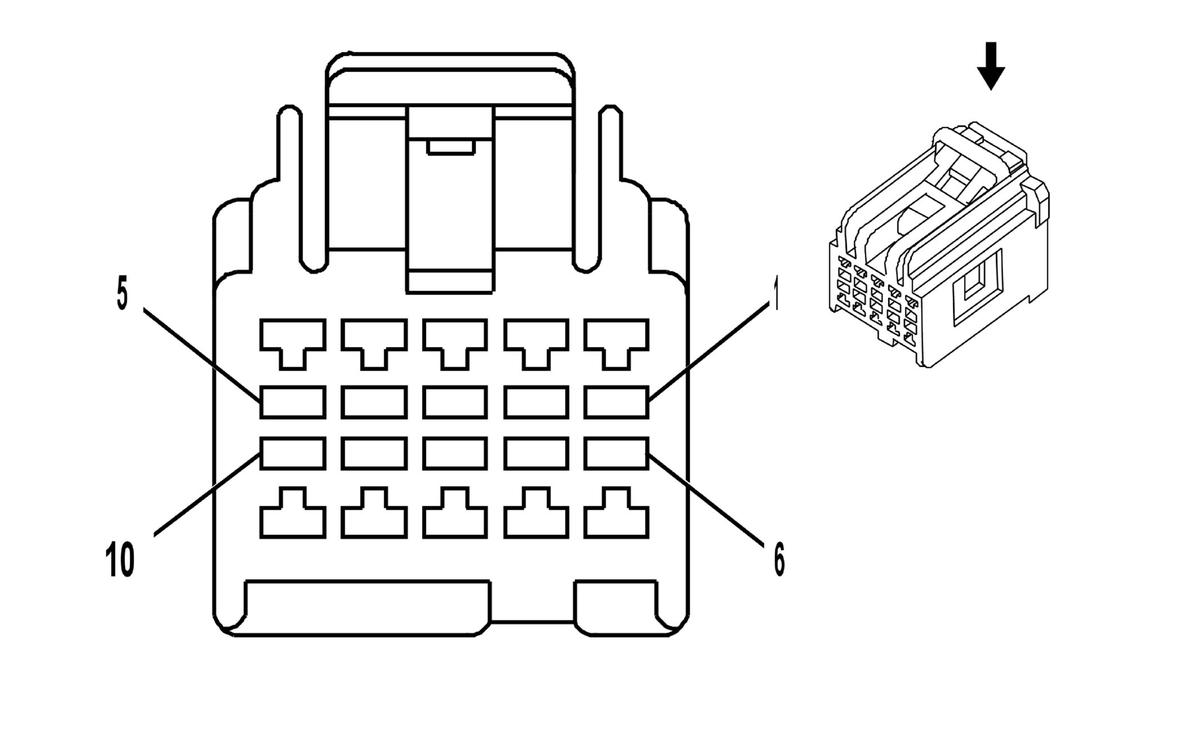

Connector Part Information
- Harness Type: Liftgate Jumper
- OEM Connector: 13624101
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way M 0.64 Micro HVT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Available |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-65B (LT BU) |
No Tool Required |
Not Available |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
- |
- |
Not Occupied |
1 |
- |
- |
- |
- |
- |
| 2 |
0.35 |
VT/GY |
539 |
I |
PW |
Run/Crank Ignition 1 Voltage |
2 |
0.5 |
BK |
539 |
II |
OCS |
| 3 |
0.5 |
GN/YE |
6846 |
I |
PW |
Rear License Lamp Control |
3 |
0.35 |
VT/GY |
6846 |
II |
HT |
| 4 |
0.35 |
GY/YE |
6972 |
I |
PW |
Camera Signal 2 + |
4 |
0.75 |
BK/WH |
6972 |
II |
LUV |
| 5 |
0.35 |
WH |
6973 |
I |
LP |
Camera Signal 2 |
5 |
1 |
RD/BU |
6973 |
II |
LUV+C60/C67/CJ2 |
| 6 |
- |
- |
- |
- |
- |
Not Occupied |
6 |
- |
- |
- |
- |
- |
| 7 |
0.35 |
GN/WH |
24 |
I |
PW |
Backup Lamp Control |
7 |
0.35 |
GN/WH |
24 |
II |
BK+SBR |
| 8 |
0.5 |
BK |
1150 |
I |
HT |
Ground |
8 |
0.35 |
YE/BU |
1150 |
II |
LUV |
| 9 |
0.5 |
GY |
7069 |
I |
LP |
Camera Shield Ground Extension |
9 |
0.5 |
GY |
7069 |
II |
LUV+MM3 |
| 10 |
0.75 |
BK/WH |
1651 |
I |
HT |
Signal Ground |
10 |
0.5 |
BK |
1651 |
II |
LUV |
