X301 Body Harness to Driver Seat Harness
WARNING: This page is about a different car, the 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

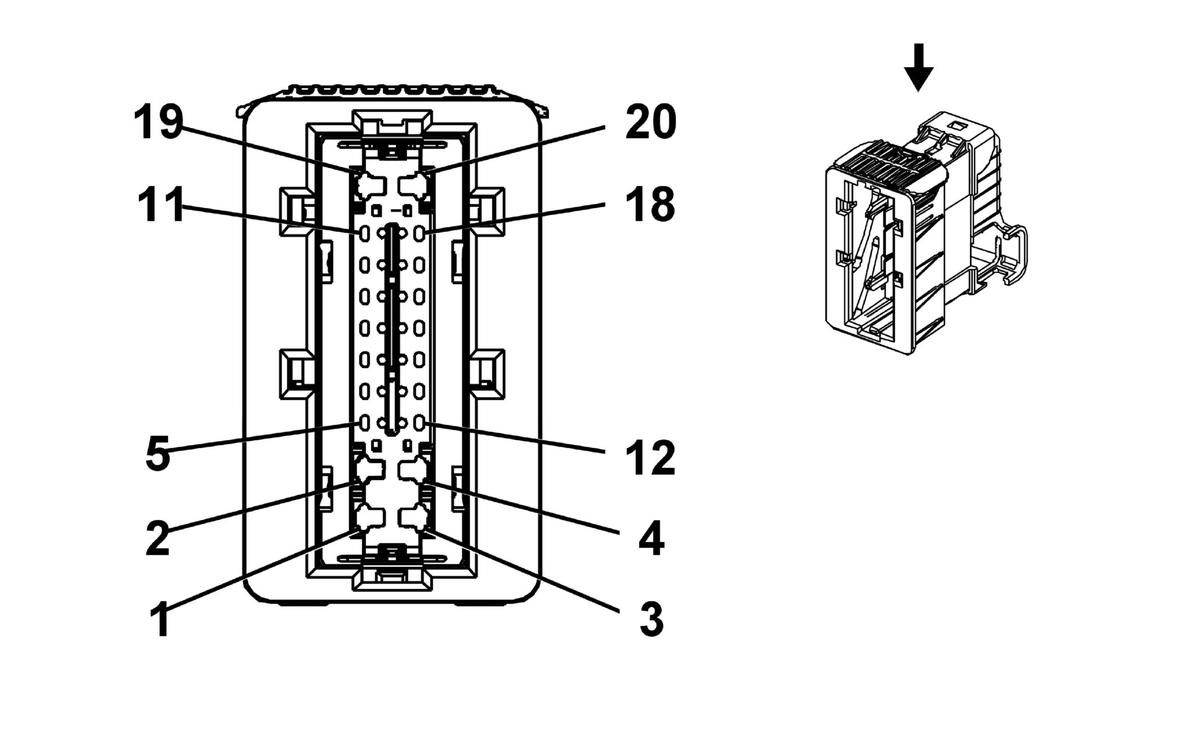

Connector Part Information
- Harness Type: Body
- OEM Connector: 902873-01
- Service Connector: 19300298
- Description: 20-Way F 1.5, 2.8 Series (BK)
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 903095-00
- Service Connector: Service by Harness - See Part Catalog
- Description: 20-Way M 1.6, 2.8 Timer Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13579988 |
J-35616-35 (VT) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13579989 |
J-35616-2A (GY) |
J-38125-560 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13579990 |
J-35616-2A (GY) |
J-38125-560 |
Not Available |
Not Available |
Not Available |
Not Available |
| IV |
13582256 |
J-35616-35 (VT) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| V |
Not Required |
J-35616-3 (GY) |
No Tool Required |
Not Available |
Not Required |
Not Required |
Not Required |
| VI |
Not Required |
J-35616-5 (PU) |
No Tool Required |
Not Available |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD/GY |
2140 |
IV |
- |
Battery Positive Voltage |
1 |
0.5 |
RD/GY |
2140 |
VI |
- |
| 2 |
1.5 |
RD/WH |
2040 |
I |
- |
Battery Positive Voltage |
2 |
1.5 |
RD/WH |
2040 |
VI |
- |
| 3 |
2.5 |
BK |
850 |
I |
- |
Ground |
3 |
2.5 |
BK |
850 |
VI |
- |
| 4 |
1.5 |
RD/YE |
3740 |
I |
- |
Battery Positive Voltage |
4 |
1.5 |
RD/YE |
3740 |
VI |
- |
| 5 |
0.35 |
OG/BN |
238 |
II |
- |
Driver Seat Belt Switch Signal |
5 |
0.35 |
OG/BN |
238 |
V |
- |
| 6 |
0.5 |
GN/WH |
7530 |
II |
KA1-AAG |
Local Interconnect Network Serial Data Bus 8 |
6 |
0.35 |
GN/WH |
7530 |
V |
KA1-AAG |
| 7 |
0.35 |
BK/OG |
1363 |
II |
- |
Driver Seat Belt Switch Low Reference |
7 |
0.35 |
BK/OG |
1363 |
V |
- |
| 8 |
0.35 |
OG/BU |
3068 |
III |
- |
Driver Side Impact Module High Control |
8 |
0.5 |
OG/BU |
3068 |
V |
- |
| 9 |
0.35 |
GN/OG |
3069 |
III |
- |
Driver Side Impact Module Low Control |
9 |
0.5 |
GN/OG |
3069 |
V |
- |
| 10 |
- |
- |
- |
- |
- |
Not Occupied |
10 |
- |
- |
- |
- |
- |
| 11 |
0.35 |
BK/GY |
2435 |
II |
- |
Passenger Heated Seat NTC Low Reference |
11 |
0.5 |
BK/GY |
2435 |
V |
- |
| 12 |
0.35 |
GN |
5060 |
II |
- |
Low Speed GMLAN Serial Data |
12 |
0.5 |
GN |
5060 |
V |
- |
| 13 |
0.35 |
YE/OG |
3065 |
III |
- |
Driver Seat Belt Buckle Pretensioner Low Control |
13 |
0.5 |
YE/OG |
3065 |
V |
- |
| 14 |
0.35 |
OG/WH |
3064 |
III |
- |
Driver Seat Belt Buckle Pretensioner High Control |
14 |
0.5 |
OG/WH |
3064 |
V |
- |
| 15 - 17 |
- |
- |
- |
- |
- |
Not Occupied |
15 - 17 |
- |
- |
- |
- |
- |
| 18 |
0.35 |
WH/GY |
2434 |
II |
- |
Passenger Heated Seat NTC Signal |
18 |
0.5 |
WH/GY |
2434 |
V |
- |
| 19 |
1.5 |
BN/BU |
2479 |
I |
- |
Passenger Heated Seat Element Control |
19 |
1 |
BN/BU |
2479 |
VI |
- |
| 20 |
1.5 |
BU/BK |
2433 |
I |
- |
Passenger Heated Back Element Low Reference |
20 |
1 |
BU/BK |
2433 |
VI |
- |
