X206 Instrument Panel Harness to Body Harness

WARNING: This page is about a different car, the 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

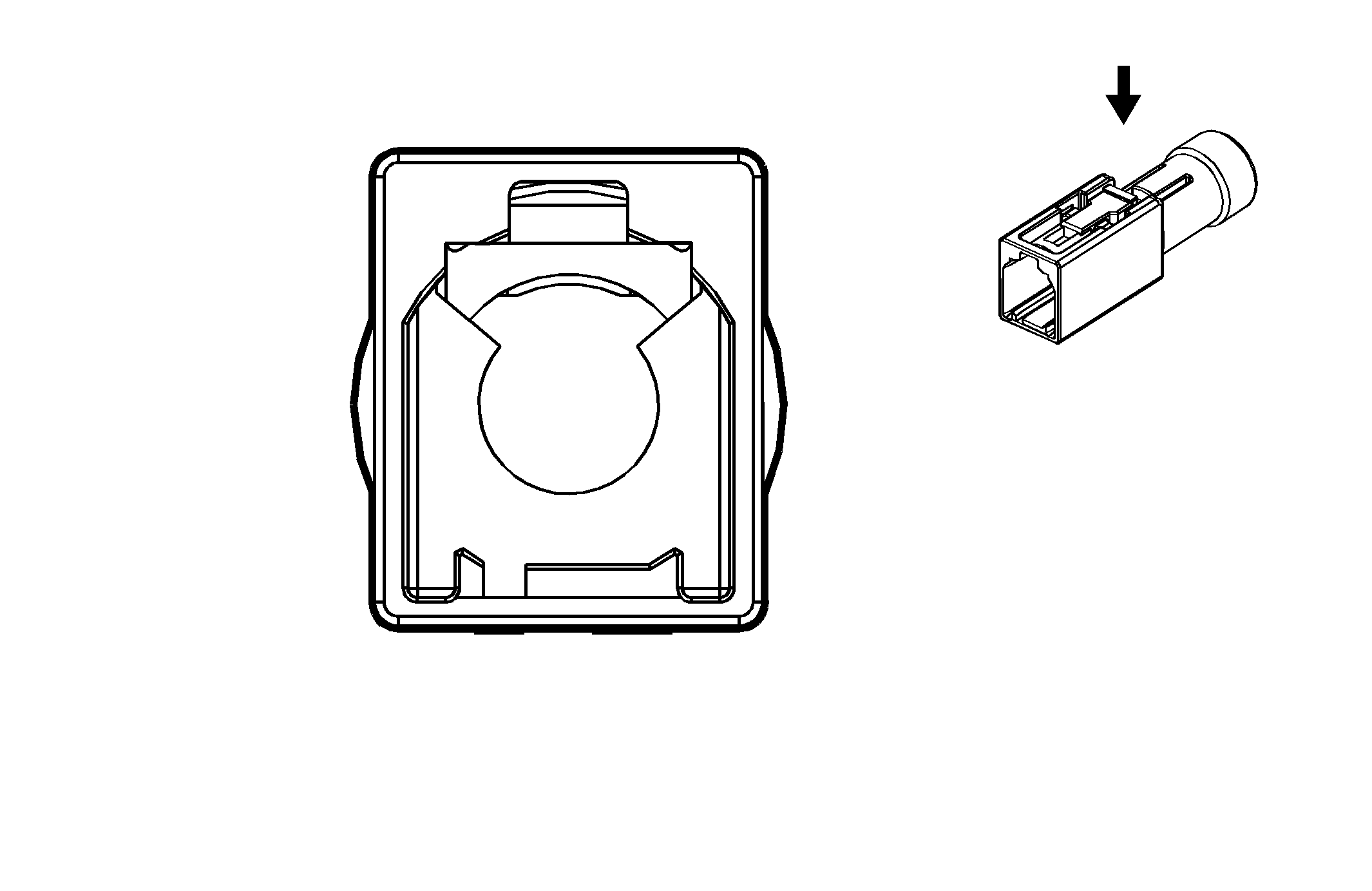

GM2791484
GM2791479
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 1897373-2
  • Service Connector: Service by Cable Assembly - See Part Catalog
  • Description: 1-Way F Coax Type
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 1897374-2
  • Service Connector: Service by Cable Assembly - See Part Catalog
  • Description: 1-Way M Coax Type
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I Not Available Not Available Not Available Not Available Not Available Not Available Not Available
II Not Available Not Available Not Available Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
- - Coax - I - Coax - - Coax - II -


GM2791484
GM2791479
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 1897373-2
  • Service Connector: Service by Cable Assembly - See Part Catalog
  • Description: 1-Way F Coax Type
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 1897374-2
  • Service Connector: Service by Cable Assembly - See Part Catalog
  • Description: 1-Way M Coax Type
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I Not Available Not Available Not Available Not Available Not Available Not Available Not Available
II Not Available Not Available Not Available Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
- - Coax - I - Coax - - Coax - II -
