Different car
>>
Section 30 (Data Communication System)
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics (Encore)
>>
Power, Ground, and Low Speed GMLAN (Encore)
Power, Ground, and Low Speed GMLAN (Encore)
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

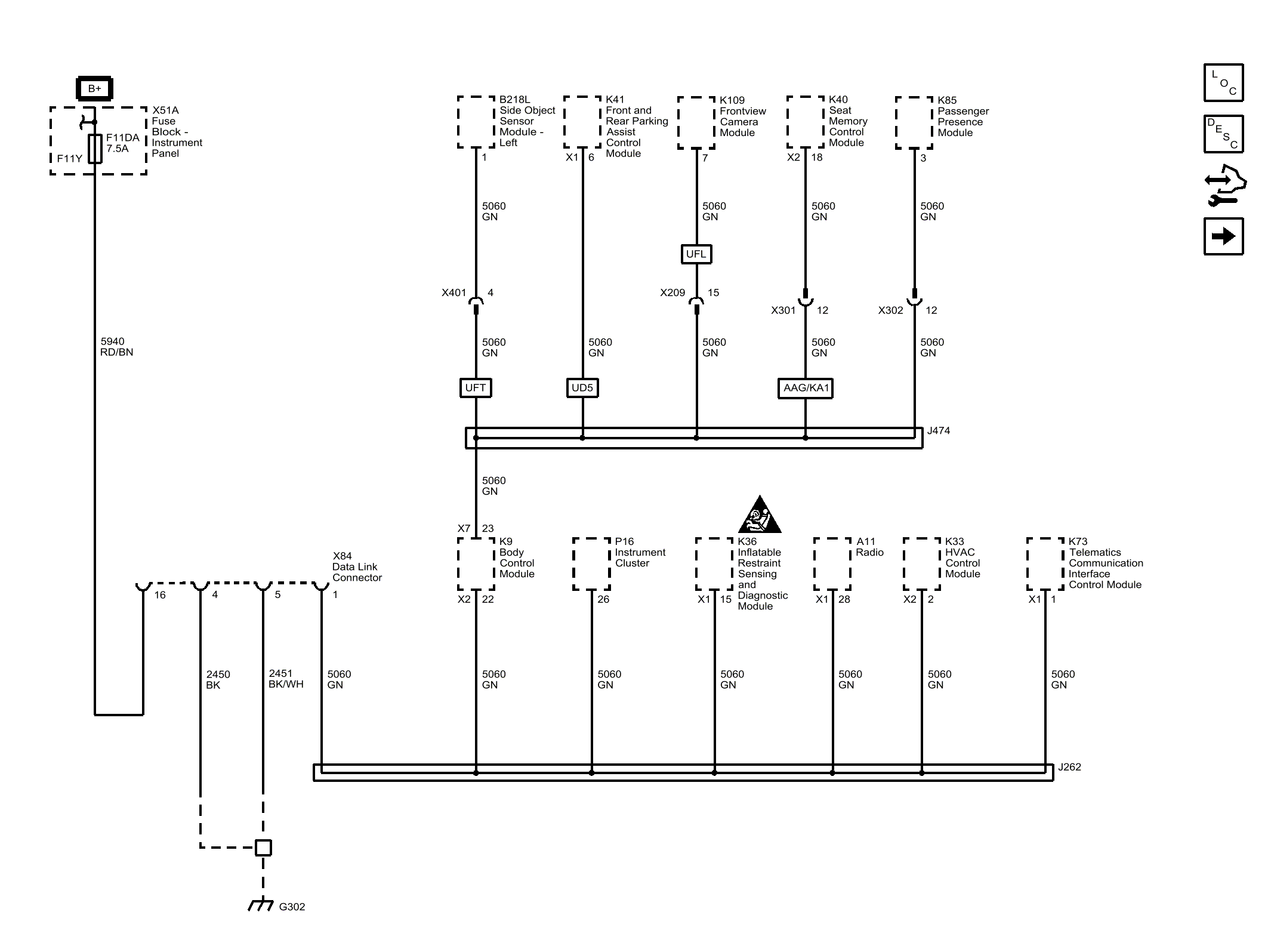

Fig 1: Power, Ground, and Low Speed GMLAN (Encore)
Courtesy of GENERAL MOTORS COMPANY
