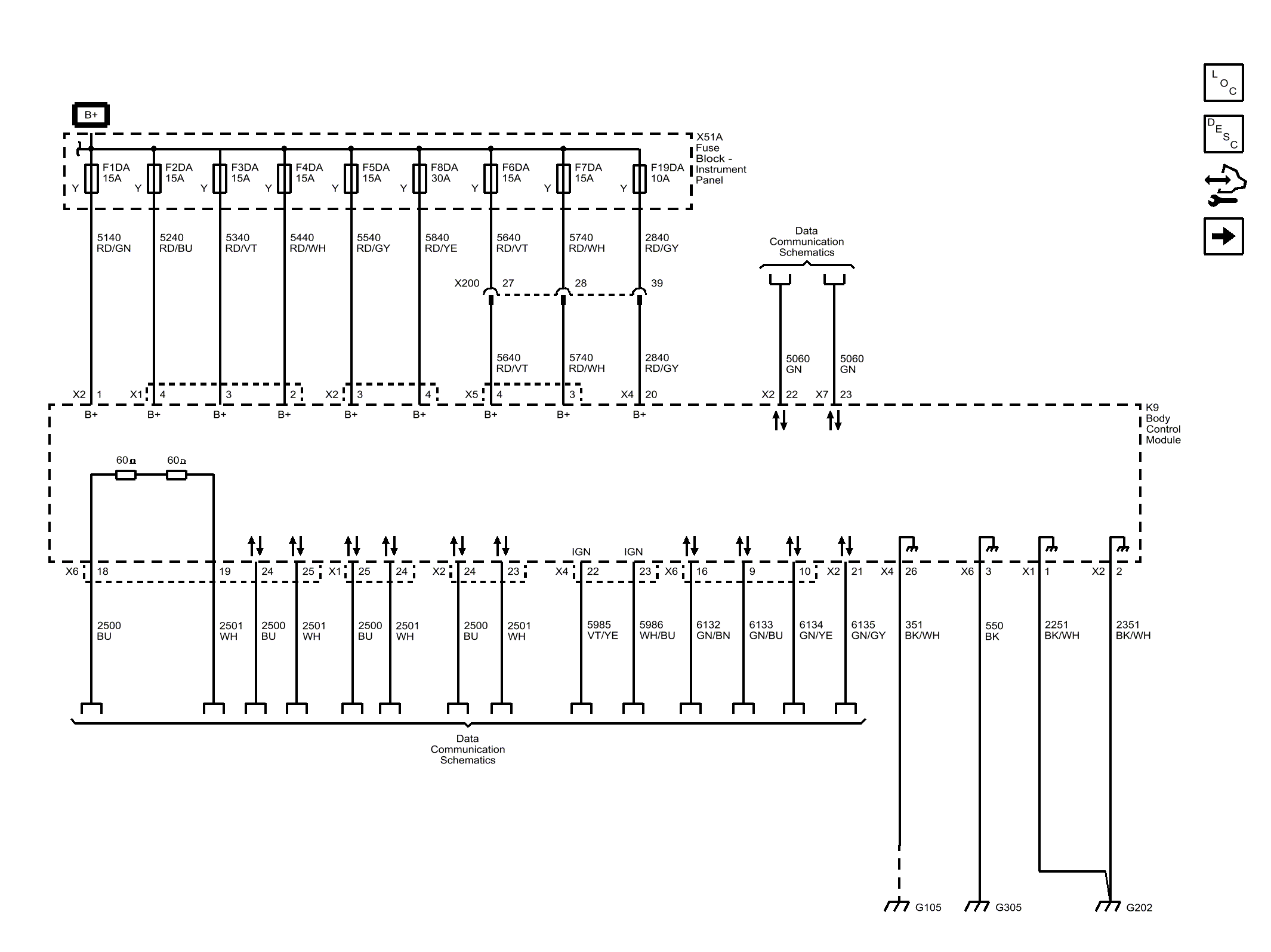

Power, Ground, Data Communication, and Subsystem References (Encore, 1 of 4)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
