Heater and Air Conditioning Control with Cable Control Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

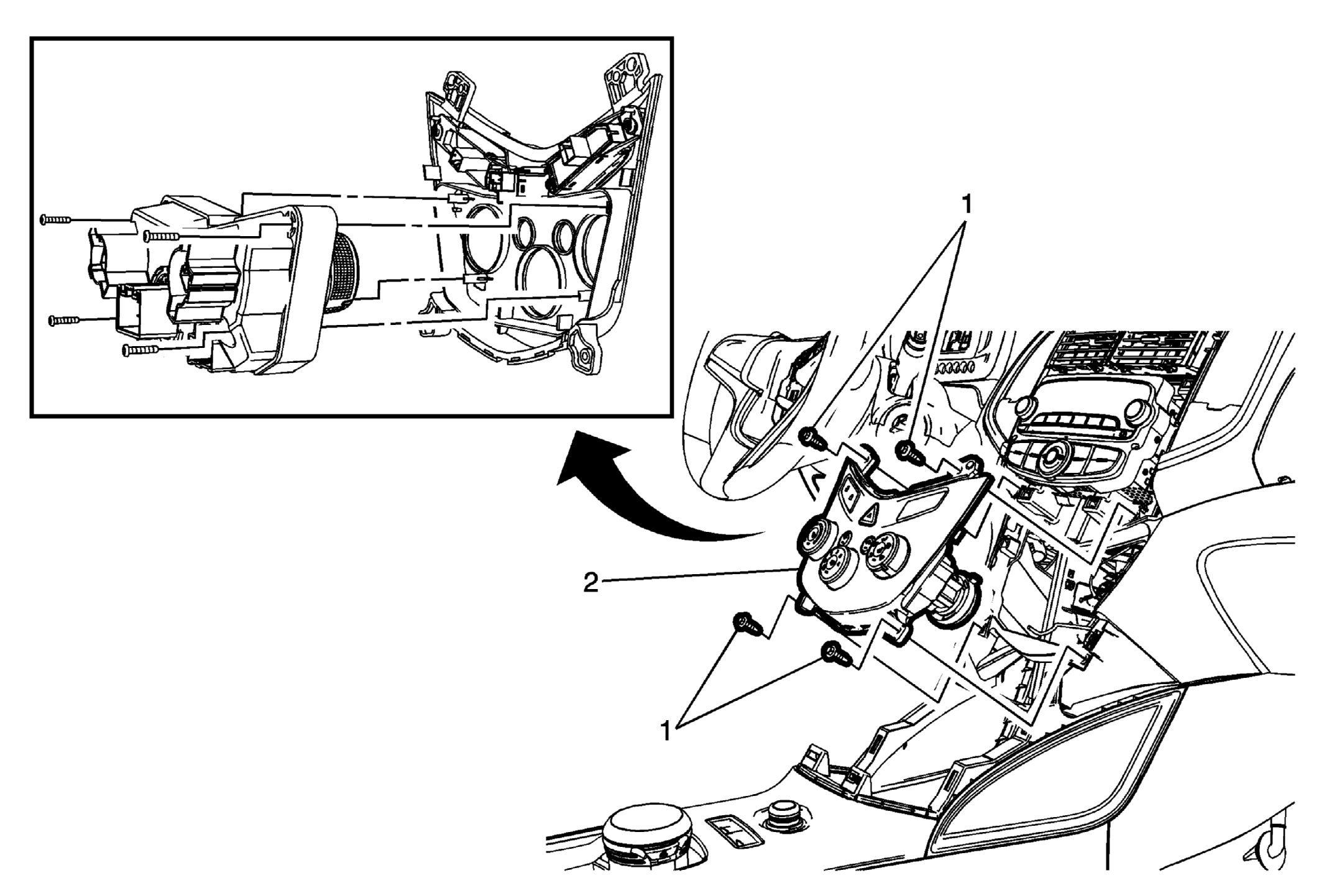

Fig 1: Heater and Air Conditioning Control
GM2493462Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement (Trax)Instrument Panel Trim Plate Replacement (Encore) .
  2. Remove instrument panel lower center trim plate applique. Refer to Instrument Panel Lower Center Trim Plate Applique Replacement (Trax)Instrument Panel Lower Center Trim Plate Applique Replacement (Encore) .
1 Heater and Air Conditioning Control Retainer (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Heater and Air Conditioning Control

Procedure

  1. Disconnect the electrical connectors.
  2. Disconnect the heater and air conditioning temperature control cable. Refer to Temperature Control Cable Replacement (C60) .
  3. Disconnect the mode control cable. Refer to Mode Control Cable Replacement (C60) .
  4. Transfer the heater and air conditioning control bezel.
