Inside Air Moisture and Windshield Temperature Sensor Replacement (With CJ2)

WARNING: This page is about a different car, the 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

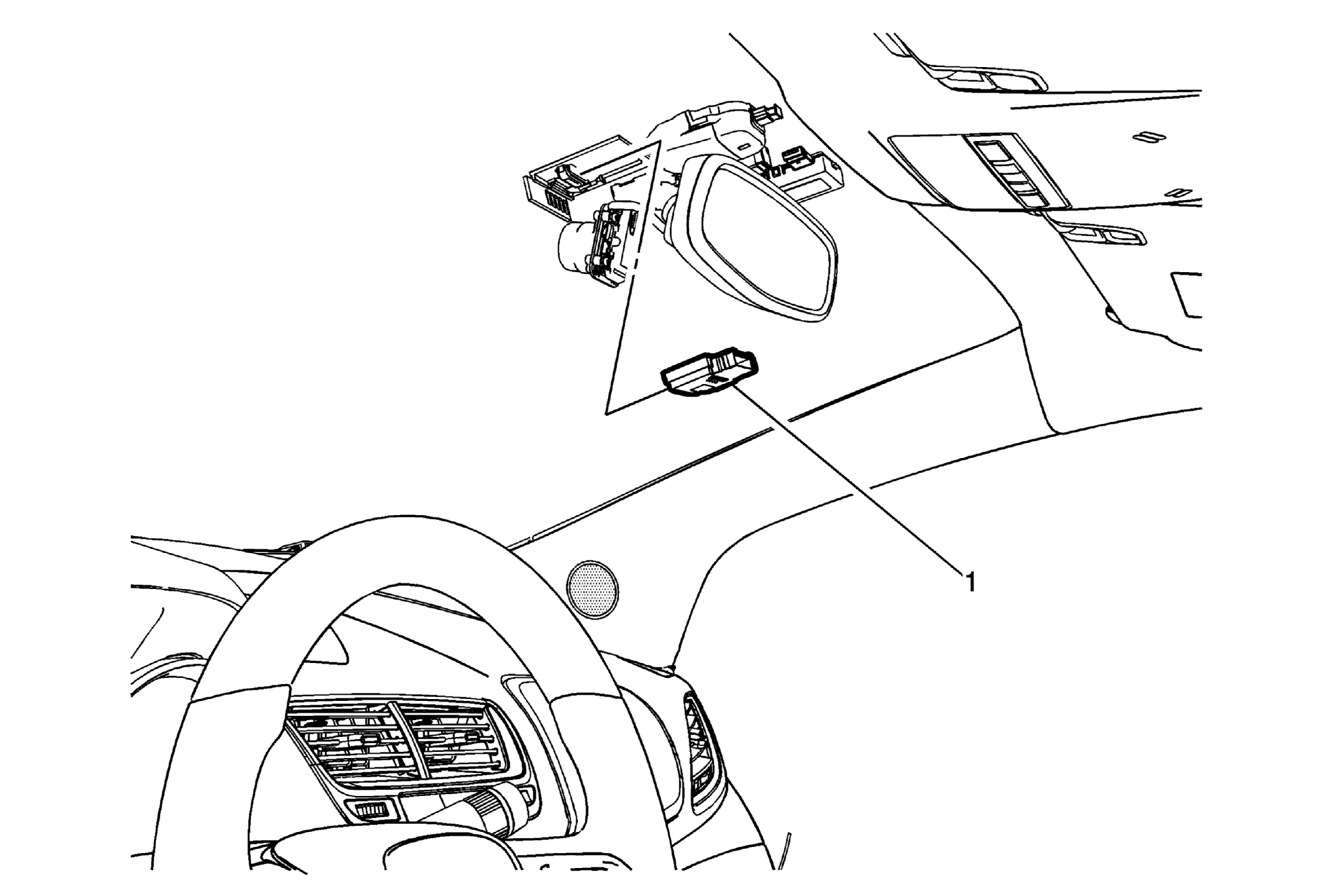

Fig 1: Inside Air Moisture And Windshield Temperature Sensor (With CJ2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield outside moisture sensor cover. Refer to Windshield Outside Moisture Sensor Cover Replacement (Encore)Windshield Outside Moisture Sensor Cover Replacement (Trax)
1	Inside Air Moisture And Windshield Temperature Sensor Procedures Pull down and slide the inside air moisture and windshield temperature sensor, from the inside air moisture and windshield temperature sensor mounting bracket. Disconnect the inside air moisture and windshield temperature sensor connector.

Callout

Component Name

Preliminary Procedure
Remove the windshield outside moisture sensor cover. Refer to Windshield Outside Moisture Sensor Cover Replacement (Encore)Windshield Outside Moisture Sensor Cover Replacement (Trax)

Inside Air Moisture And Windshield Temperature Sensor

Procedures

Pull down and slide the inside air moisture and windshield temperature sensor, from the inside air moisture and windshield temperature sensor mounting bracket.
Disconnect the inside air moisture and windshield temperature sensor connector.
