Driver Door Harness Routing (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

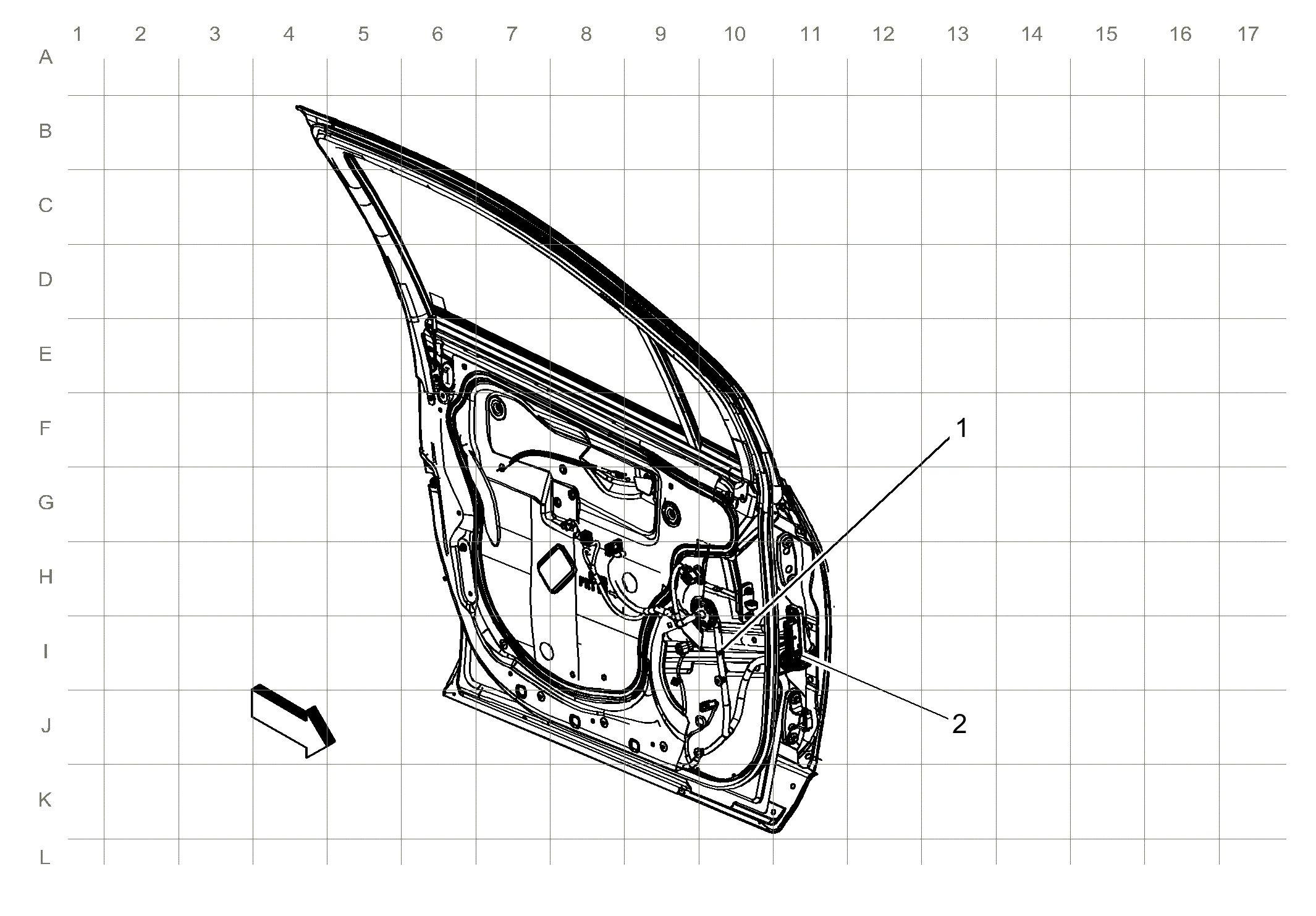

Fig 1: Driver Door Harness Routing (Trax)
GM4215809Courtesy of GENERAL MOTORS COMPANY
Items
1:J507
2:X500 X500 Driver Door Harness to Body Harness
