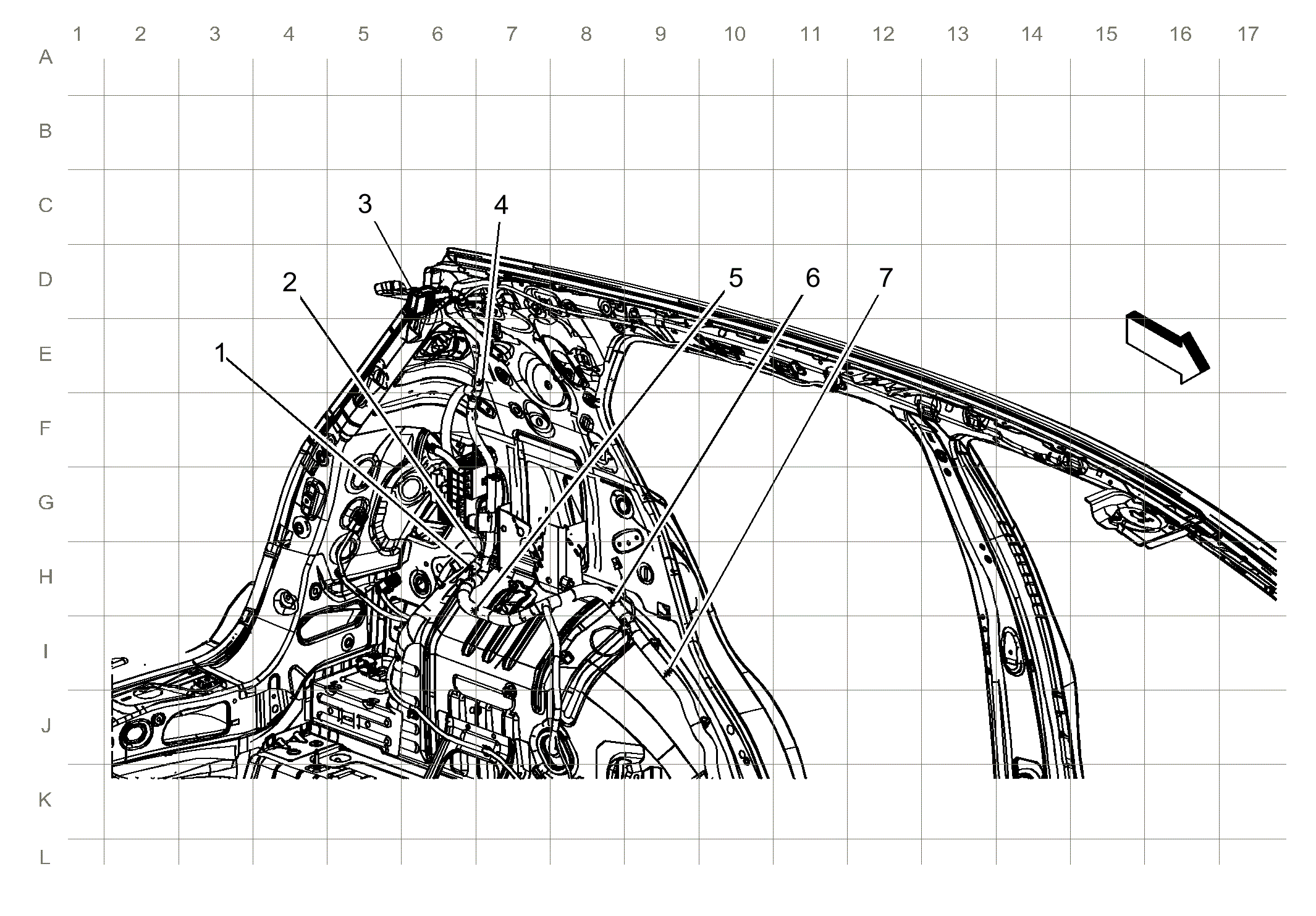

Body Harness Routing - Left Rear of Passenger Compartment (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1:J335 |
| 2:J450 |
| 3:X900 X900 Liftgate Harness to Body Harness |
| 4:J405 |
| 5:J446 |
| 6:J313 |
| 7:J474 |
