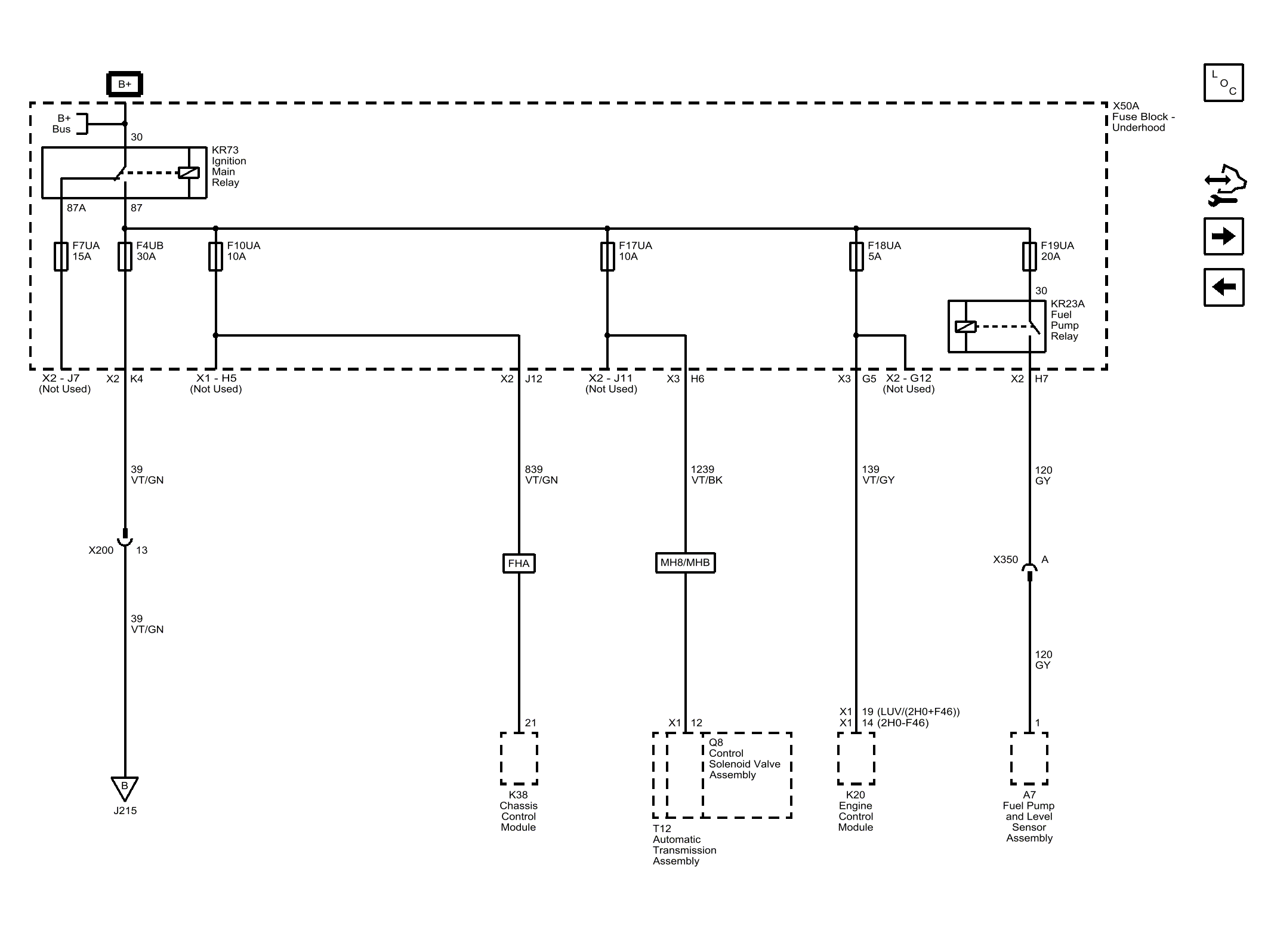

F4UB, F7UA, F10UA, F17UA, F18UA, and F19UA (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| CAV_30 | 30 |
| CAV_87 | 87 |
| CAV_87A | 87A |
| CAV_30 | 30 |
| 139 | Run/Crank Ignition 1 Voltage |
| 139_VT/GY | 139 VT/GY |
| CAV_G5 | G5 |
| CONN_X3 | X3 |
| 1239 | Run/Crank Ignition 1 Voltage |
| 1239_VT/BK | 1239 VT/BK |
| CAV_12 | 12 |
| CONN_X1 | X1 |
| CAV_H6 | H6 |
| CONN_X3 | X3 |
| 839 | Run/Crank Ignition 1 Voltage |
| 839_VT/GN | 839 VT/GN |
| CAV_21 | 21 |
| CAV_J12 | J12 |
| CONN_X2 | X2 |
| FHA | FUEL SYSTEM-ELECTRONIC, RETURNLESS (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| 39 | Run/Crank Ignition 1 Voltage |
| 39_VT/GN | 39 VT/GN |
| CAV_K4 | K4 |
| CONN_X2 | X2 |
| 39_VT/GN | 39 VT/GN |
| CAV_13 | 13 |
| MH8 | TRANSMISSION-AUTO 6 SPD, HMD, X23F (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| MHB | TRANSMISSION-AUTO 6 SPD, GMDAT, AWD (X23F) (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| 120 | Fuel Pump Supply Voltage |
| 120_GY | 120 GY |
| 120_GY | 120 GY |
| CAV_1 | 1 |
| CAV_H7 | H7 |
| CONN_X2 | X2 |
| CAV_A | A |
| CAV_14 | 14 |
| CONN_X1 | X1 |
| CAV_19 | 19 |
| CONN_X1 | X1 |
| 2H0 | ENGINE-GAS, 4 CYL, 1.8L, MFI, 103KW, DOHC (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| F46 | CHASSIS DRIVE LINE-ALL WHEEL DRIVE (AWD), FULL TIME (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| LUV | ENGINE-GAS, 4 CYL, 1.4L, MFI, DOHC, TURBO, VVT, ALUM, GME, E85 MAX (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| 2H0 | ENGINE-GAS, 4 CYL, 1.8L, MFI, 103KW, DOHC (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| F46 | CHASSIS DRIVE LINE-ALL WHEEL DRIVE (AWD), FULL TIME (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| B_REF | B |
| F7UA | F7UA 15A |
| F4UB | F4UB 30A |
| F10UA | F10UA 10A |
| F17UA | F17UA 10A |
| F18UA | F18UA 5A |
| F19UA | F19UA 20A |
| X200 | X200 |
| X350 | X350 |
| KR23A | KR23A Fuel Pump Relay |
| K20 | K20 Engine Control Module |
| X50A | X50A Fuse Block - Underhood |
| Q8 | Q8 Control Solenoid Valve Assembly (MH8/MHB) |
| KR73 | KR73 Ignition Main Relay |
| T12 | T12 Automatic Transmission Assembly (MH9) |
| A7 | A7 Fuel Pump and Level Sensor Assembly |
| K38 | K38 Chassis Control Module (FHA) |
