F11RA, F12RA, F13RA, F14RA, F15RA, F16RA, F17RA, F18RA, F5RB, F6RB, F7RB, F8RB, and F9RB (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

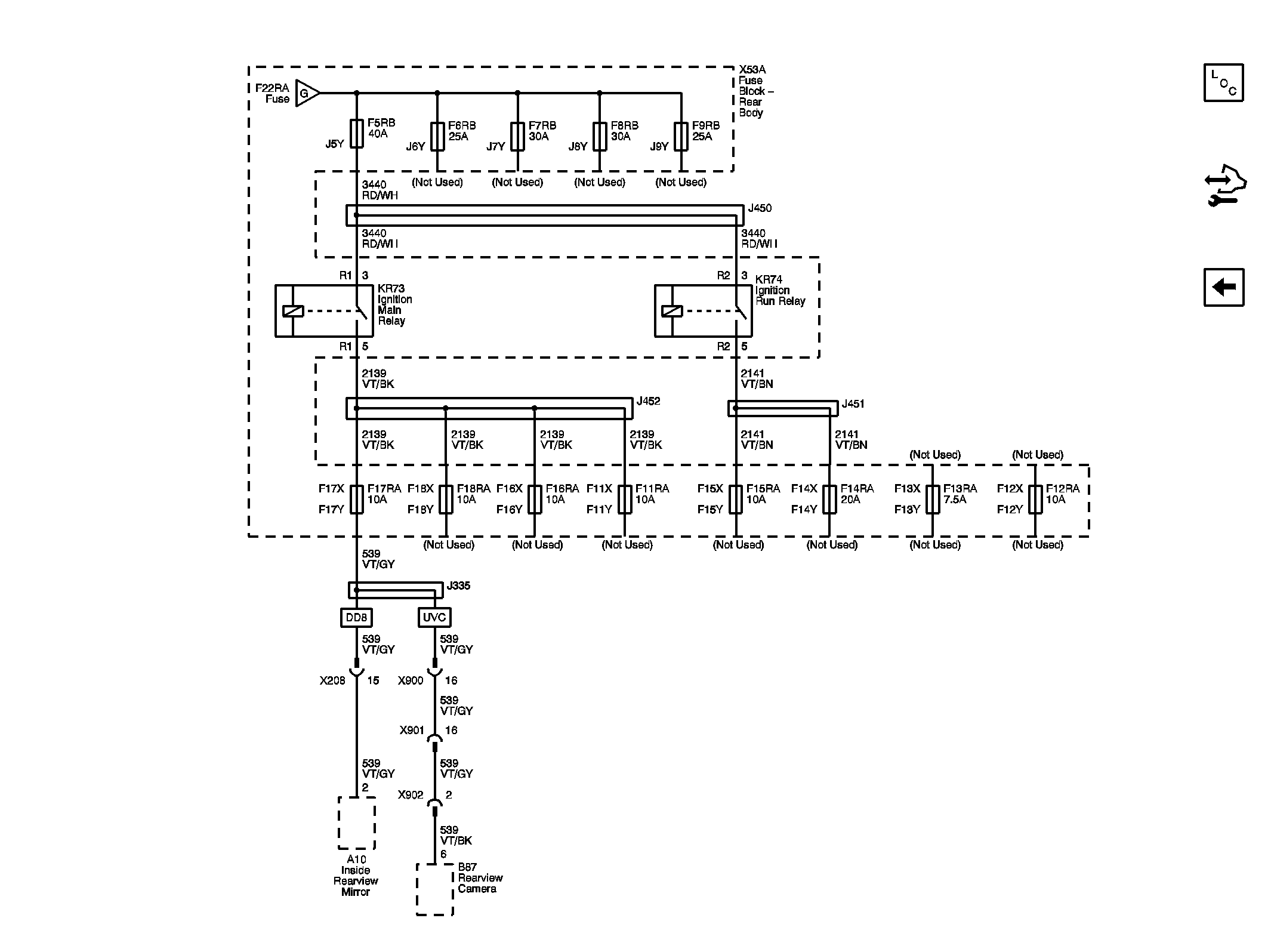

Fig 1: F11RA, F12RA, F13RA, F14RA, F15RA, F16RA, F17RA, F18RA, F5RB, F6RB, F7RB, F8RB, and F9RB (Trax)
| Callout | Component Name |
|---|---|
| 3440 | Battery Positive Voltage |
| 3440_RD/WH | 3440 RD/WH |
| 3440_RD/WH | 3440 RD/WH |
| CAV_J5Y | J5Y |
| 2141 | Run Ignition 3 Voltage |
| 2141_VT/BN | 2141 VT/BN |
| CAV_F15X | F15X |
| CAV_F15Y | F15Y |
| 2139 | Run/Crank Ignition 1 Voltage |
| 2139_VT/BK | 2139 VT/BK |
| CAV_F17X | F17X |
| CAV_F17Y | F17Y |
| 539 | Run/Crank Ignition 1 Voltage |
| 539_VT/GY | 539 VT/GY |
| CAV_2 | 2 |
| 539_VT/GY | 539 VT/GY |
| 539_VT/GY | 539 VT/GY |
| CAV_15 | 15 |
| 539_VT/GY | 539 VT/GY |
| CAV_6 | 6 |
| 539_VT/GY | 539 VT/GY |
| 539_VT/GY | 539 VT/GY |
| 539_VT/BK | 539 VT/BK |
| CAV_16 | 16 |
| CAV_16 | 16 |
| CAV_2 | 2 |
| UVC | VISION-REAR VIEW, MONO (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| CAV_J9Y | J9Y |
| CAV_J8Y | J8Y |
| CAV_J7Y | J7Y |
| CAV_J6Y | J6Y |
| CAV_3 | 3 |
| CONN_R2 | R2 |
| CAV_5 | 5 |
| CONN_R2 | R2 |
| CAV_3 | 3 |
| CONN_R1 | R1 |
| CAV_5 | 5 |
| CONN_R1 | R1 |
| DD8 | MIRROR I/S R/V-LT SENSITIVE (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| CAV_F18X | F18X |
| CAV_F18Y | F18Y |
| CAV_F16X | F16X |
| CAV_F16Y | F16Y |
| CAV_F11X | F11X |
| CAV_F11Y | F11Y |
| 2139_VT/BK | 2139 VT/BK |
| 2139_VT/BK | 2139 VT/BK |
| 2139_VT/BK | 2139 VT/BK |
| 3440_RD/WH | 3440 RD/WH |
| CAV_F14X | F14X |
| CAV_F14Y | F14Y |
| CAV_F13X | F13X |
| CAV_F13Y | F13Y |
| CAV_F12X | F12X |
| CAV_F12Y | F12Y |
| 2141_VT/BN | 2141 VT/BN |
| 2141_VT/BN | 2141 VT/BN |
| 2139_VT/BK | 2139 VT/BK |
| G_REF | G |
| F5RB | F5RB 40A |
| F15RA | F15RA 10A |
| F17RA | F17RA 10A |
| X208 | X208 |
| X900 | X900 |
| X901 | X901 |
| X902 | X902 |
| F6RB | F6RB 25A |
| F7RB | F7RB 30A |
| F8RB | F8RB 30A |
| F9RB | F9RB 25A |
| F18RA | F18RA 10A |
| F16RA | F16RA 10A |
| F11RA | F11RA 10A |
| F14RA | F14RA 20A |
| F13RA | F13RA 7.5A |
| F12RA | F12RA 10A |
| J335 | J335 |
| J451 | J451 |
| J450 | J450 |
| J452 | J452 |
| X53A | X53A Fuse Block - Rear Body |
| A10 | A10 Inside Rearview Mirror (DD8/UE1) |
| B87 | B87 Rearview Camera (UVC) |
| KR73 | KR73 Ignition Main Relay |
| KR74 | KR74 Ignition Run Relay |
