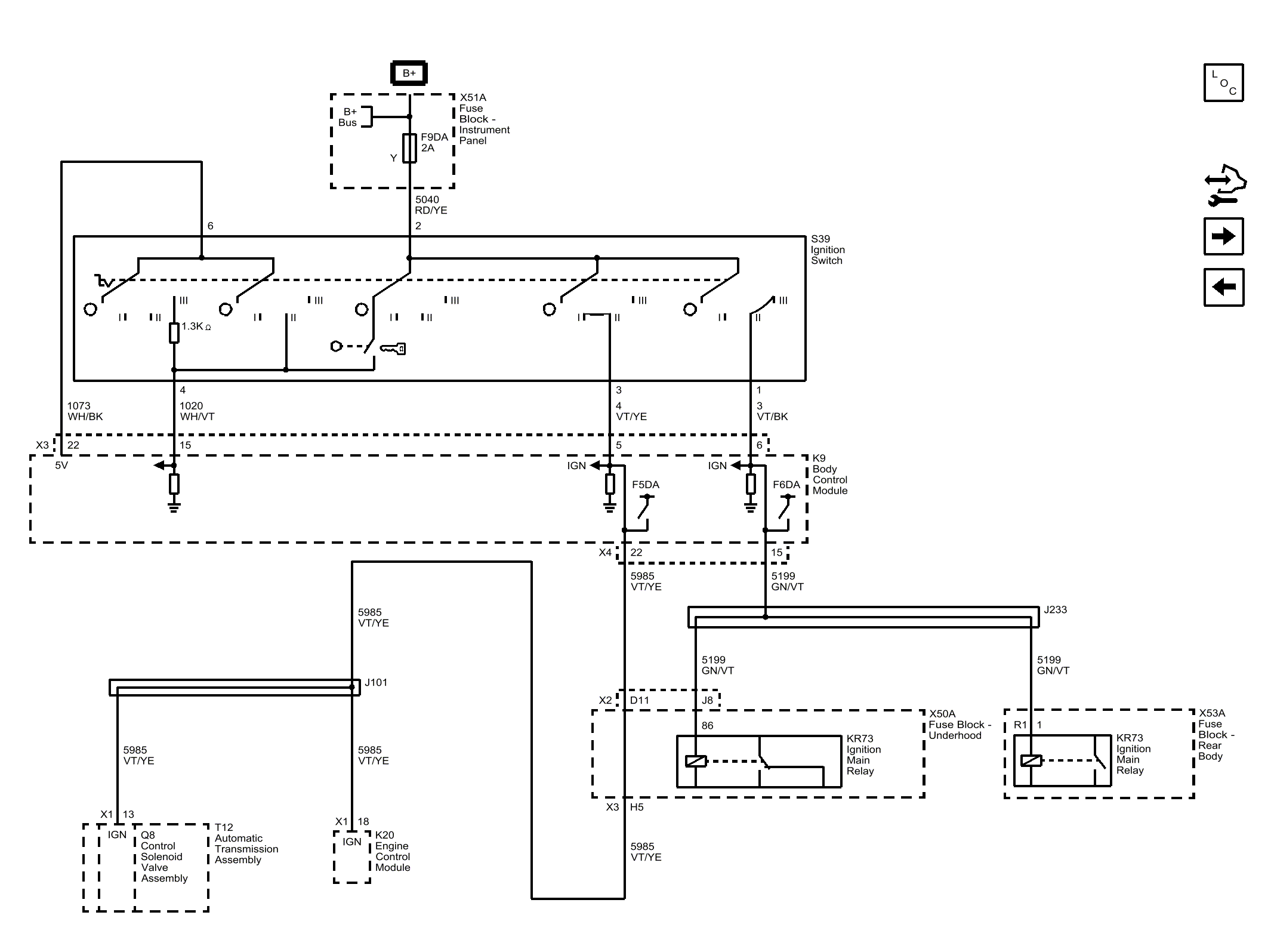

Ignition Switch (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| CAV_Y | Y |
| 5040 | Battery Positive Voltage |
| 5040_RD/YE | 5040 RD/YE |
| CAV_2 | 2 |
| 1073 | Ignition Key Resistor Signal |
| 1073_WH/BK | 1073 WH/BK |
| CAV_22 | 22 |
| CONN_X3 | X3 |
| CAV_6 | 6 |
| 1020 | Off/Run/Crank Voltage |
| 1020_WH/VT | 1020 WH/VT |
| CAV_15 | 15 |
| CAV_4 | 4 |
| 4 | Accessory Voltage |
| 4_VT/YE | 4 VT/YE |
| CAV_5 | 5 |
| CAV_3 | 3 |
| 3 | Run/Crank Ignition 1 Voltage |
| 3_VT/BK | 3 VT/BK |
| CAV_6 | 6 |
| CAV_1 | 1 |
| 5985 | Accessory Wakeup Serial Data |
| 5985_VT/YE | 5985 VT/YE |
| CAV_22 | 22 |
| CONN_X4 | X4 |
| 5199 | Run/Crank Relay Coil Control |
| 5199_GN/VT | 5199 GN/VT |
| CAV_15 | 15 |
| 5199_GN/VT | 5199 GN/VT |
| CAV_J8 | J8 |
| 5199_GN/VT | 5199 GN/VT |
| CAV_86 | 86 |
| 5985_VT/YE | 5985 VT/YE |
| CAV_H5 | H5 |
| CONN_X3 | X3 |
| CAV_18 | 18 |
| CONN_X1 | X1 |
| 5985_VT/YE | 5985 VT/YE |
| CAV_13 | 13 |
| CONN_X1 | X1 |
| CAV_D11 | D11 |
| CONN_X2 | X2 |
| CAV_1 | 1 |
| CONN_R1 | R1 |
| 5985_VT/YE | 5985 VT/YE |
| 5985_VT/YE | 5985 VT/YE |
| F9DA | F9DA 2A |
| J233 | J233 |
| F5DA | F5DA |
| F6DA | F6DA |
| J101 | J101 |
| X50A | X50A Fuse Block - Underhood |
| S39 | S39 Ignition Switch |
| K9 | K9 Body Control Module |
| X51A | X51A Fuse Block - Instrument Panel |
| X53A | X53A Fuse Block - Rear Body |
| KR73 | KR73 Ignition Main Relay |
| T12 | T12 Automatic Transmission Assembly |
| K20 | K20 Engine Control Module |
| Q8 | Q8 Control Solenoid Valve Assembly |
| KR73 | KR73 Ignition Main Relay |
