F3BA, F1DA, F2DA, F3DA, F4DA, F5DA, F6DA, F7DA, F8DA, F9DA, F10DA, F11DA, and F12DA Fuses (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

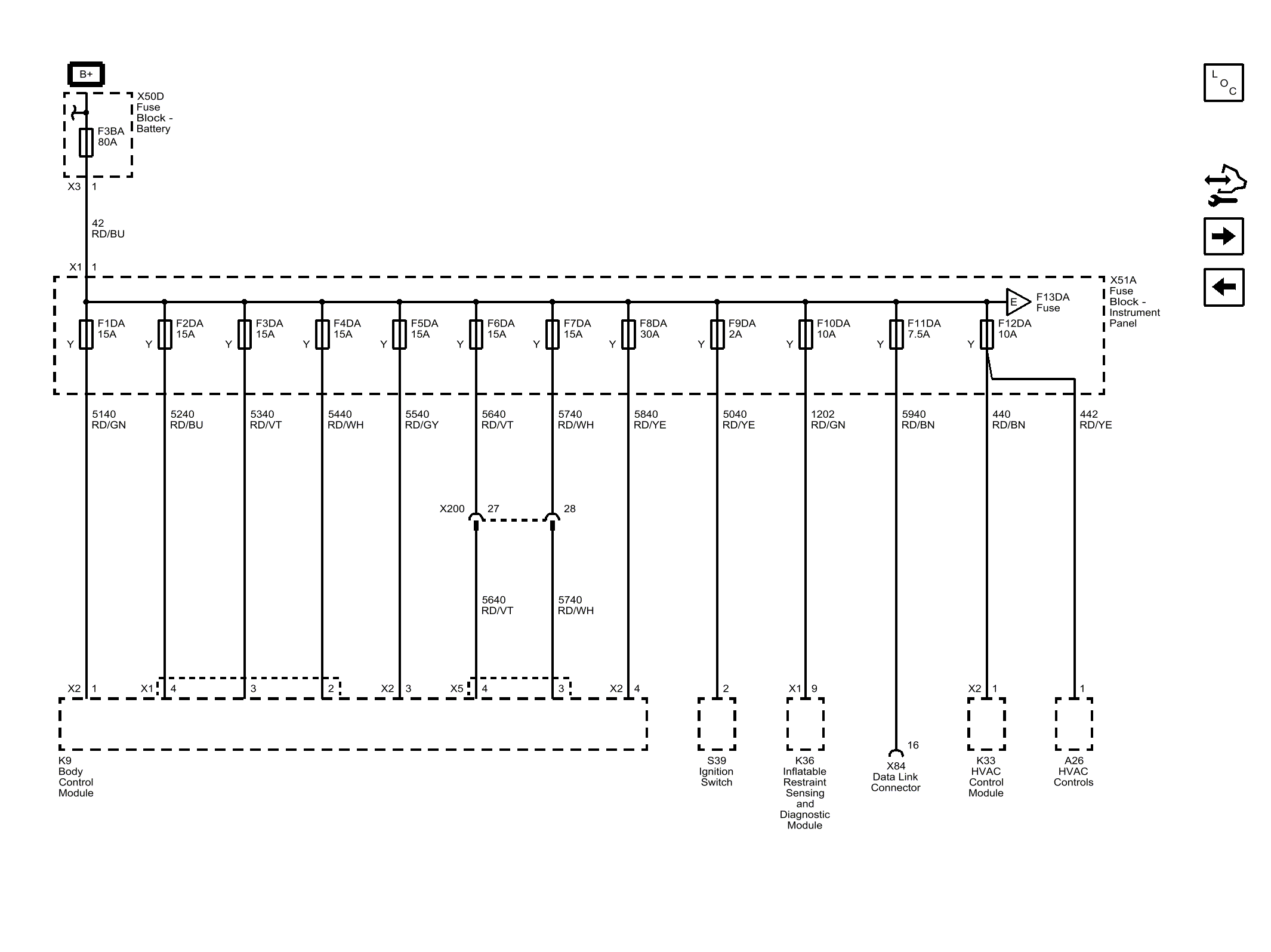

Fig 1: F3BA, F1DA, F2DA, F3DA, F4DA, F5DA, F6DA, F7DA, F8DA, F9DA, F10DA, F11DA, and F12DA Fuses (Encore)
| Callout | Component Name |
|---|---|
| 42 | Battery Positive Voltage |
| 42_RD/BU | 42 RD/BU |
| CAV_1 | 1 |
| CONN_X1 | X1 |
| CAV_1 | 1 |
| CONN_X3 | X3 |
| CAV_Y | Y |
| CAV_Y | Y |
| CAV_Y | Y |
| CAV_Y | Y |
| CAV_Y | Y |
| CAV_Y | Y |
| CAV_Y | Y |
| CAV_Y | Y |
| CAV_Y | Y |
| CAV_Y | Y |
| CAV_Y | Y |
| CAV_Y | Y |
| 5140 | Battery Positive Voltage |
| 5140_RD/GN | 5140 RD/GN |
| CAV_1 | 1 |
| CONN_X2 | X2 |
| 5240 | Battery Positive Voltage |
| 5240_RD/BU | 5240 RD/BU |
| CAV_4 | 4 |
| CONN_X1 | X1 |
| 5340 | Battery Positive Voltage |
| 5340_RD/VT | 5340 RD/VT |
| CAV_3 | 3 |
| 5440 | Battery Positive Voltage |
| 5440_RD/WH | 5440 RD/WH |
| CAV_2 | 2 |
| 5540 | Battery Positive Voltage |
| 5540_RD/GY | 5540 RD/GY |
| CAV_3 | 3 |
| CONN_X2 | X2 |
| 5640 | Battery Positive Voltage |
| 5640_RD/VT | 5640 RD/VT |
| 5640_RD/VT | 5640 RD/VT |
| CAV_4 | 4 |
| CONN_X5 | X5 |
| 5740 | Battery Positive Voltage |
| 5740_RD/WH | 5740 RD/WH |
| CAV_3 | 3 |
| 5740_RD/WH | 5740 RD/WH |
| 5840 | Battery Positive Voltage |
| 5840_RD/YE | 5840 RD/YE |
| CAV_4 | 4 |
| CONN_X2 | X2 |
| 5040 | Battery Positive Voltage |
| 5040_RD/YE | 5040 RD/YE |
| CAV_2 | 2 |
| 1202 | Battery Positive Voltage |
| 1202_RD/GN | 1202 RD/GN |
| CAV_9 | 9 |
| CONN_X1 | X1 |
| 5940 | Battery Positive Voltage |
| 5940_RD/BN | 5940 RD/BN |
| 440 | Battery Positive Voltage |
| 440_RD/BN | 440 RD/BN |
| CAV_1 | 1 |
| CONN_X2 | X2 |
| CAV_16 | 16 |
| 442_RD/YE | 442 RD/YE |
| CAV_1 | 1 |
| 442 | Battery Positive Voltage |
| X200 | X200 |
| CAV_27 | 27 |
| CAV_28 | 28 |
| F3BA | F3BA 80A |
| F1DA | F1DA 15A |
| F2DA | F2DA 15A |
| F3DA | F3DA 15A |
| F4DA | F4DA 15A |
| F5DA | F5DA 15A |
| F6DA | F6DA 15A |
| F7DA | F7DA 15A |
| F8DA | F8DA 30A |
| F9DA | F9DA 2A |
| F10DA | F10DA 10A |
| F11DA | F11DA 7.5A |
| F12DA | F12DA 10A |
| E_REF | E |
| X200 | X200 |
| X51A | X51A Fuse Block - Instrument Panel |
| K9 | K9 Body Control Module |
| K33 | K33 HVAC Control Module |
| K36 | K36 Inflatable Restraint Sensing and Diagnostic Module |
| X50D | X50D Fuse Block - Battery |
| S39 | S39 Ignition Switch |
| X84 | X84 Data Link Connector |
| A26 | A26 HVAC Controls |
