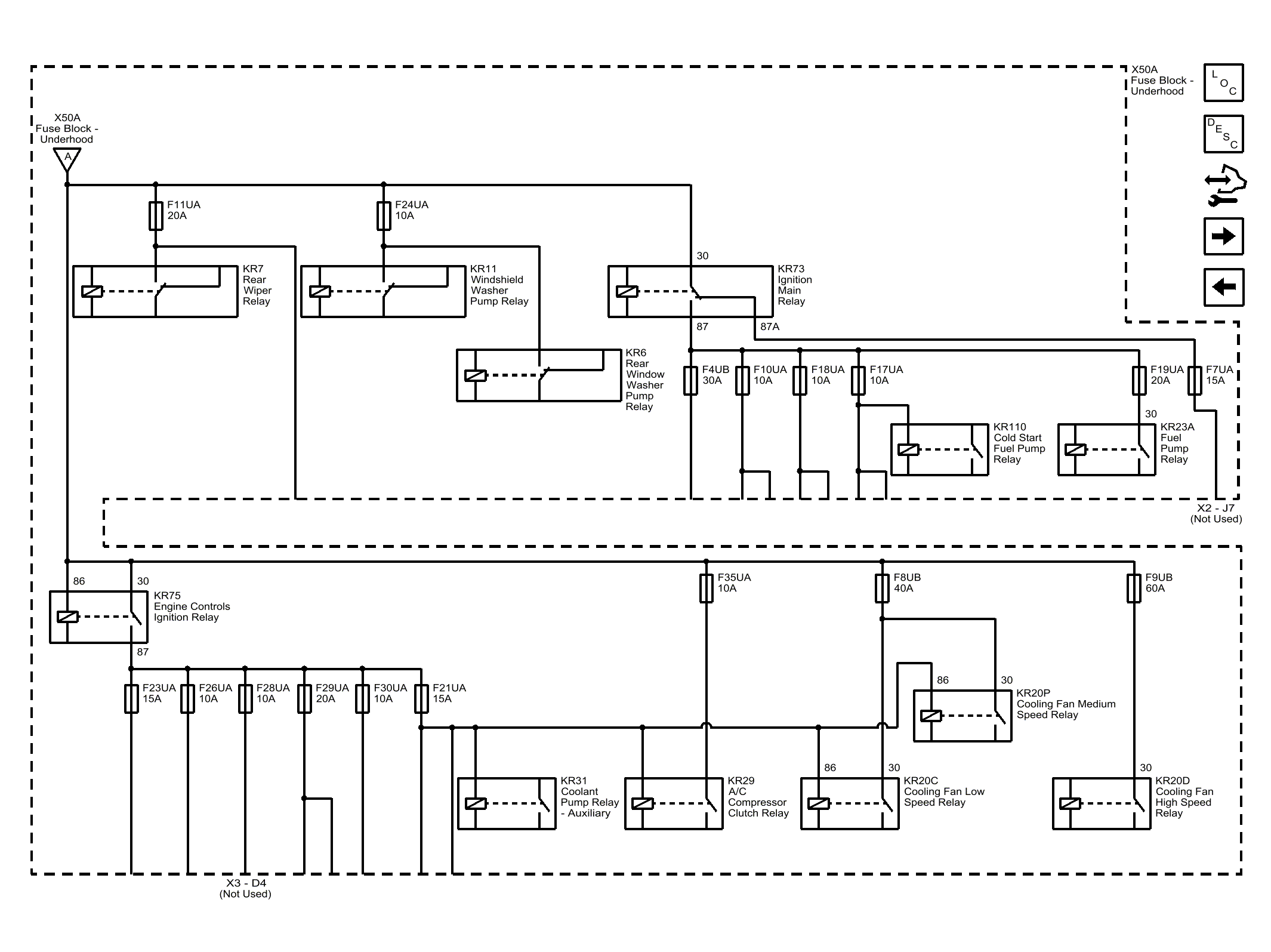

B+ Bus (Encore, 2 of 2)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| CAV_30 | 30 |
| CAV_87 | 87 |
| CAV_87A | 87A |
| CAV_30 | 30 |
| CAV_30 | 30 |
| CAV_30 | 30 |
| CAV_86 | 86 |
| CAV_86 | 86 |
| CAV_30 | 30 |
| F11UA | F11UA 20A |
| F24UA | F24UA 10A |
| F4UB | F4UB 30A |
| F10UA | F10UA 10A |
| F18UA | F18UA 10A |
| F17UA | F17UA 10A |
| F19UA | F19UA 20A |
| F7UA | F7UA 15A |
| F35UA | F35UA 10A |
| F8UB | F8UB 40A |
| F9UB | F9UB 60A |
| F21UA | F21UA 15A |
| F30UA | F30UA 10A |
| F29UA | F29UA 20A |
| F28UA | F28UA 10A |
| F26UA | F26UA 10A |
| F23UA | F23UA 15A |
| A_REF | A |
| X50A | X50A Fuse Block - Underhood |
| KR29 | KR29 A/C Compressor Clutch Relay |
| KR20D | KR20D Cooling Fan High Speed Relay |
| X50A | X50A Fuse Block - Underhood |
| KR75 | KR75 Engine Controls Ignition Relay |
| KR20P | KR20P Cooling Fan Medium Speed Relay |
| KR20C | KR20C Cooling Fan Low Speed Relay |
| KR11 | KR11 Windshield Washer Pump Relay |
| KR6 | KR6 Rear Window Washer Pump Relay |
| KR23A | KR23A Fuel Pump Relay |
| KR7 | KR7 Rear Wiper Relay |
| KR110 | KR110 Cold Start Fuel Pump Relay |
| KR31 | KR31 Coolant Pump Relay - Auxiliary |
| KR73 | KR73 Ignition Main Relay |
