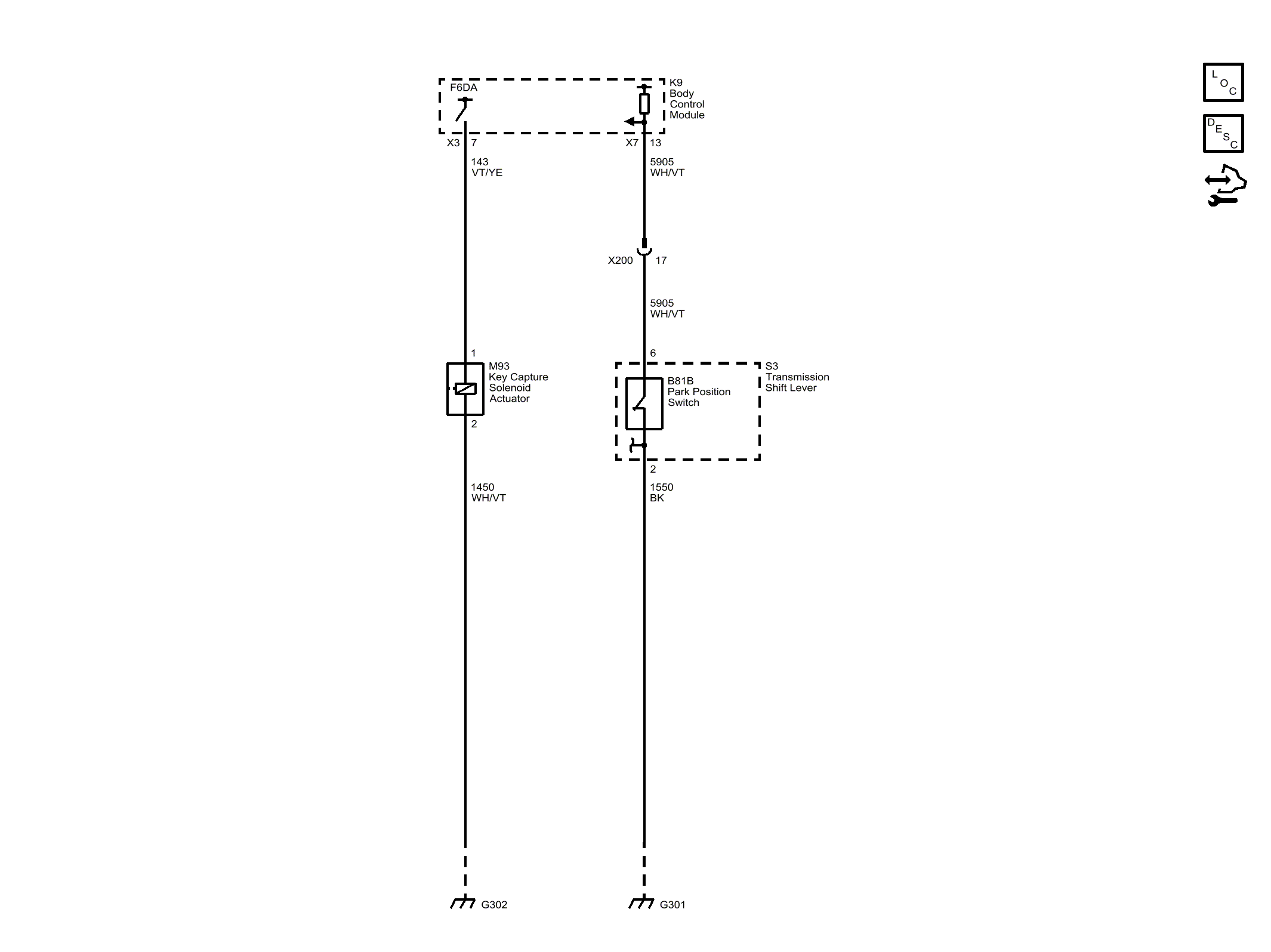

Key Capture (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 143 | Accessory Voltage |
| 143_VT/YE | 143 VT/YE |
| CAV_1 | 1 |
| CAV_7 | 7 |
| CONN_X3 | X3 |
| 5905 | Key Capture/Column Lock Shift Position Signal |
| 5905_WH/VT | 5905 WH/VT |
| CAV_6 | 6 |
| CAV_2 | 2 |
| 1550_BK | 1550 BK |
| CAV_2 | 2 |
| CAV_13 | 13 |
| CONN_X7 | X7 |
| CAV_17 | 17 |
| 5905_WH/VT | 5905 WH/VT |
| 1550 | Ground |
| 1450 | Ground |
| 1450_WH/VT | 1450 WH/VT |
| G302 | G302 |
| F6DA | F6DA |
| X200 | X200 |
| G301 | G301 |
| S3 | S3 Transmission Shift Lever |
| K9 | K9 Body Control Module |
| M93 | M93 Key Capture Solenoid Actuator (M97) |
| B81B | B81B Park Position Switch |
