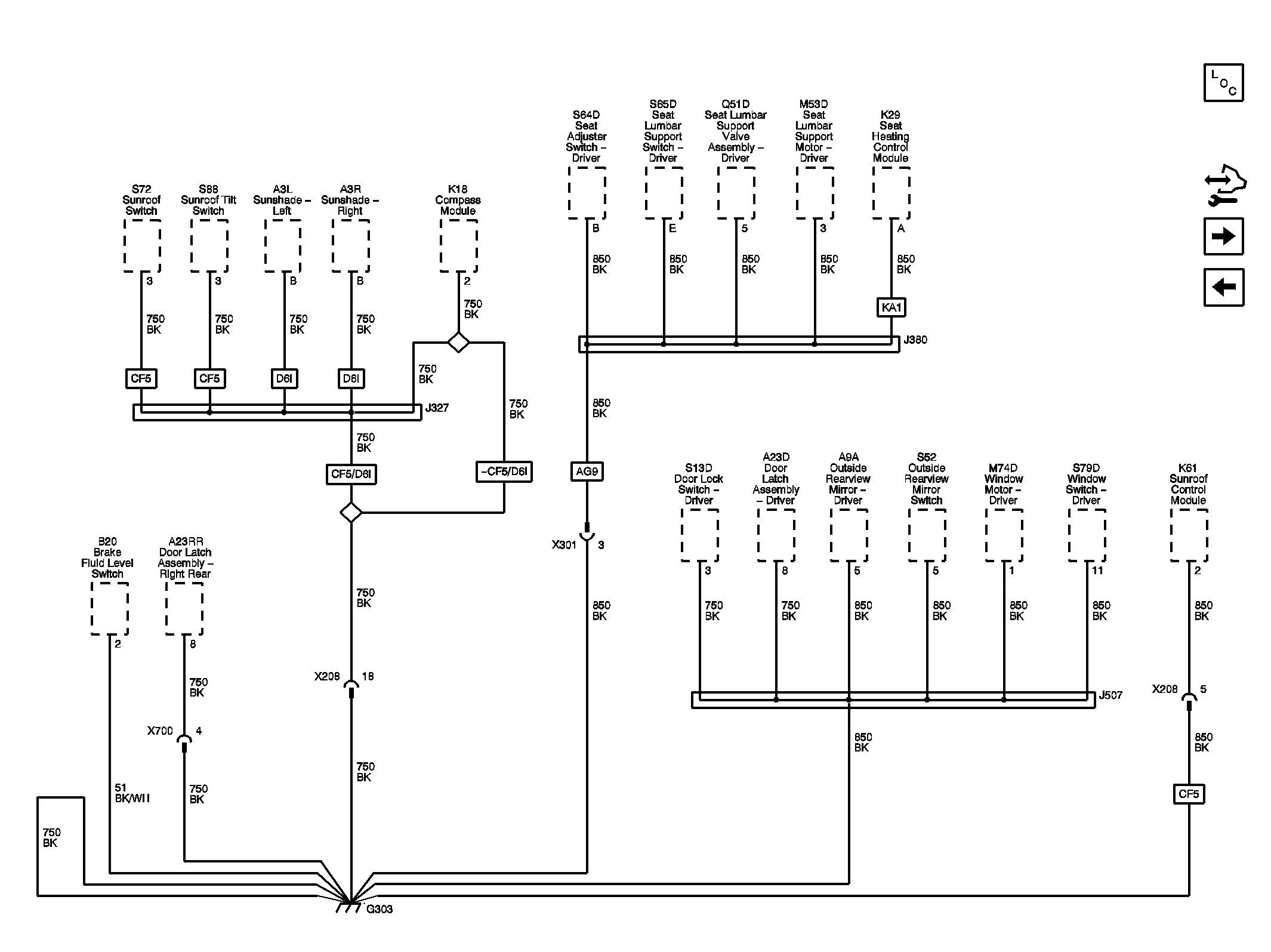

G303 (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 750 | Ground |
| 850 | Ground |
| 51 | Signal Ground |
| 750_BK | 750 BK |
| 750_BK | 750 BK |
| 750_BK | 750 BK |
| CAV_8 | 8 |
| 51_BK/WH | 51 BK/WH |
| CAV_2 | 2 |
| CAV_4 | 4 |
| 750_BK | 750 BK |
| 750_BK | 750 BK |
| 750_BK | 750 BK |
| 750_BK | 750 BK |
| 750_BK | 750 BK |
| CAV_3 | 3 |
| CAV_3 | 3 |
| CAV_B | B |
| CAV_B | B |
| CAV_2 | 2 |
| CF5 | ROOF-SUN, GLASS, SLIDING, ELEC (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| CF5 | ROOF-SUN, GLASS, SLIDING, ELEC (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| D6I | MIRROR I/S FRT VAN-SUNSHADE, DRIVER, W/MIRROR, COVER, ILLUM, PASS, W/MIRROR, COVER, ILLUM (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| 750_BK | 750 BK |
| CF5 | ROOF-SUN, GLASS, SLIDING, ELEC (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| D6I | MIRROR I/S FRT VAN-SUNSHADE, DRIVER, W/MIRROR, COVER, ILLUM, PASS, W/MIRROR, COVER, ILLUM (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| 750_BK | 750 BK |
| 750_BK | 750 BK |
| CAV_18 | 18 |
| 750_BK | 750 BK |
| CF5 | ROOF-SUN, GLASS, SLIDING, ELEC (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| D6I | MIRROR I/S FRT VAN-SUNSHADE, DRIVER, W/MIRROR, COVER, ILLUM, PASS, W/MIRROR, COVER, ILLUM (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| 850_BK | 850 BK |
| 850_BK | 850 BK |
| CAV_5 | 5 |
| 850_BK | 850 BK |
| 850_BK | 850 BK |
| 850_BK | 850 BK |
| 850_BK | 850 BK |
| 850_BK | 850 BK |
| 850_BK | 850 BK |
| 850_BK | 850 BK |
| CAV_B | B |
| CAV_E | E |
| CAV_5 | 5 |
| CAV_3 | 3 |
| CAV_A | A |
| CAV_3 | 3 |
| AG9 | ADJUSTER FRT ST-POWER, 6 WAY (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| 750_BK | 750 BK |
| 750_BK | 750 BK |
| 850_BK | 850 BK |
| 850_BK | 850 BK |
| 850_BK | 850 BK |
| 850_BK | 850 BK |
| CAV_3 | 3 |
| CAV_8 | 8 |
| CAV_5 | 5 |
| CAV_5 | 5 |
| CAV_1 | 1 |
| CAV_11 | 11 |
| CAV_2 | 2 |
| 850_BK | 850 BK |
| KA1 | HEATER SEAT FRT-DRVR and PASS (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| CF5 | ROOF-SUN, GLASS, SLIDING, ELEC (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| D6I | MIRROR I/S FRT VAN-SUNSHADE, DRIVER, W/MIRROR, COVER, ILLUM, PASS, W/MIRROR, COVER, ILLUM (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| 750_BK | 750 BK |
| G303 | G303 |
| X700 | X700 |
| X208 | X208 |
| X208 | X208 |
| J380 | J380 |
| X301 | X301 |
| J507 | J507 |
| J327 | J327 |
| B20 | B20 Brake Fluid Level Switch |
| A23RR | A23RR Door Latch Assembly - Right Rear |
| S72 | S72 Sunroof Switch (CF5) |
| S88 | S88 Sunroof Tilt Switch |
| A3L | A3L Sunshade - Left (D6I) |
| A3R | A3R Sunshade - Right (D6I) |
| K18 | K18 Compass Module (U80) |
| K61 | K61 Sunroof Control Module (CF5) |
| S64D | S64D Seat Adjuster Switch - Driver |
| S65D | S65D Seat Lumbar Support Switch - Driver |
| Q51D | Q51D Seat Lumbar Support Valve Assembly - Driver (AG9) |
| M53D | M53D Seat Lumbar Support Motor - Driver |
| K29 | K29 Seat Heating Control Module (KA1) |
| S13D | S13D Door Lock Switch - Driver |
| A23D | A23D Door Latch Assembly - Driver |
| A9A | A9A Outside Rearview Mirror - Driver |
| S52 | S52 Outside Rearview Mirror Switch (DG6) |
| M74D | M74D Window Motor - Driver |
| S79D | S79D Window Switch - Driver |
