G402 (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

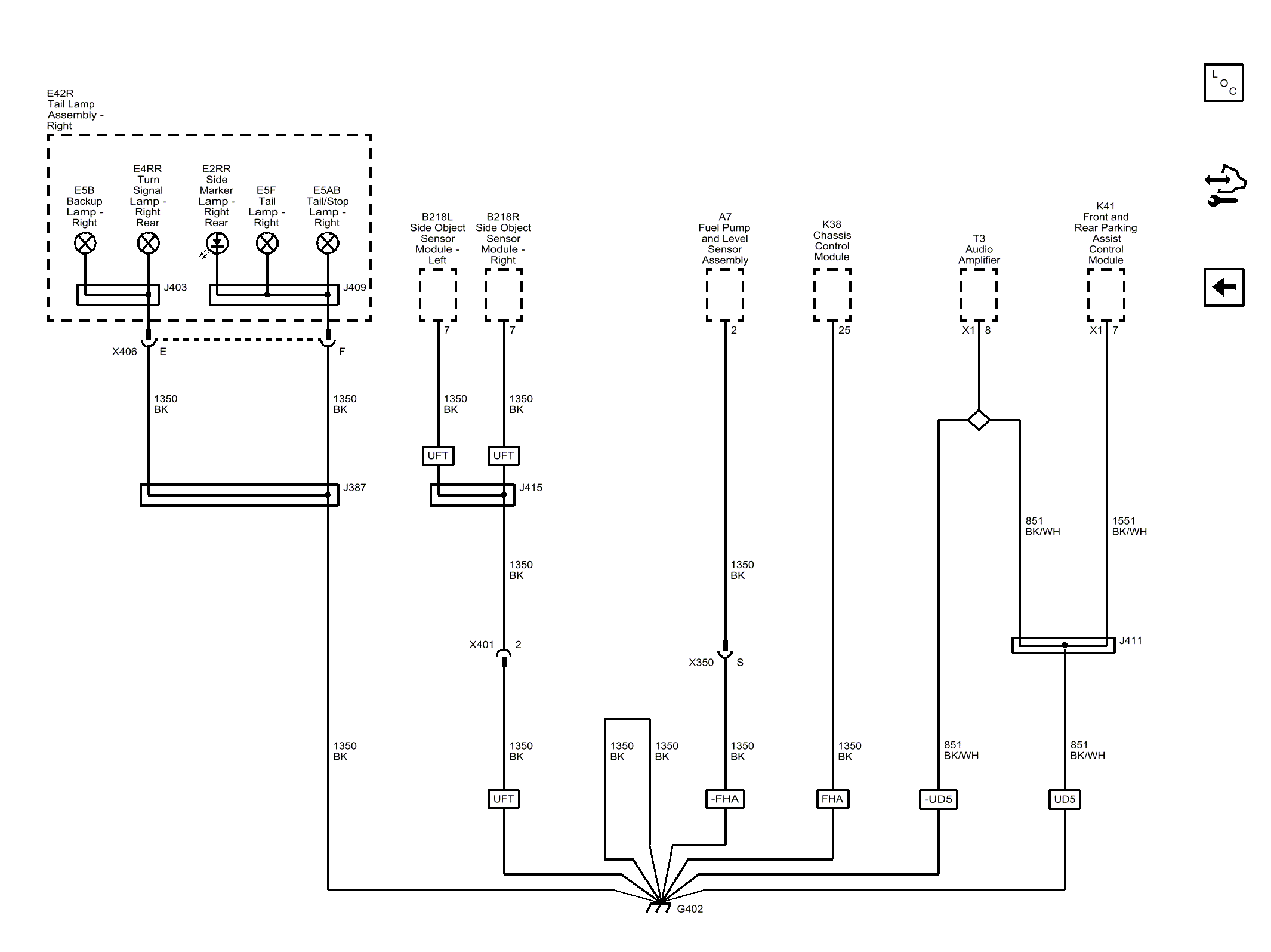

Fig 1: G402 (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1350_BK	1350 BK
1350_BK	1350 BK
1350_BK	1350 BK
CAV_25	25
CAV_2	2
1350_BK	1350 BK
1350_BK	1350 BK
CAV_7	7
CONN_X1	X1
CAV_8	8
CONN_X1	X1
1350	Ground
851	Signal Ground
851_BK/WH	851 BK/WH
851_BK/WH	851 BK/WH
1551_BK/WH	1551 BK/WH
851_BK/WH	851 BK/WH
1350_BK	1350 BK
1350_BK	1350 BK
1350_BK	1350 BK
1350_BK	1350 BK
1350_BK	1350 BK
1350_BK	1350 BK
CAV_7	7
CAV_7	7
UFT	SIDE ACTIVE SAFETY-OBSTACLE DETECTION (U.S.A. (MAH), Canada (MBC), or Mexico (MCX))
UD5	PARK ASSIST-FRONT AND REAR (U.S.A. (MAH), Canada (MBC), or Mexico (MCX))
UD5	PARK ASSIST-FRONT AND REAR (U.S.A. (MAH), Canada (MBC), or Mexico (MCX))
1551	Signal Ground
UFT	SIDE ACTIVE SAFETY-OBSTACLE DETECTION (U.S.A. (MAH), Canada (MBC), or Mexico (MCX))
CAV_2	2
UFT	SIDE ACTIVE SAFETY-OBSTACLE DETECTION (U.S.A. (MAH), Canada (MBC), or Mexico (MCX))
CAV_S	S
FHA	FUEL SYSTEM-ELECTRONIC, RETURNLESS (U.S.A. (MAH), Canada (MBC), or Mexico (MCX))
FHA	FUEL SYSTEM-ELECTRONIC, RETURNLESS (U.S.A. (MAH), Canada (MBC), or Mexico (MCX))
1350_BK	1350 BK
X406	X406
CAV_E	E
CAV_F	F
G402	G402
J403	J403
J409	J409
J411	J411
J387	J387
J415	J415
X401	X401
X350	X350
X406	X406
E42R	E42R Tail Lamp Assembly - Right
E2RR	E2RR Side Marker Lamp - Right Rear
E5AB	E5AB Tail/Stop Lamp - Right
T3	T3 Audio Amplifier
K41	K41 Front and Rear Parking Assist Control Module (UD5)
E5F	E5F Tail Lamp - Right
E5B	E5B Backup Lamp - Right
E4RR	E4RR Turn Signal Lamp - Right Rear
A7	A7 Fuel Pump and Level Sensor Assembly
B218R	B218R Side Object Sensor Module - Right (UFT)
B218L	B218L Side Object Sensor Module - Left (UFT)
K38	K38 Chassis Control Module (FHA)
