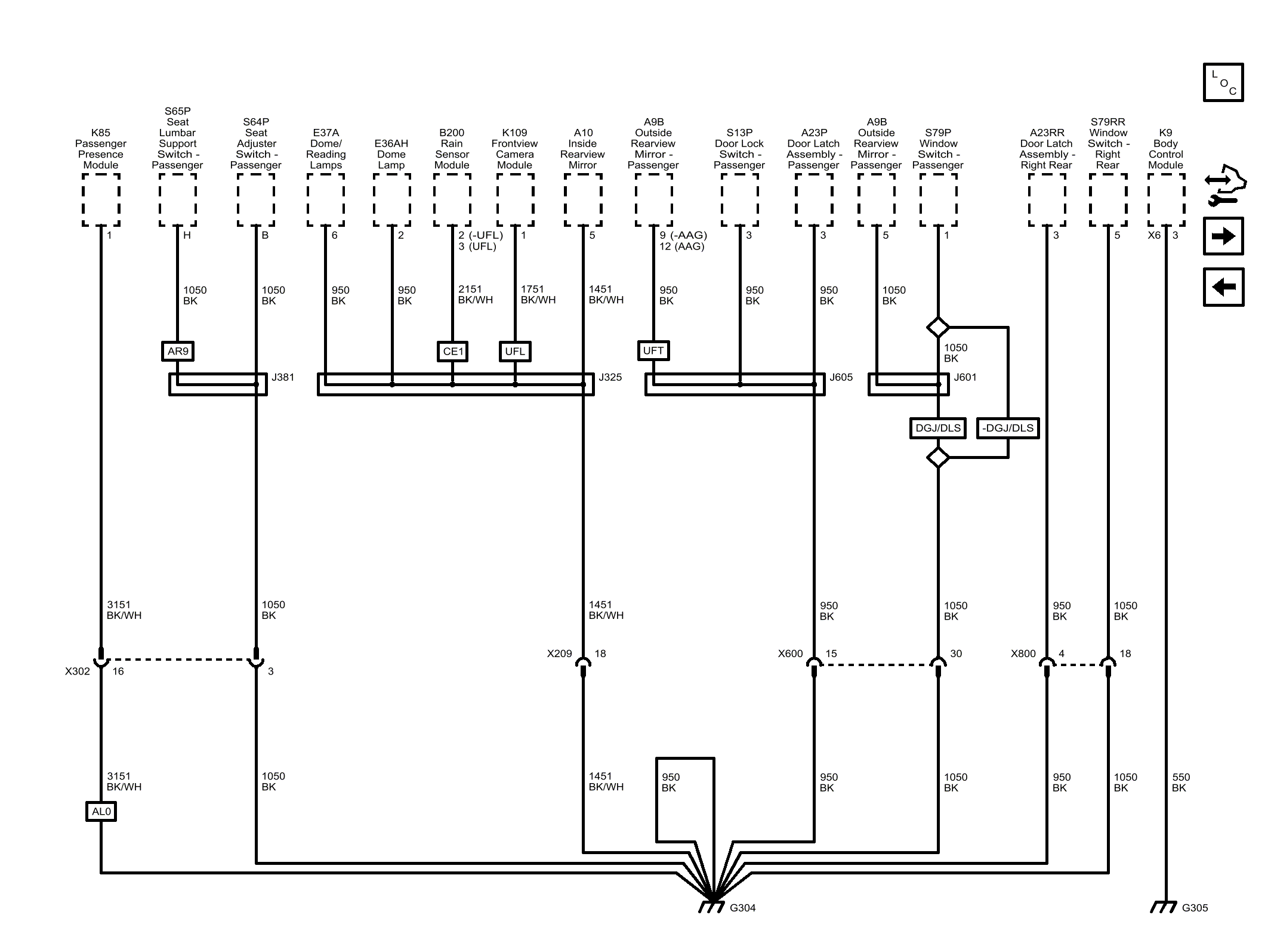

G304 and G305 (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 3151 | Signal Ground |
| 3151_BK/WH | 3151 BK/WH |
| CAV_1 | 1 |
| 950_BK | 950 BK |
| CAV_6 | 6 |
| 2151 | Signal Ground |
| 2151_BK/WH | 2151 BK/WH |
| CAV_2 | 2 |
| 1751 | Signal Ground |
| 1751_BK/WH | 1751 BK/WH |
| CAV_1 | 1 |
| 1451_BK/WH | 1451 BK/WH |
| CAV_5 | 5 |
| 1451 | Signal Ground |
| 1451_BK/WH | 1451 BK/WH |
| 1451_BK/WH | 1451 BK/WH |
| CAV_18 | 18 |
| 950 | |
| 950_BK | 950 BK |
| CAV_3 | 3 |
| 950_BK | 950 BK |
| CAV_3 | 3 |
| CAV_3 | 3 |
| 950_BK | 950 BK |
| 950_BK | 950 BK |
| 950_BK | 950 BK |
| 950_BK | 950 BK |
| 950_BK | 950 BK |
| 151 | Signal Ground |
| 1050 | Ground |
| 550 | Ground |
| 550_BK | 550 BK |
| CAV_3 | 3 |
| CONN_X6 | X6 |
| 3151_BK/WH | 3151 BK/WH |
| CAV_3 | 3 |
| 950_BK | 950 BK |
| CAV_2 | 2 |
| CAV_9 | 9 |
| 950_BK | 950 BK |
| CAV_12 | 12 |
| CAV_1 | 1 |
| 1050_BK | 1050 BK |
| 1050_BK | 1050 BK |
| CAV_5 | 5 |
| 1050_BK | 1050 BK |
| 1050_BK | 1050 BK |
| 1050_BK | 1050 BK |
| CAV_B | B |
| 1050_BK | 1050 BK |
| CAV_H | H |
| 1050_BK | 1050 BK |
| 1050_BK | 1050 BK |
| CAV_5 | 5 |
| 1050_BK | 1050 BK |
| 1050_BK | 1050 BK |
| CE1 | WIPER SYS WINDSHIELD-PULSE, MOISTURE SENSITIVE (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| AL0 | SENSOR INDICATOR-INFLATABLE RESTRAINT, FRT PASS/CHILD PRESENCE DETECTOR (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| UFL | LANE ACTIVE SAFETY-DEPARTURE WARNING (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| UFL | LANE ACTIVE SAFETY-DEPARTURE WARNING (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| UFL | LANE ACTIVE SAFETY-DEPARTURE WARNING (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| UFT | SIDE ACTIVE SAFETY-OBSTACLE DETECTION (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| AAG | MEMORY-SEAT ADJUSTER, MIRROR, POWER, DRIVER, HVAC, RADIO PRESET (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| AAG | MEMORY-SEAT ADJUSTER, MIRROR, POWER, DRIVER, HVAC, RADIO PRESET (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| AR9 | SEAT-FRT BKT, DELUXE (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| DGJ | MIRROR O/S-LH and RH, REMOTE CONTROL, ELECTRIC, MANUAL FOLDING,TURN SIGNAL, COLOR (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| DLS | MIRROR O/S-LH and RH, REMOTE CONTROL, ELECTRIC, HEATED, MANUAL FOLDING, COLOR, TURN SIG IND (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| DGJ | MIRROR O/S-LH and RH, REMOTE CONTROL, ELECTRIC, MANUAL FOLDING,TURN SIGNAL, COLOR (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| DLS | MIRROR O/S-LH and RH, REMOTE CONTROL, ELECTRIC, HEATED, MANUAL FOLDING, COLOR, TURN SIG IND (U.S.A. (MAH), Canada (MBC), or Mexico (MCX)) |
| X600 | X600 |
| CAV_15 | 15 |
| CAV_30 | 30 |
| X800 | X800 |
| CAV_4 | 4 |
| CAV_18 | 18 |
| X302 | X302 |
| CAV_16 | 16 |
| CAV_3 | 3 |
| G304 | G304 |
| X209 | X209 |
| G305 | G305 |
| J325 | J325 |
| J605 | J605 |
| J381 | J381 |
| J601 | J601 |
| X600 | X600 |
| X800 | X800 |
| X302 | X302 |
| A10 | A10 Inside Rearview Mirror |
| A23RR | A23RR Door Latch Assembly - Right Rear |
| A23P | A23P Door Latch Assembly - Passenger |
| S13P | S13P Door Lock Switch - Passenger |
| E37A | E37A Dome/Reading Lamps |
| K9 | K9 Body Control Module |
| K85 | K85 Passenger Presence Module |
| B200 | B200 Rain Sensor Module (CE1) |
| E36AH | E36AH Dome Lamp |
| K109 | K109 Frontview Camera Module (UFL) |
| A9B | A9B Outside Rearview Mirror - Passenger |
| S65P | S65P Seat Lumbar Support Switch - Passenger |
| S64P | S64P Seat Adjuster Switch - Passenger |
| A9B | A9B Outside Rearview Mirror - Passenger |
| S79P | S79P Window Switch - Passenger |
| S79RR | S79RR Window Switch - Right Rear |
