Section 24 (Instrument Panel System Displays And Gauges)
>>
Schematic Wiring Diagrams
>>
Instrument Cluster Wiring Schematics (Trax)
>>
Power, Ground, Serial Data, and Gauges (Trax)
Power, Ground, Serial Data, and Gauges (Trax)
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

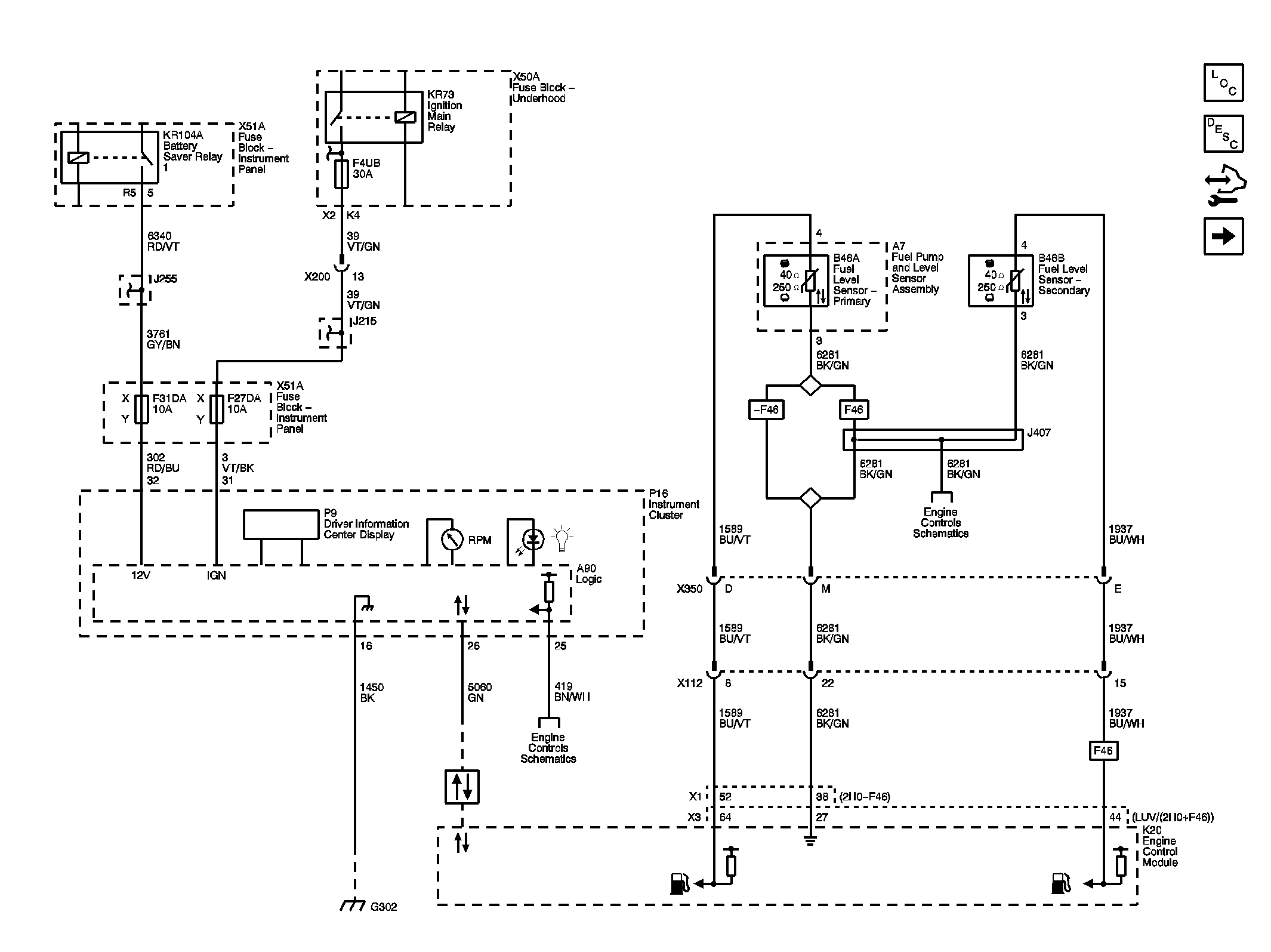

Fig 1: Power, Ground, Serial Data, and Gauges (Trax)
Courtesy of GENERAL MOTORS COMPANY
