Section 24 (Instrument Panel System Displays And Gauges)
>>
Schematic Wiring Diagrams
>>
Audible Warnings Wiring Schematics (Encore)
>>
Audible Warnings (Encore)
Audible Warnings (Encore)
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

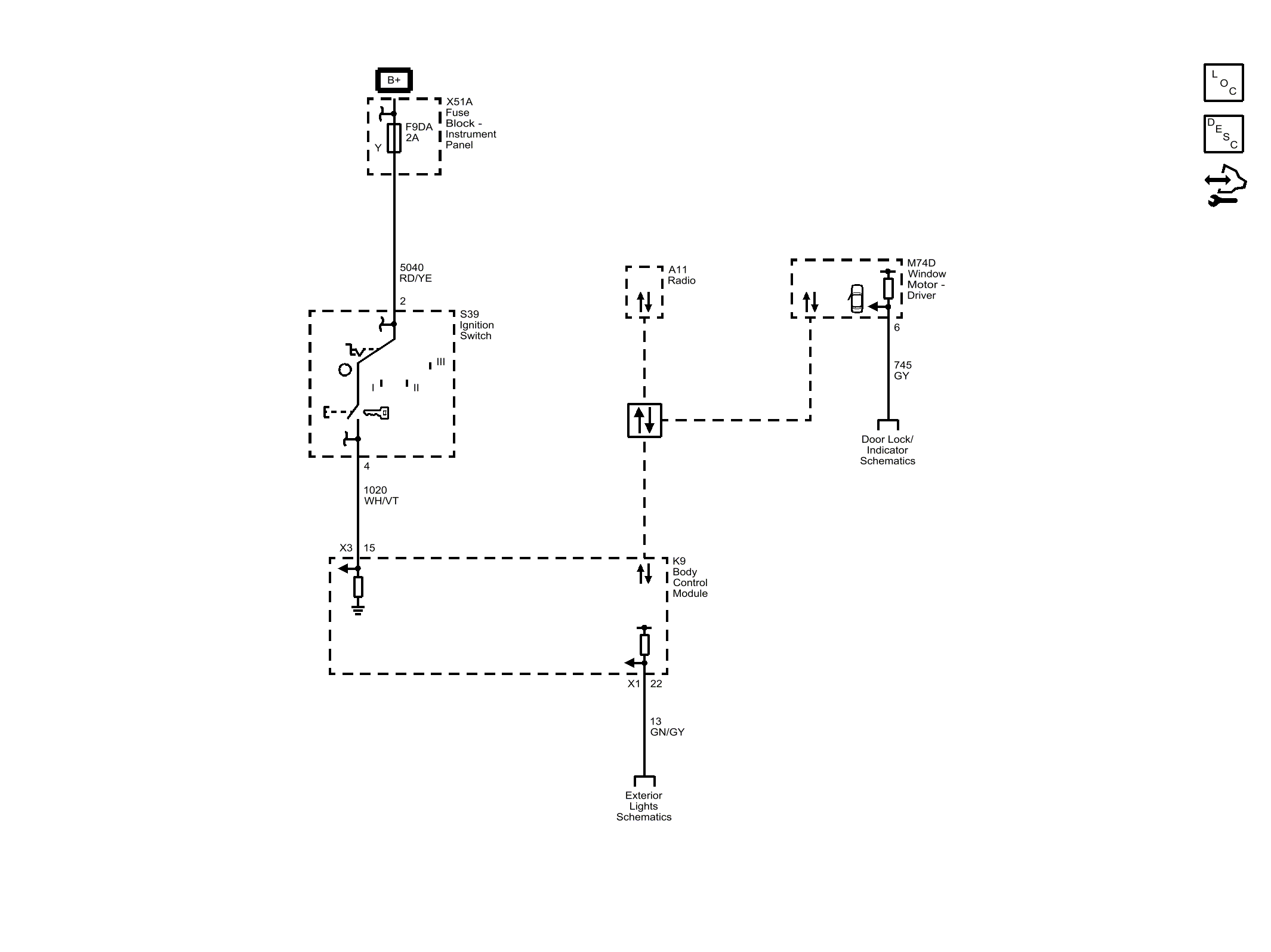

Fig 1: Audible Warnings (Encore)
Courtesy of GENERAL MOTORS COMPANY
