Driver Information Display Replacement (UDN)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

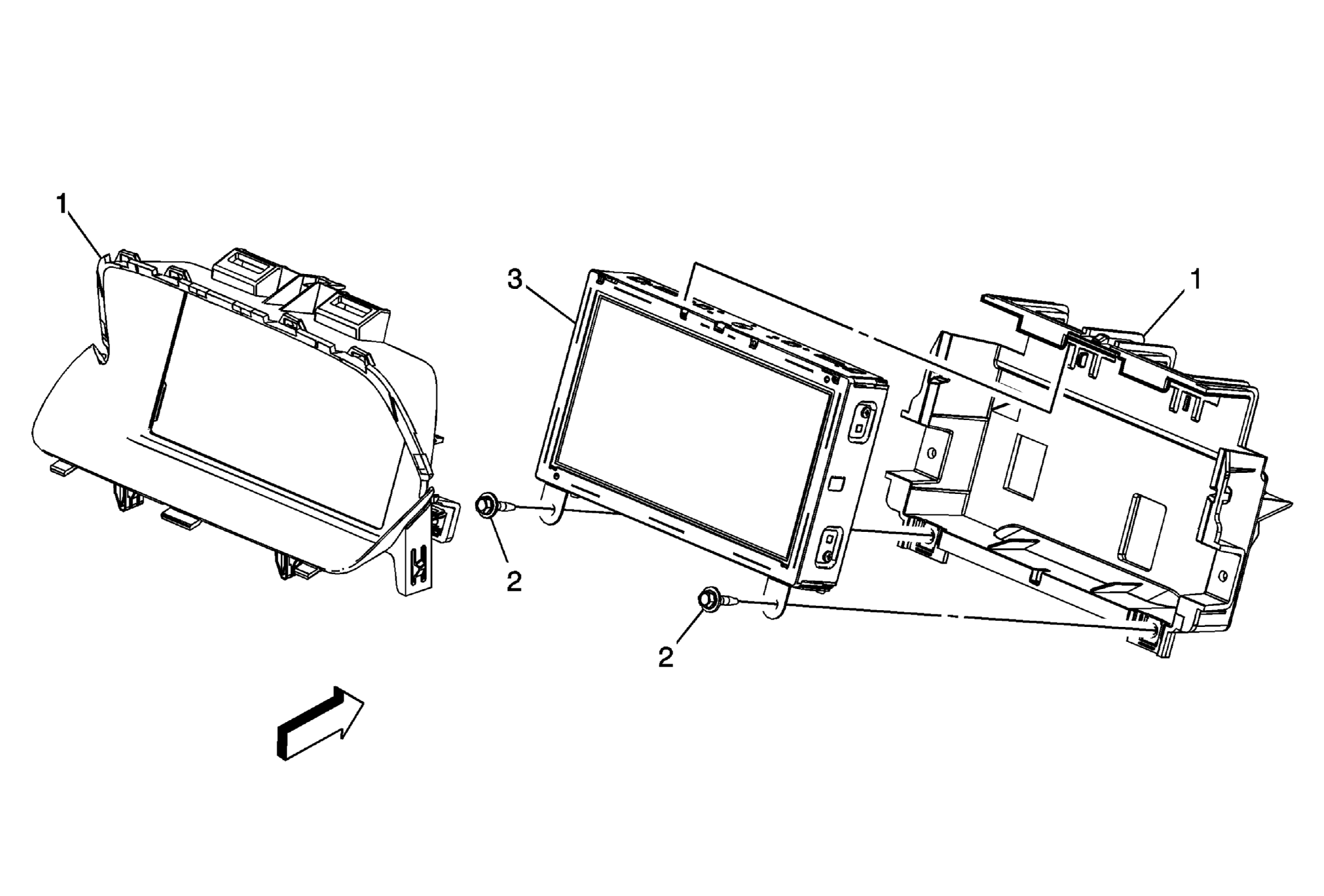

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Upper Trim Panel Bracket Refer to Instrument Panel Upper Trim Panel Bracket Replacement (UDN) . |
| 2 | Driver Information Display Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 3 | Driver Information Display Procedure Refer to Control Module References for programming and set up information. |
