Instrument Cluster Description and Operation: Notes
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

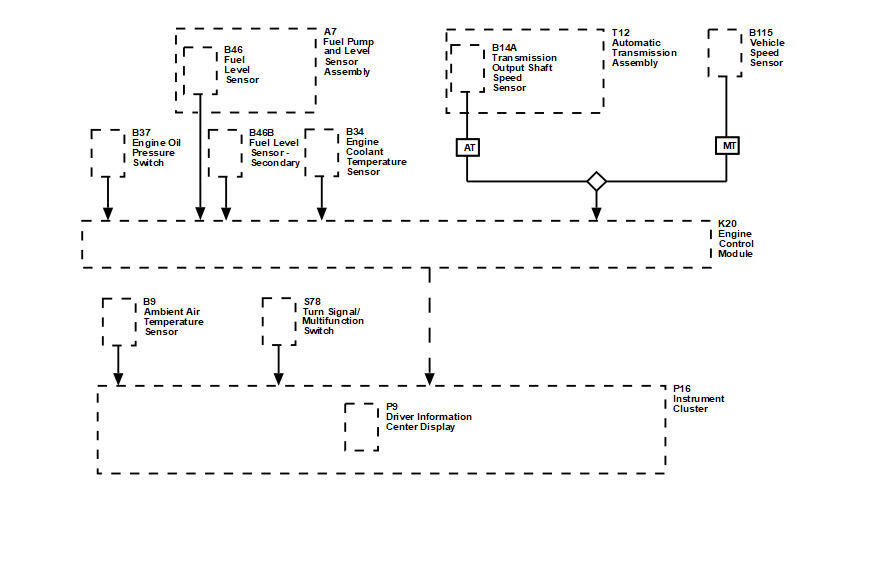

| Callout | Component Name |
|---|---|
| P16 | P16 Instrument Cluster |
| P9 | P9 Driver Information Center Display |
| S78 | S78 Turn Signal/Multifunction Switch |
| B9 | B9 Ambient Air Temperature Sensor |
| B14A | B14A Transmission Output Shaft Speed Sensor |
| T12 | T12 Automatic Transmission Assembly |
| B115 | B115 Vehicle Speed Sensor |
| K20 | K20 Engine Control Module |
| B46 | B46 Fuel Level Sensor |
| A7 | A7 Fuel Pump and Level Sensor Assembly |
| B37 | B37 Engine Oil Pressure Switch |
| B46B | B46B Fuel Level Sensor - Secondary |
| B34 | B34 Engine Coolant Temperature Sensor |
