Sunshade Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

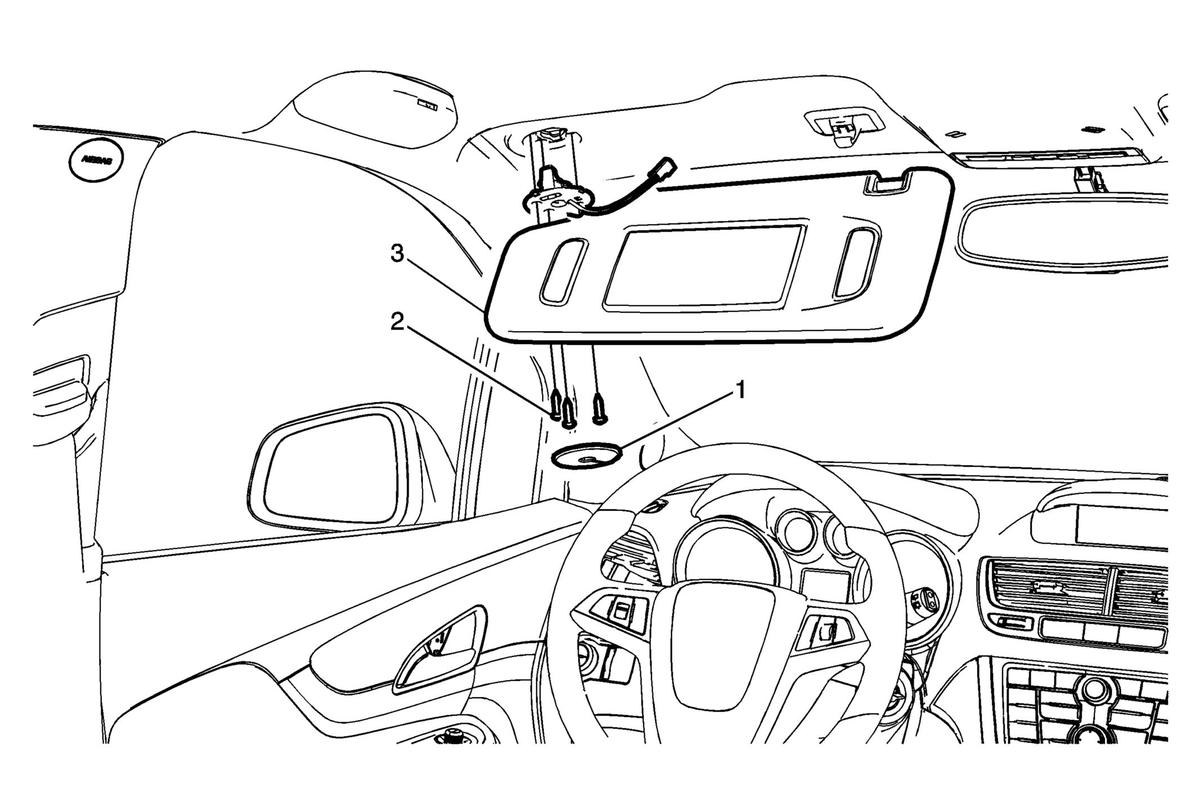

Fig 1: Sunshade Assembly (Encore)
GM2787079Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Lower the front of the headliner to access the sunshade electrical connector, if necessary. Refer to Headlining Trim Panel Replacement (Without Sunroof, Encore)Headlining Trim Panel Replacement (With Sunroof, Encore) .
1 Sunshade Cover
2 Sunshade Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Sunshade Assembly

Procedure

  1. Squeeze the tabs at the base of the sunshade assembly to remove from the headliner.
  2. Disconnect the electrical connector.
