Roof Rail Front Stowage Compartment Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

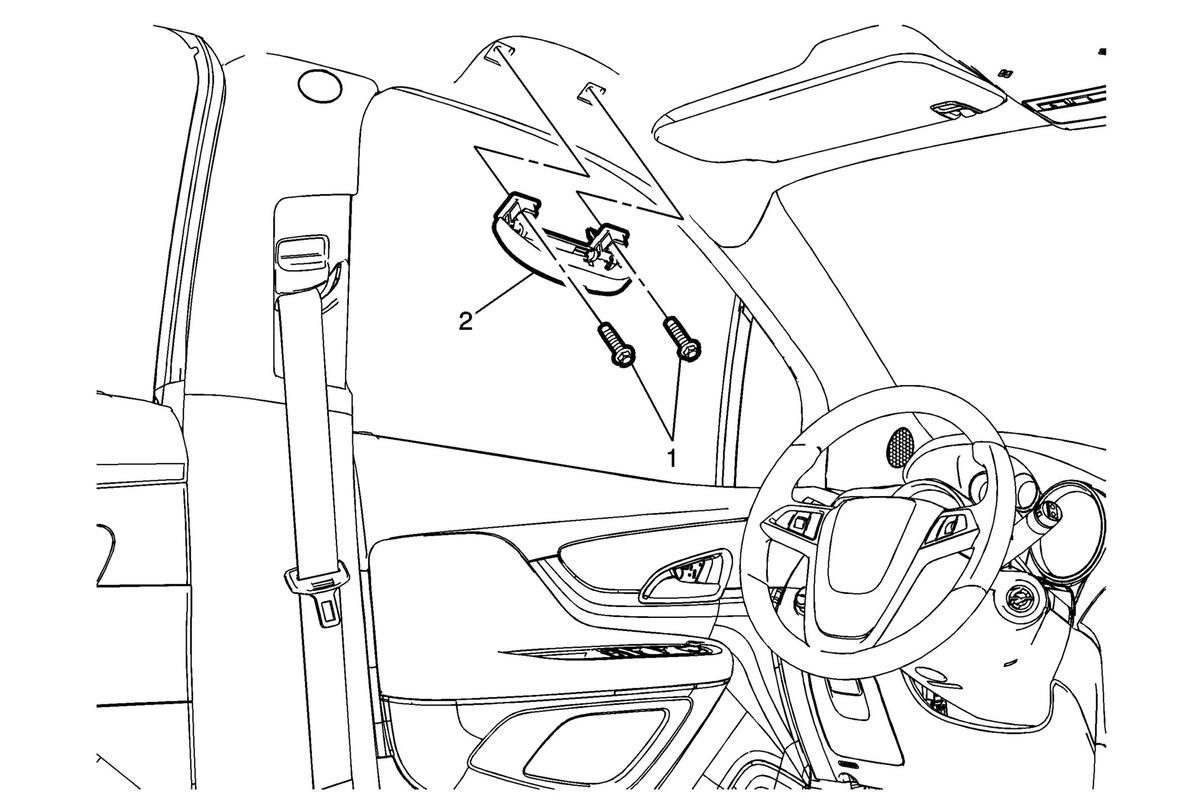

Fig 1: Roof Rail Front Stowage Compartment (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Roof Rail Front Stowage Compartment Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Fold the assist handle downward and hold. Use a small flat-bladed tool to release the cover to access the fastener. Tighten 6 N.m (53 lb in)
2	Roof Rail Front Stowage Compartment Assembly

Callout

Component Name

Roof Rail Front Stowage Compartment Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Procedure

Fold the assist handle downward and hold.
Use a small flat-bladed tool to release the cover to access the fastener.

Tighten
6 N.m (53 lb in)

Roof Rail Front Stowage Compartment Assembly
