Load Floor Panel Rear Extension Panel Replacement (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

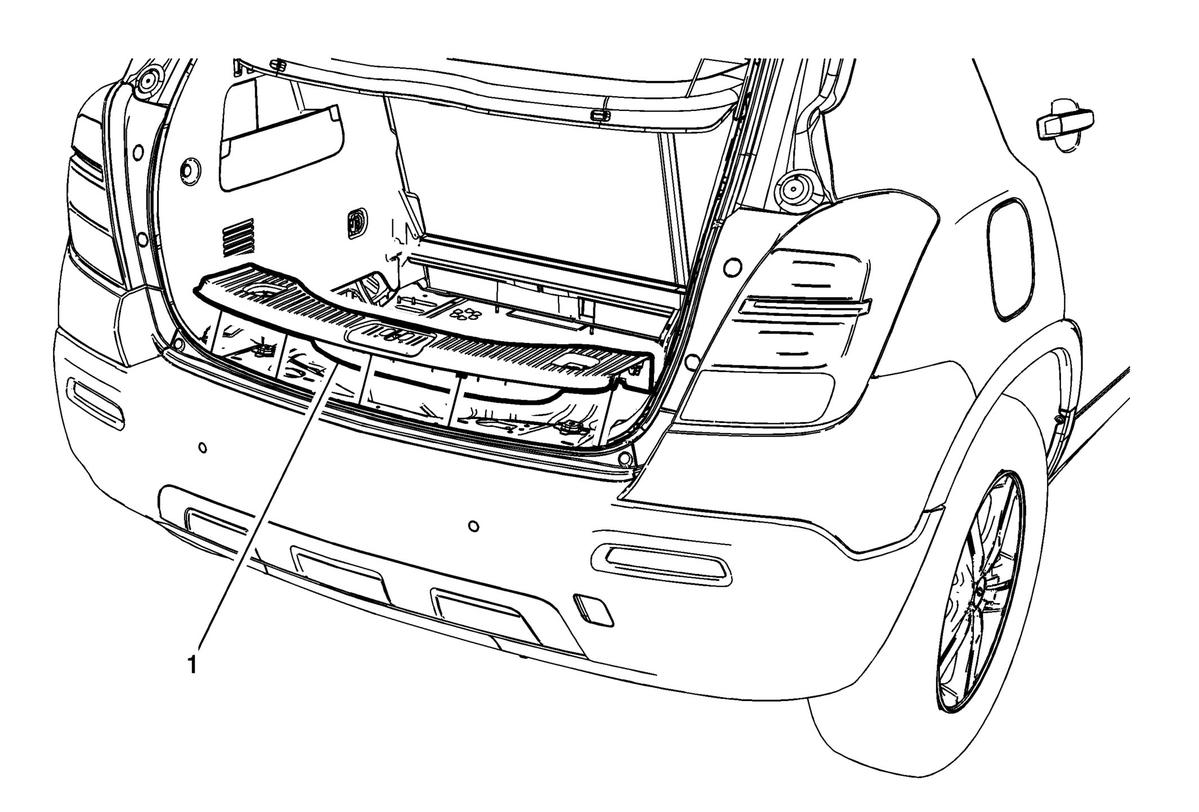

Fig 1: Load Floor Panel Rear Extension Panel (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the load floor stowage compartment cover. Refer to Load Floor Stowage Compartment Cover Replacement (Trax) . Remove the cargo tie down hooks. Refer to Cargo Tie Down Loop Replacement (Trax) .
1	Load Floor Panel Rear Extension Panel Assembly Procedure Grasp and gently pull up on the load floor panel rear extension panel in order to release the integral retaining clips.

Callout

Component Name

Preliminary Procedure

Remove the load floor stowage compartment cover. Refer to Load Floor Stowage Compartment Cover Replacement (Trax) .
Remove the cargo tie down hooks. Refer to Cargo Tie Down Loop Replacement (Trax) .

Load Floor Panel Rear Extension Panel Assembly
Procedure
Grasp and gently pull up on the load floor panel rear extension panel in order to release the integral retaining clips.
