Load Floor Front Trim Panel Support Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

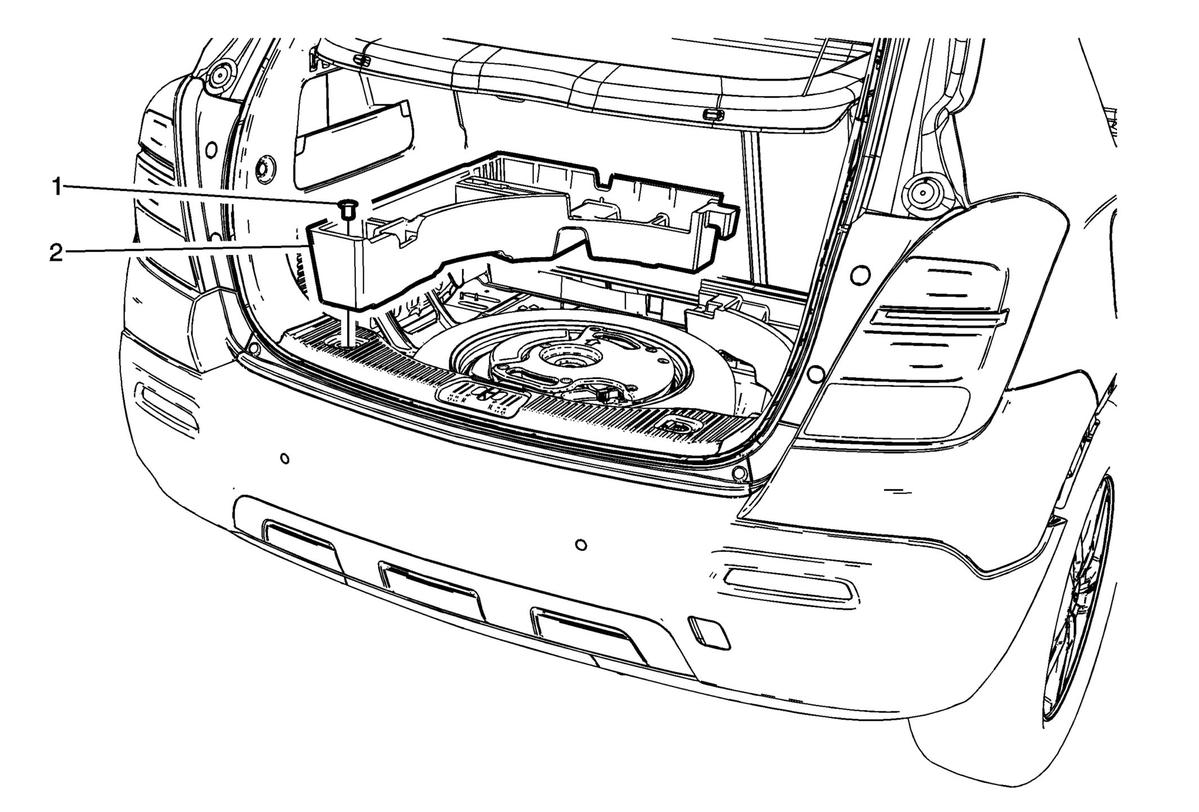

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the load floor stowage compartment cover. Refer to Load Floor Stowage Compartment Cover Replacement (Trax) . |
|
| 1 | Rear Compartment Floor Stowage Compartment Divider Retainer |
| 2 | Load Floor Front Trim Panel Support
NOTE:
Load floor front trim panel support on left side must be removed prior to removal of right side load floor front trim panel support, due to overlap. |
