Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side Door, Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

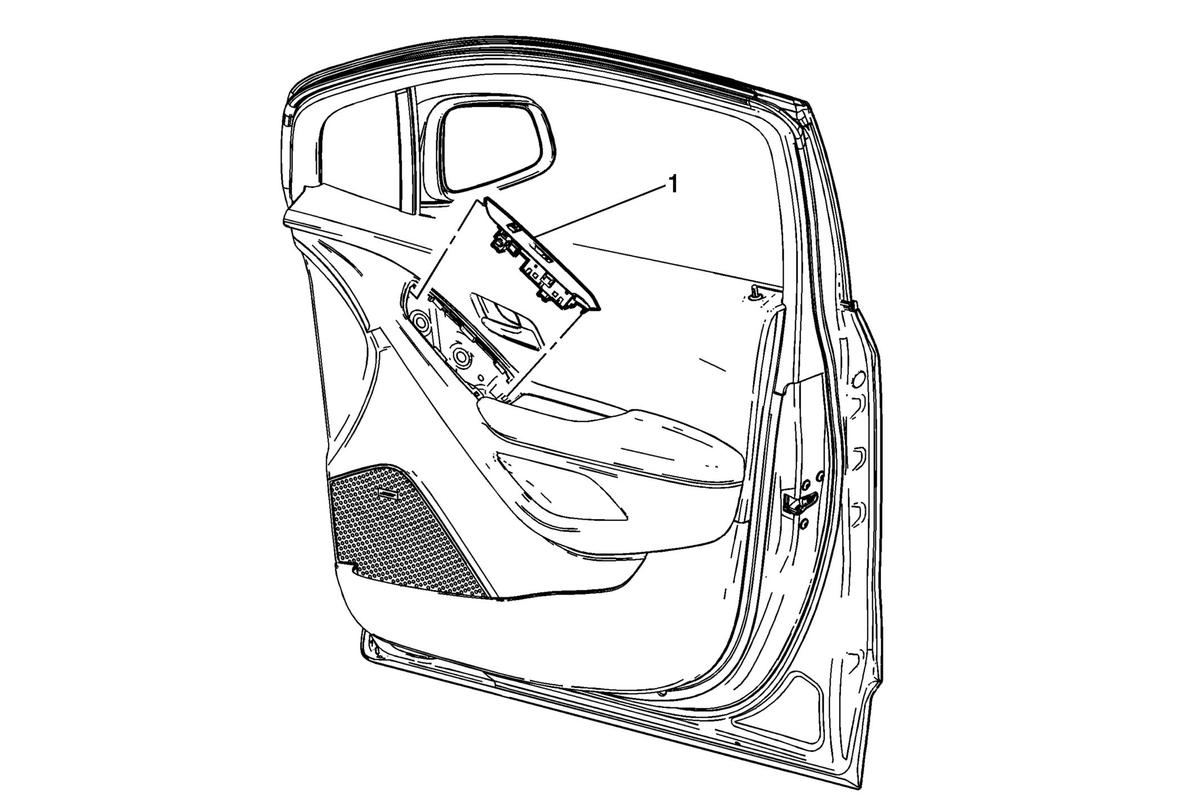

Fig 1: Front Side Door Armrest Switch Mount Plate - Passenger Side Door (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Armrest Switch Mount Plate Assembly - Passenger Side Door Procedure Starting from the bottom of the switch mount plate, use the appropriate plastic trim tool to release the front side door armrest switch mount plate spring clips from the door trim panel. Once the integral retainers are released, pull downward to disengage the integral plastic hook feature retaining the switch mount plate to the door trim panel. Disconnect the electrical connector from the switch assembly. Transfer parts as necessary.

Callout

Component Name

Front Side Door Armrest Switch Mount Plate Assembly - Passenger Side Door

Procedure

Starting from the bottom of the switch mount plate, use the appropriate plastic trim tool to release the front side door armrest switch mount plate spring clips from the door trim panel. Once the integral retainers are released, pull downward to disengage the integral plastic hook feature retaining the switch mount plate to the door trim panel.
Disconnect the electrical connector from the switch assembly.
Transfer parts as necessary.
