Rear Seat Cushion Cover and Pad Replacement (60%)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

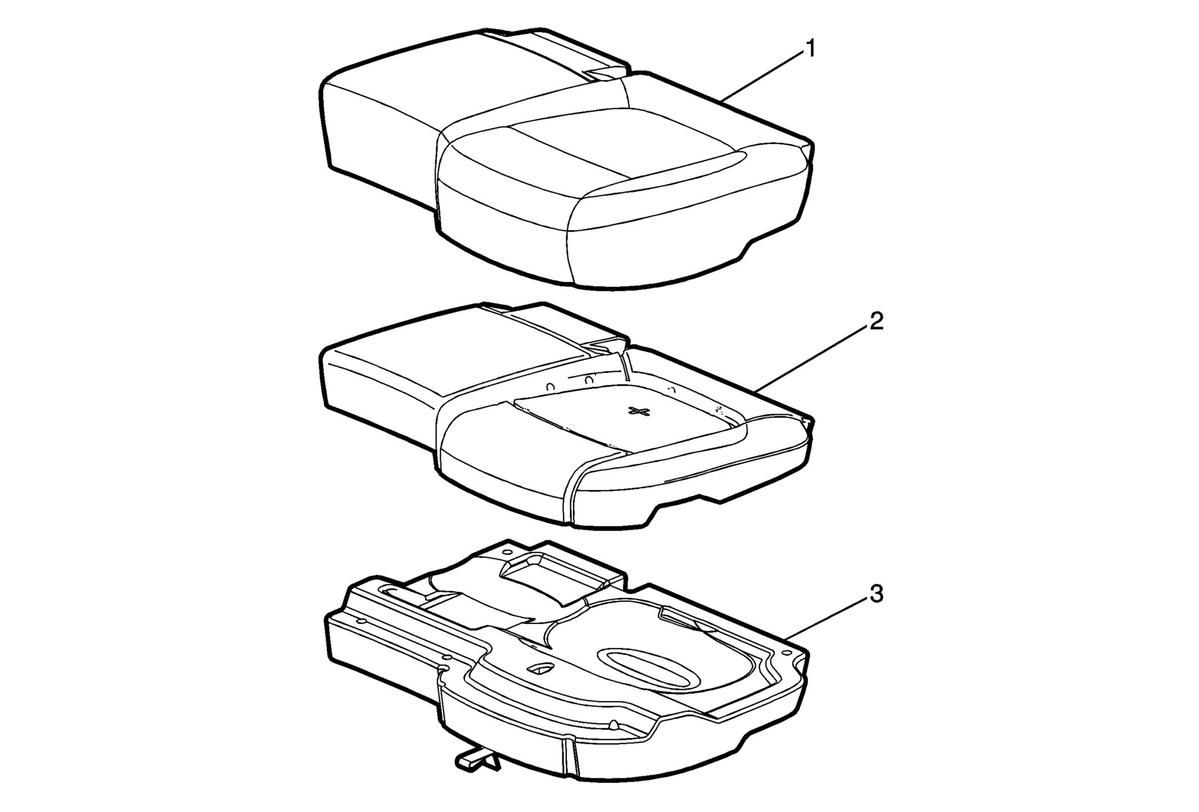

Fig 1: Rear Seat Cushion Cover And Pad (60%)
GM2778004Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation
1 Rear Seat Cushion Cover

Procedure

  1. Remove the hog rings that secure the rear seat cushion cover to the pad.
  2. Pull the cover away from the pad to disengage any retainers.
NOTE:

When installing the rear seat cushion cover, pull the cover tightly in all corners to ensure that no creasing occurs.
2 Rear Seat Cushion Pad
3 Rear Seat Cushion Frame
