Front Seat Vertical Adjuster Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

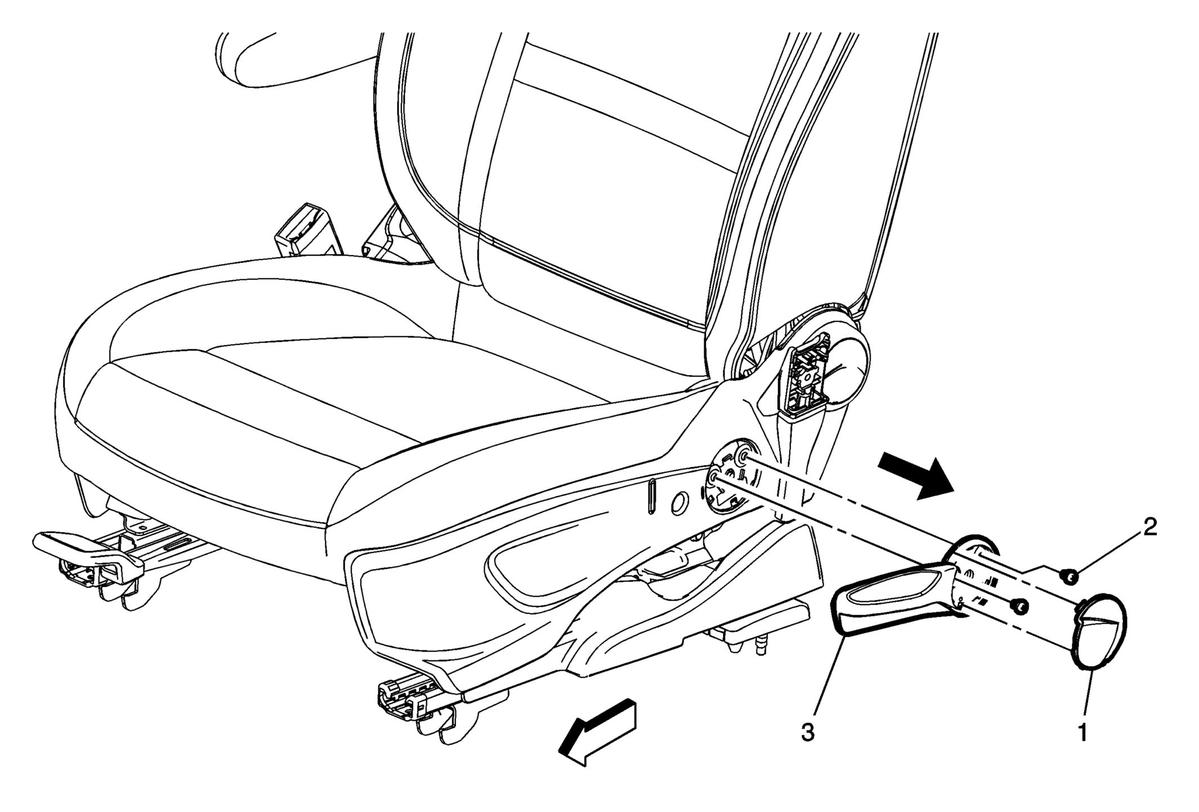

Fig 1: Front Seat Vertical Adjuster
GM2772759Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Vertical Adjuster Cap
Procedure
Use a flat-bladed tool to push inward on the three tabs to release the handle cover from the handle assembly.
2 Front Seat Vertical Adjuster Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.8 N.m (25 lb in)
3 Front Seat Vertical Adjuster
Procedure
Use a flat-bladed tool to release the adjuster handle from the seat frame assembly.
