Front Seat Head Restraint Adjust Knob Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

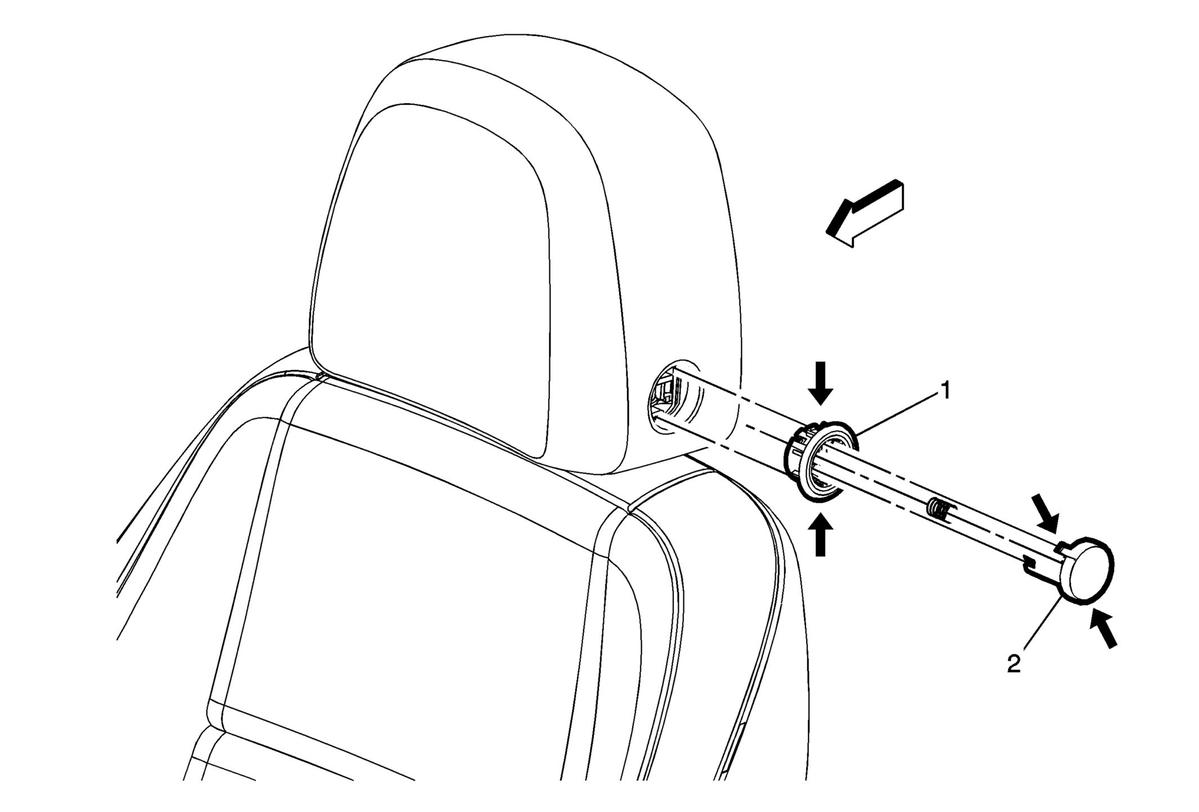

Fig 1: Front Seat Head Restraint Adjust Knob

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Head Restraint Adjuster Knob Bezel Procedure Use a flat-bladed tool to push inward on the adjuster bezel tabs to release the bezel from the front seat head restraint.
2	Front Seat Head Restraint Adjuster Knob Replacement Procedure Use a flat-bladed tool to push inward on the adjuster knob tabs to release it from the bezel. Position the spring between the adjuster bezel and knob for a proper install.

Callout

Component Name

Front Seat Head Restraint Adjuster Knob Bezel
Procedure
Use a flat-bladed tool to push inward on the adjuster bezel tabs to release the bezel from the front seat head restraint.

Front Seat Head Restraint Adjuster Knob Replacement

Procedure

Use a flat-bladed tool to push inward on the adjuster knob tabs to release it from the bezel.
Position the spring between the adjuster bezel and knob for a proper install.
