Front Seat Back Recliner Handle Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

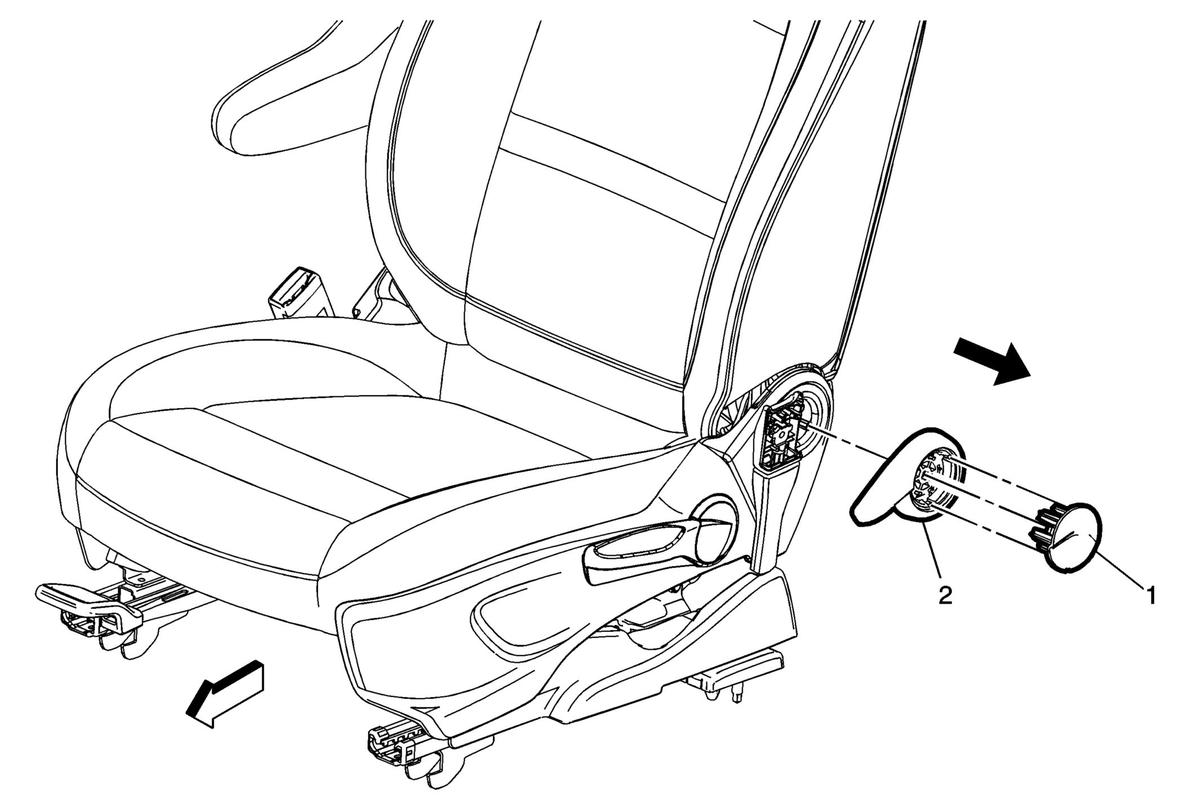

| Callout |
Component Name |
| 1 |
Driver or Passenger Seat Recliner Handle Cover Cap
Procedure
Use a flat-bladed tool to release the handle cover from the handle assembly. |
| 2 |
Driver or Passenger Seat Recliner Handle
Procedure
Use a flat-bladed tool to release the handle from the seat. |
