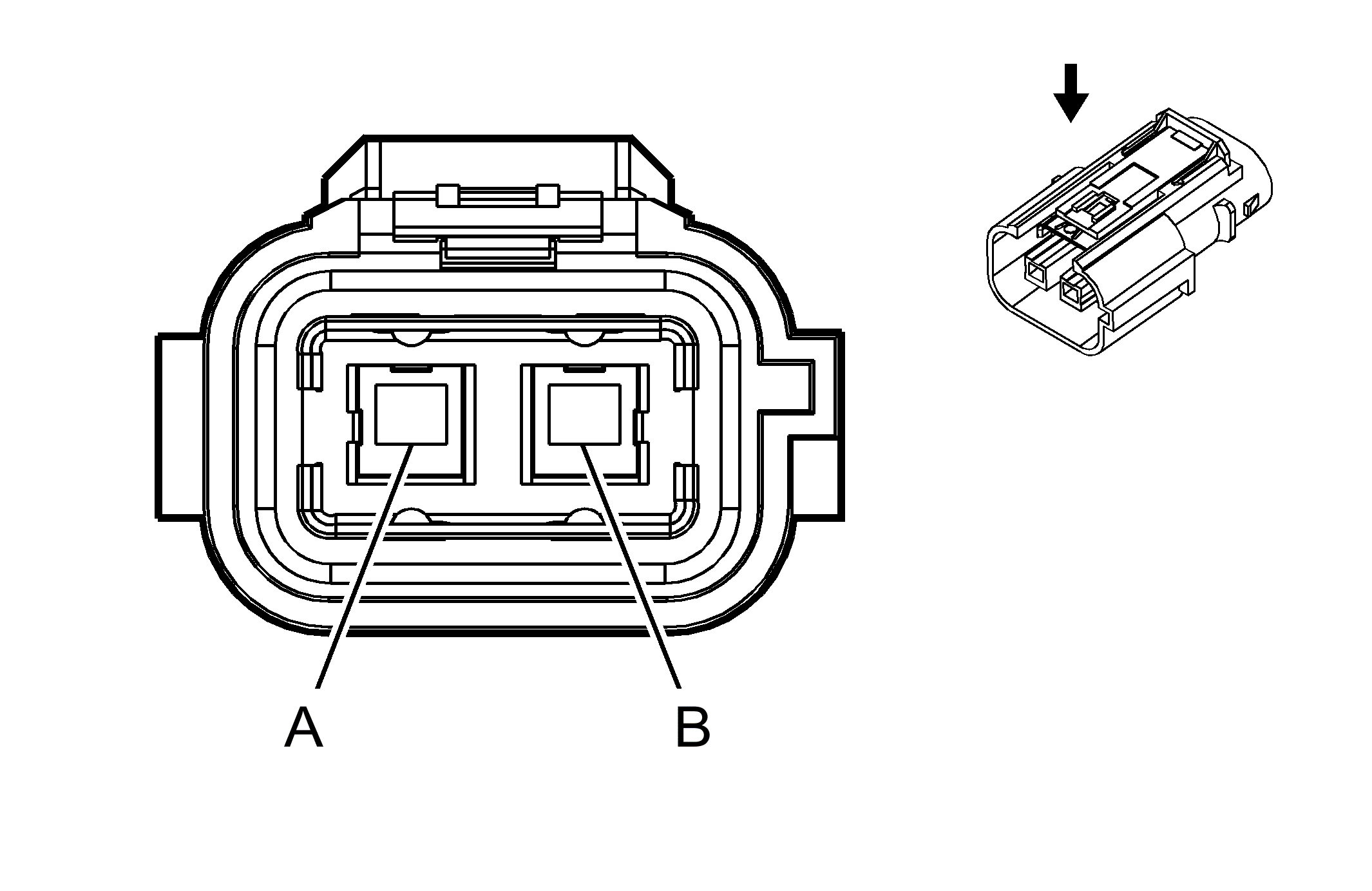

K1 14V Power Module X4 X4
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: High Voltage
- OEM Connector: 13861584
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 280 Metri Pack Series, Sealed
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
2 |
OG/BK |
5084 |
High Voltage Battery (+) |
I |
- |
| B |
2 |
OG |
5083 |
High Voltage Battery (-) |
I |
- |
