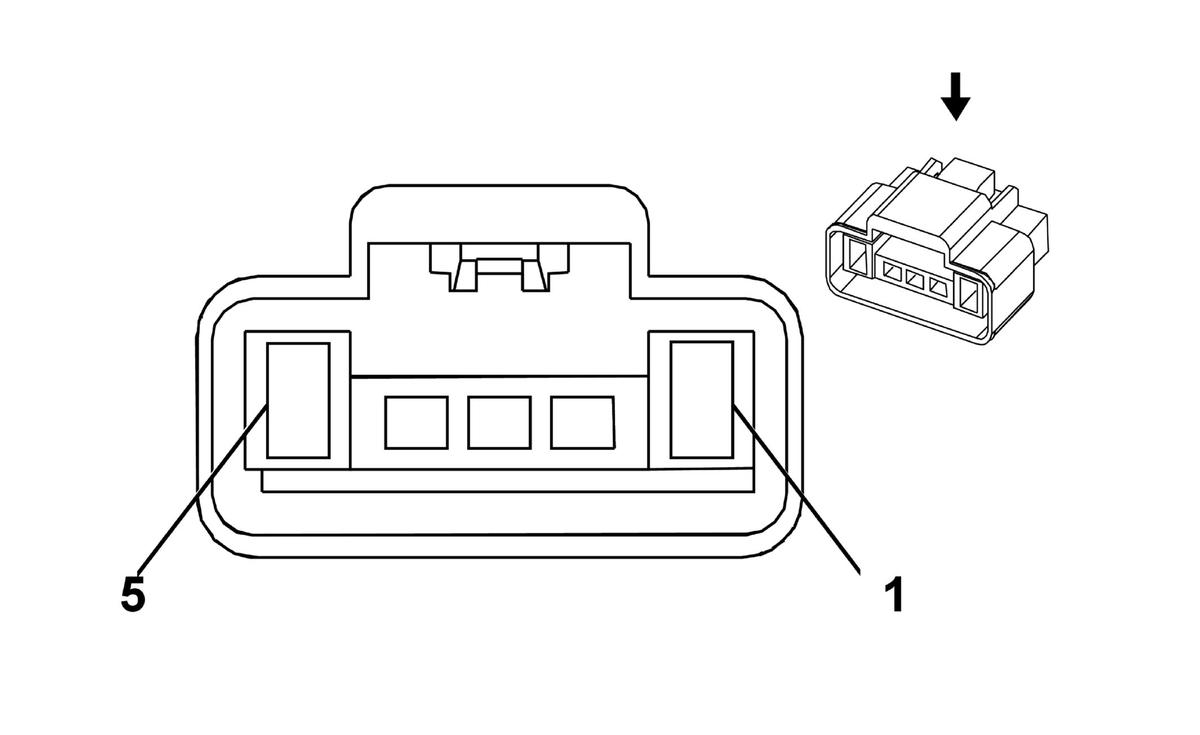

G38 14V Power Module Cooling Fan
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 1599317
- Service Connector: 13577529
- Description: 5-Way F 2.8, 6.3 Timer Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
850 |
Ground |
I |
- |
| 2 |
0.5 |
BN/L-GN |
3793 |
Accessory Power Module Cooling Fan Feedback Signal |
I |
- |
| 3 |
0.5 |
YE/GY |
3792 |
Accessory Power Module Cooling Fan Control |
I |
- |
| 4 |
0.5 |
L-GN/VT |
3791 |
Accessory Power Module Cooling Fan Enable |
I |
- |
| 5 |
0.5 |
RD/BN |
2240 |
Battery Positive Voltage |
I |
- |
