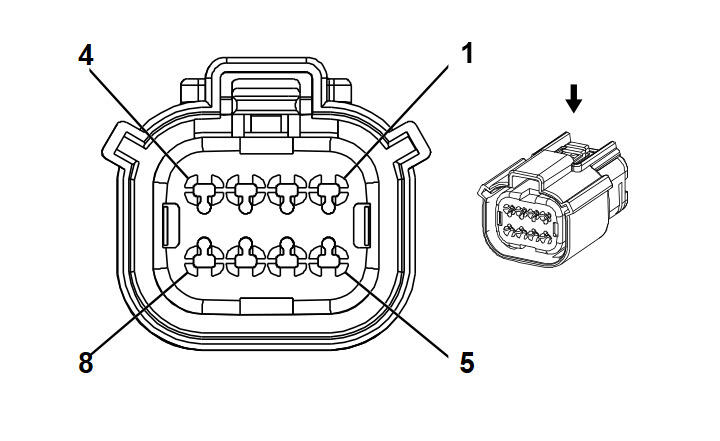

G1 A/C Compressor X1 X1
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 33472-0806
- Service Connector: 13577527
- Description: 8-Way F 150 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
250 |
Ground |
I |
- |
| 2 |
0.75 |
L-BU/WH |
3977 |
Accessory Wake up Serial Data 2 |
I |
- |
| 3 |
0.75 |
VT/WH |
639 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 4 |
0.75 |
RD/WH |
2740 |
Battery Positive Voltage |
I |
- |
| 5 |
0.75 |
WH |
2501 |
High Speed GMLAN Serial Data (-) (1) |
I |
- |
| 6 |
0.75 |
WH |
2501 |
High Speed GMLAN Serial Data (-) (1) |
I |
- |
| 7 |
0.75 |
L-BU |
2500 |
High Speed GMLAN Serial Data (+) (1) |
I |
- |
| 8 |
0.75 |
L-BU |
2500 |
High Speed GMLAN Serial Data (+) (1) |
I |
- |
