F101 Passenger Instrument Panel Air Bag X2 X2
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

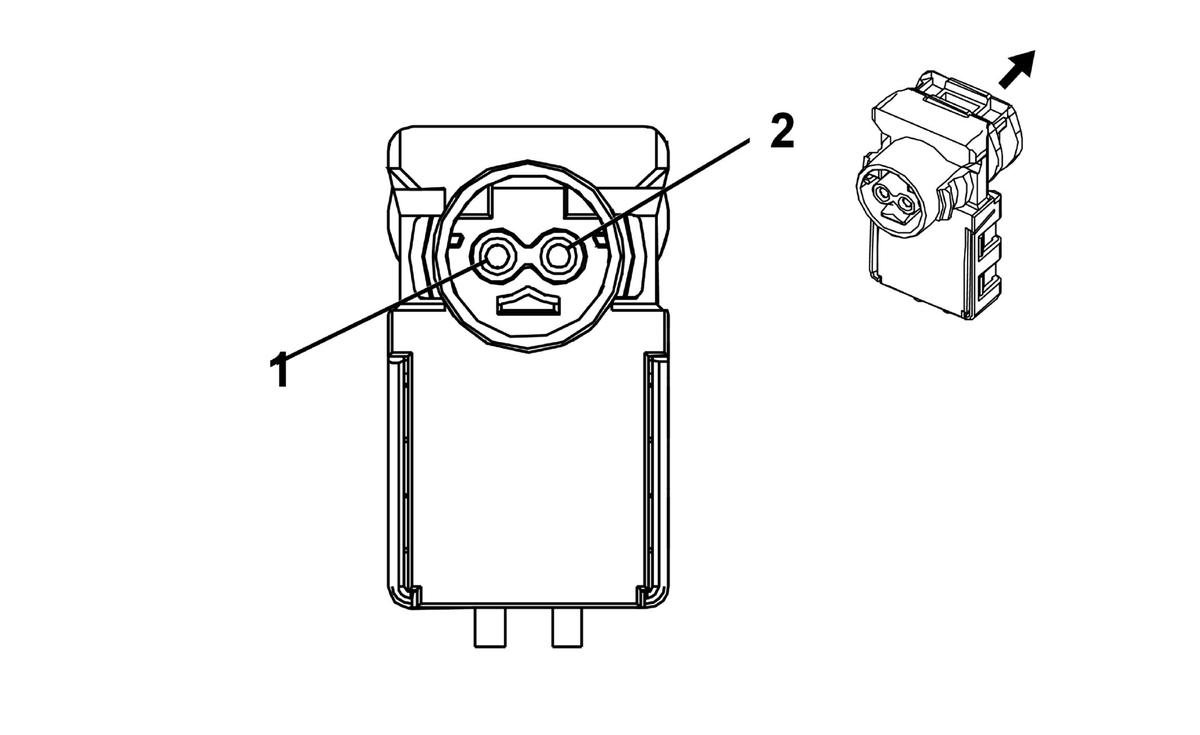

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13580453
- Service Connector: 19330327
- Description: 2-Way F AK 2 Series (YE with YE cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT |
3027 |
Passenger IP Module Stage 2 High Control |
I |
- |
| 2 |
0.5 |
OG/VT |
3026 |
Passenger IP Module Stage 2 Low Control |
I |
- |
