E4Z Turn Signal Repeater Lamp - Right
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

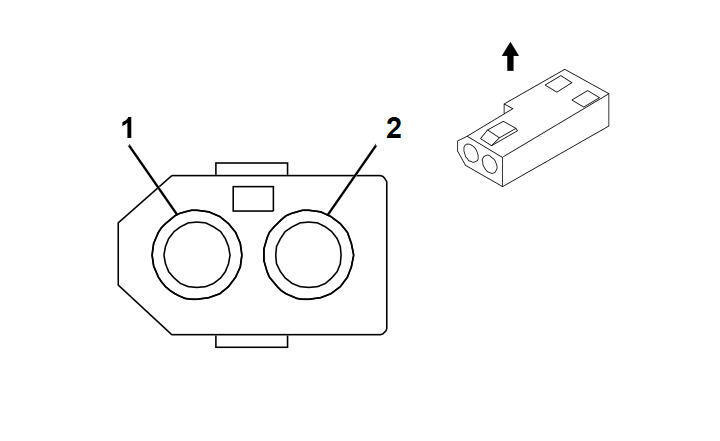

Connector Part Information
- Harness Type: Outside Rearview Mirror - Passenger
- OEM Connector: Not Available
- Service Connector: Service by Assembly - See Part Catalog
- Description: 2-Way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Service by Assembly - See Part Catalog |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BN |
1315 |
Right Front Turn Signal Lamp Supply Voltage |
I |
- |
| 2 |
0.35 |
BK/BN |
2050 |
Ground |
I |
- |
