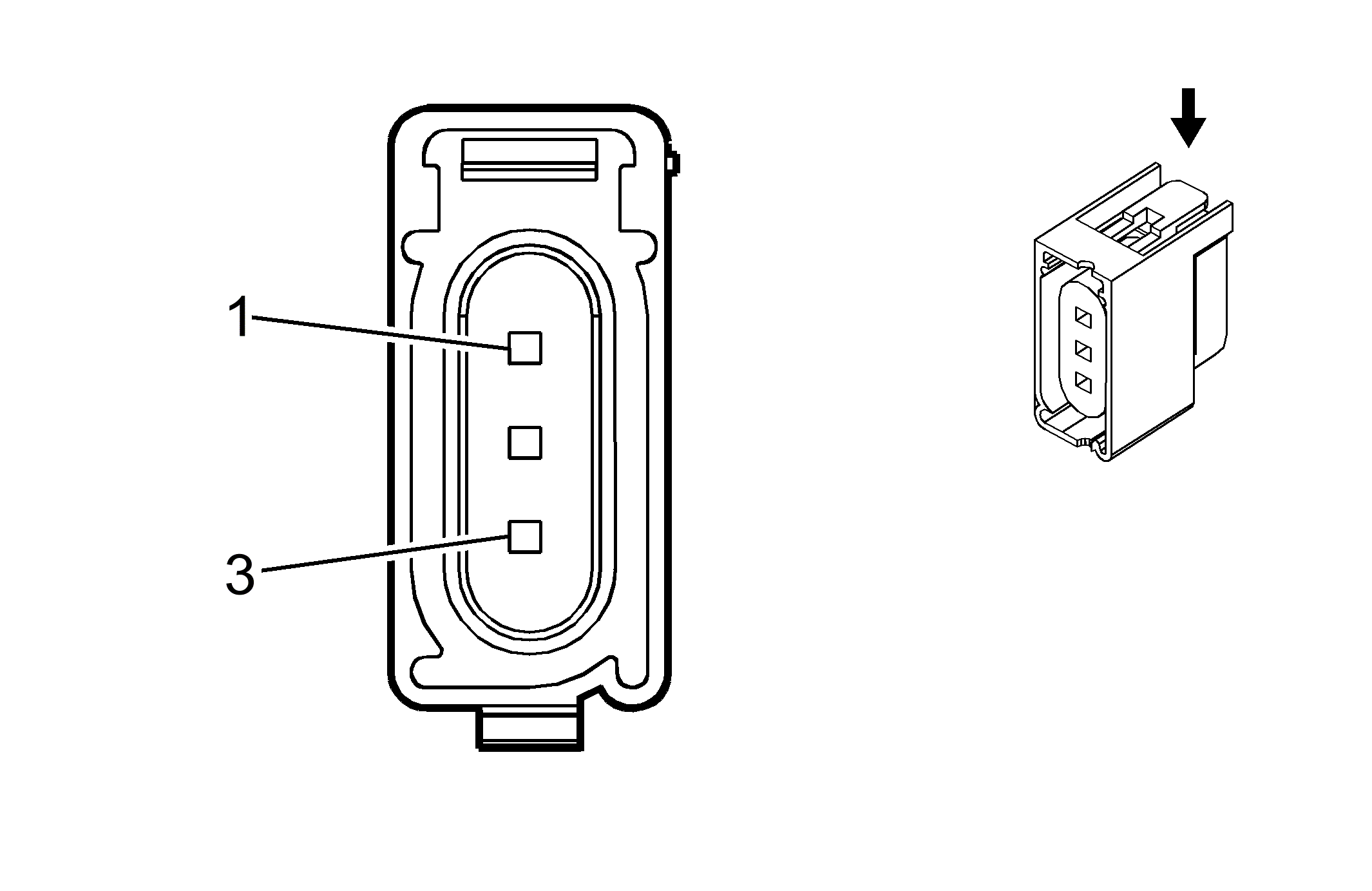

E4RF Turn Signal Lamp - Right Front
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Front Fascia
- OEM Connector: ZFJ-00703-UA
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F Axial 3 Wire Connector Assembly (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
1150 |
Ground |
I |
- |
| 2 |
0.5 |
VT |
1203 |
Right Park Lamp Supply Voltage |
I |
- |
| 3 |
0.5 |
L-GN/VT |
1315 |
Right Front Turn Signal Lamp Supply Voltage |
I |
- |
