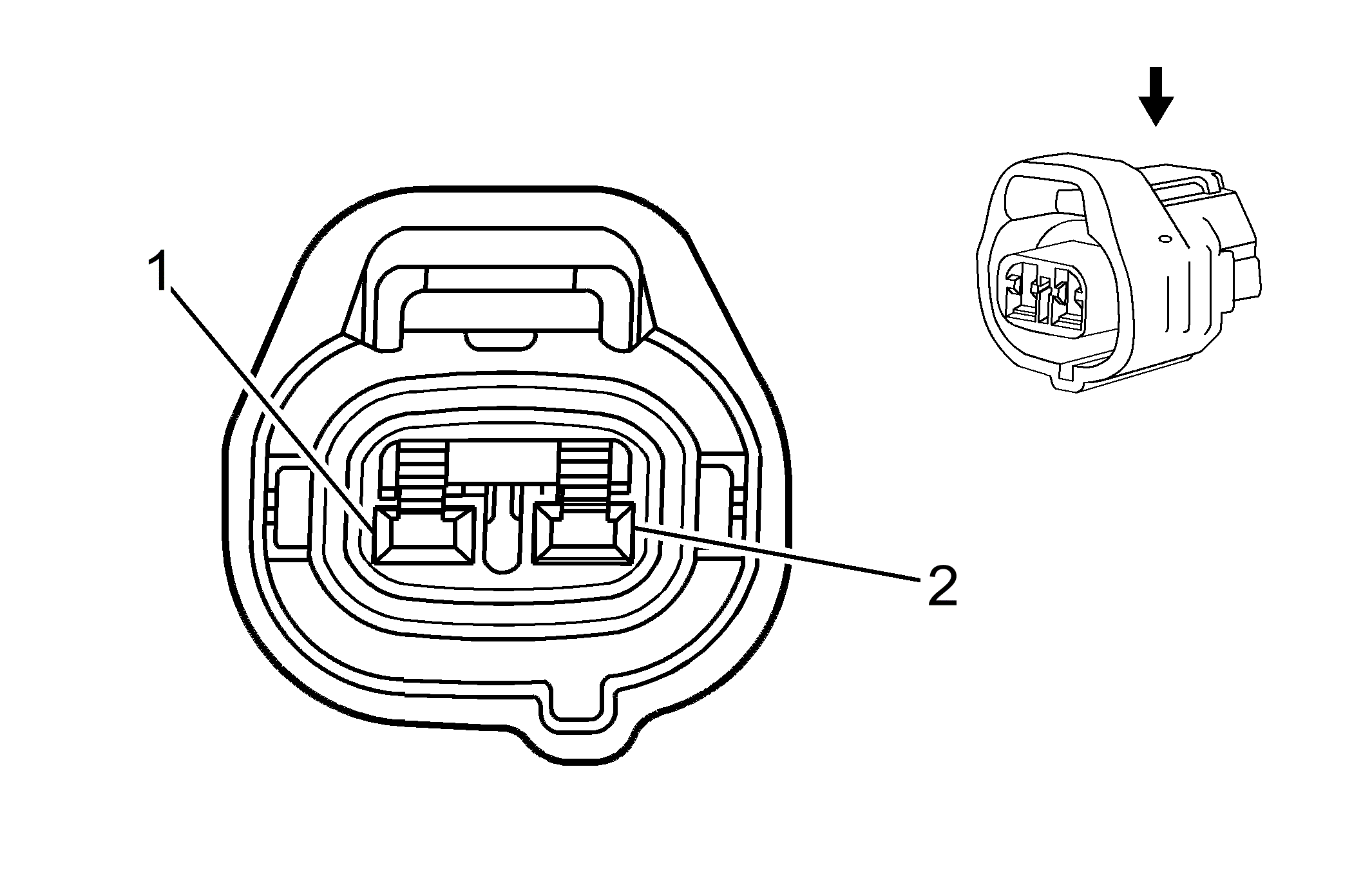

E29R Fog Lamp - Rear T79
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Rear Fascia
- OEM Connector: 6189-0264
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 090 Series, Sealed (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/GY |
122 |
Rear Fog Lamp Supply Voltage |
I |
- |
| 2 |
0.5 |
BK |
650 |
Ground |
I |
- |
