C4A Hybrid/EV Battery Section 1 X2 X2
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

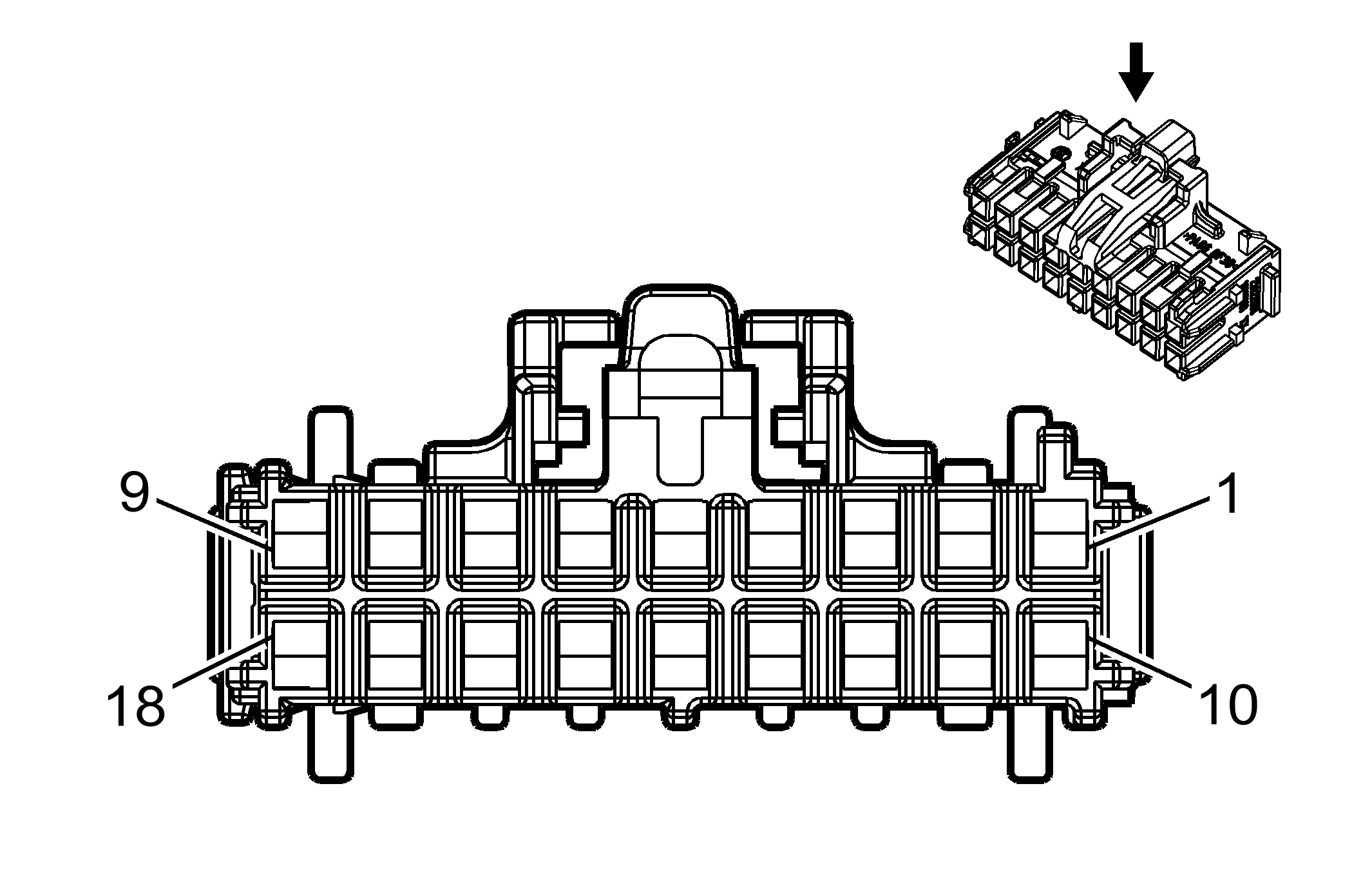

Connector Part Information
- Harness Type: High Voltage
- OEM Connector: E00023761
- Service Connector: Service by Harness - See Part Catalog
- Description: 18-Way F 1.2 MLK Series
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
BK/VT |
5403 |
Battery Pack Monitor Low Reference |
I |
- |
| 3 |
0.35 |
YE/VT |
5394 |
Battery Voltage Signal (2) |
I |
- |
| 4 |
0.35 |
GY/YE |
5396 |
Battery Voltage Signal (4) |
I |
- |
| 5 |
0.35 |
L-GN |
5398 |
Battery Voltage Signal (6) |
I |
- |
| 6 |
0.35 |
L-BU |
5400 |
Battery Voltage Signal (8) |
I |
- |
| 7 |
0.35 |
L-BU/GY |
5392 |
Battery Voltage Signal (10) |
I |
- |
| 8 |
0.35 |
BN |
5571 |
Battery Voltage Signal (12) |
I |
- |
| 9 |
0.35 |
BN/WH |
5406 |
Battery Module Temperature Signal (2) |
I |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
VT |
5391 |
Battery Voltage Signal (1) |
I |
- |
| 12 |
0.35 |
WH |
5395 |
Battery Voltage Signal (3) |
I |
- |
| 13 |
0.35 |
YE/L-GN |
5397 |
Battery Voltage Signal (5) |
I |
- |
| 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.35 |
YE/BN |
5399 |
Battery Voltage Signal (7) |
I |
- |
| 16 |
0.35 |
L-GN/BK |
5401 |
Battery Voltage Signal (9) |
I |
- |
| 17 |
0.35 |
L-GN/GY |
5393 |
Battery Voltage Signal (11) |
I |
- |
| 18 |
0.35 |
BK/L-BU |
3774 |
Battery Module Temperature Sensor Low Reference (2) |
I |
- |
