B258 Hybrid/EV Battery Coolant Level Switch
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

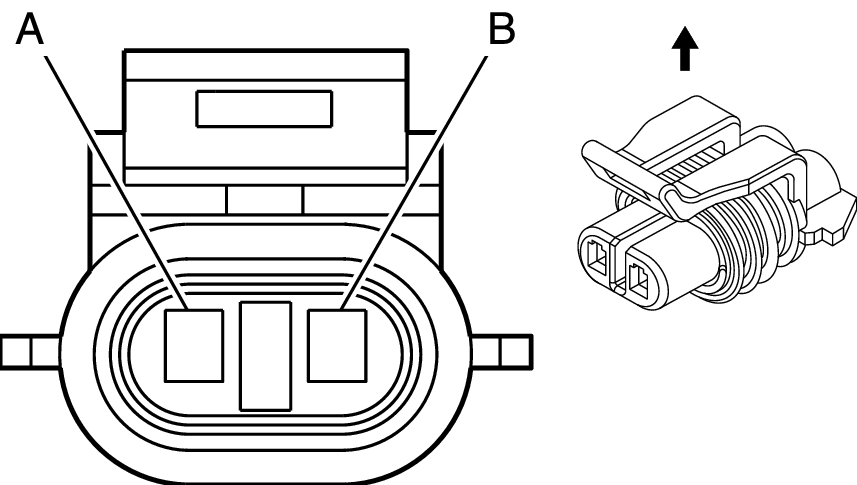

Connector Part Information
- Harness Type: Cooling Fan
- OEM Connector: 12186685
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 150 Metri Pack Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
L-BU/YE |
68 |
Low Coolant Level Indicator Control |
I |
- |
| B |
0.5 |
BK/L-GN |
476 |
Sensor Low Reference |
I |
- |
