B228B Drive Motor 2 Position Sensor X2 X2
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

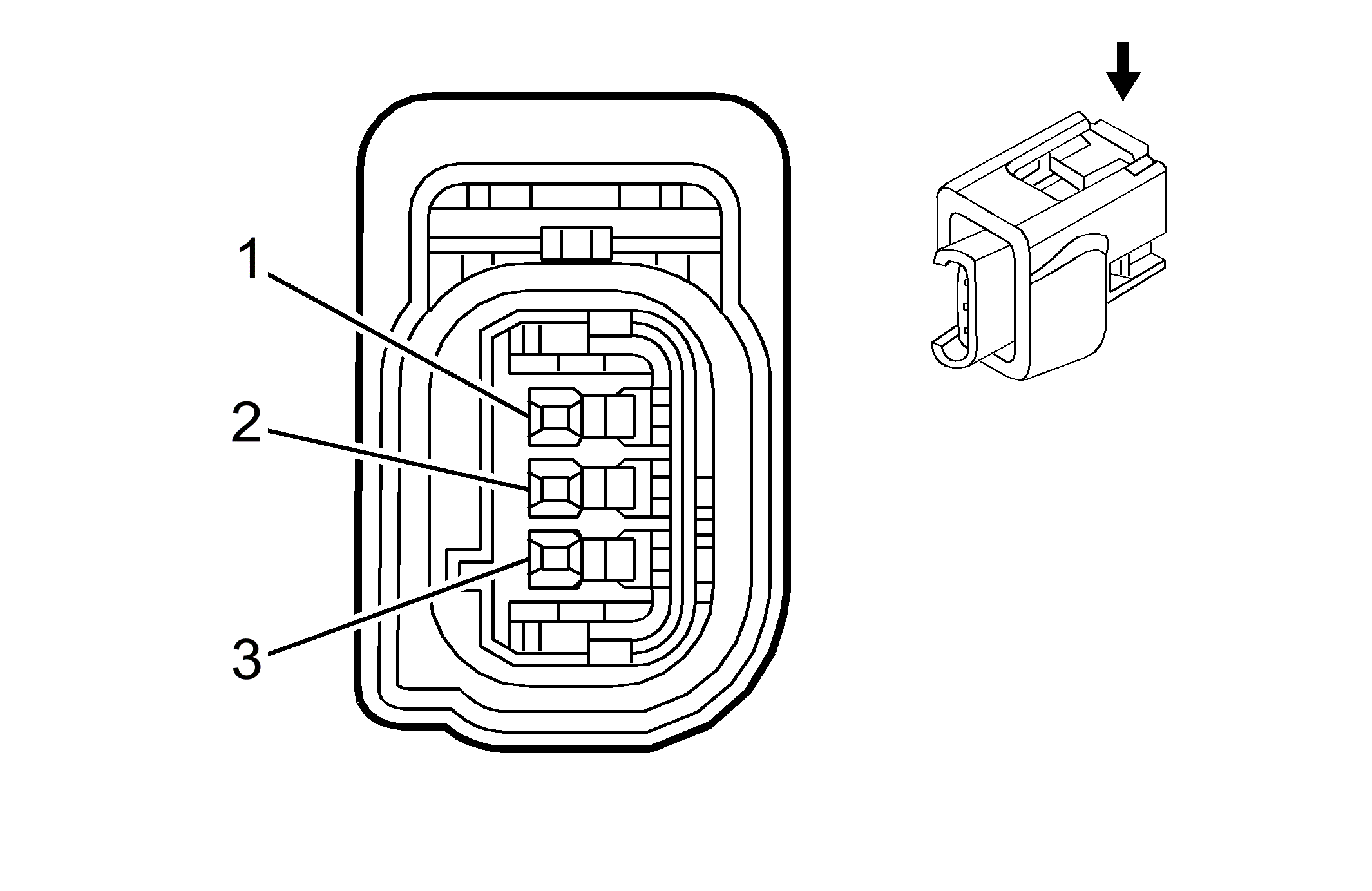

Connector Part Information
- Harness Type: Engine
- OEM Connector: 1438454-1
- Service Connector: 13585333
- Description: 3-Way F 064 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH/L-GN |
7648 |
Traction Power Inverter Module Traction Power Inverter Module Resolver #1 Excitation Signal Negative |
I |
- |
| 2 |
0.5 |
L-BU |
7645 |
Traction Power Inverter Module Resolver #1 Excitation Signal Positive |
I |
- |
| 3 |
0.5 |
BK/WH |
751 |
Signal Ground |
I |
- |
