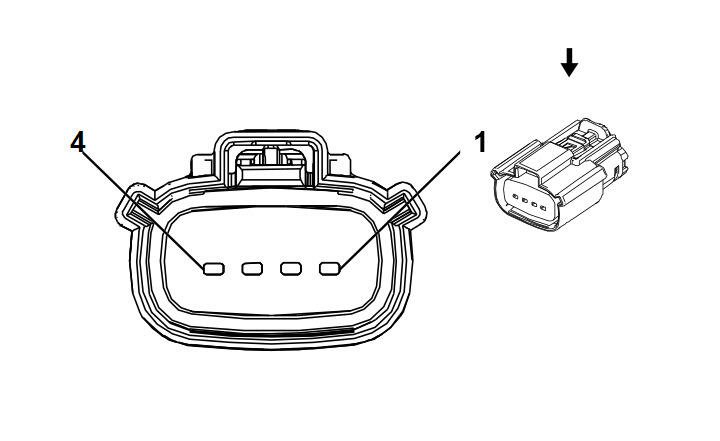

B208 Fuel Door Status Switch Assembly
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 33471-0406
- Service Connector: 13577535
- Description: 4-Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
L-BU/BK |
6502 |
Fuel Door Open Signal |
I |
- |
| 2 |
0.5 |
BK |
850 |
Ground |
I |
- |
| 3 |
0.5 |
YE/BK |
3829 |
Fuel Door Status Signal |
I |
- |
| 4 |
0.5 |
BK |
850 |
Ground |
I |
- |
