Terminal Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

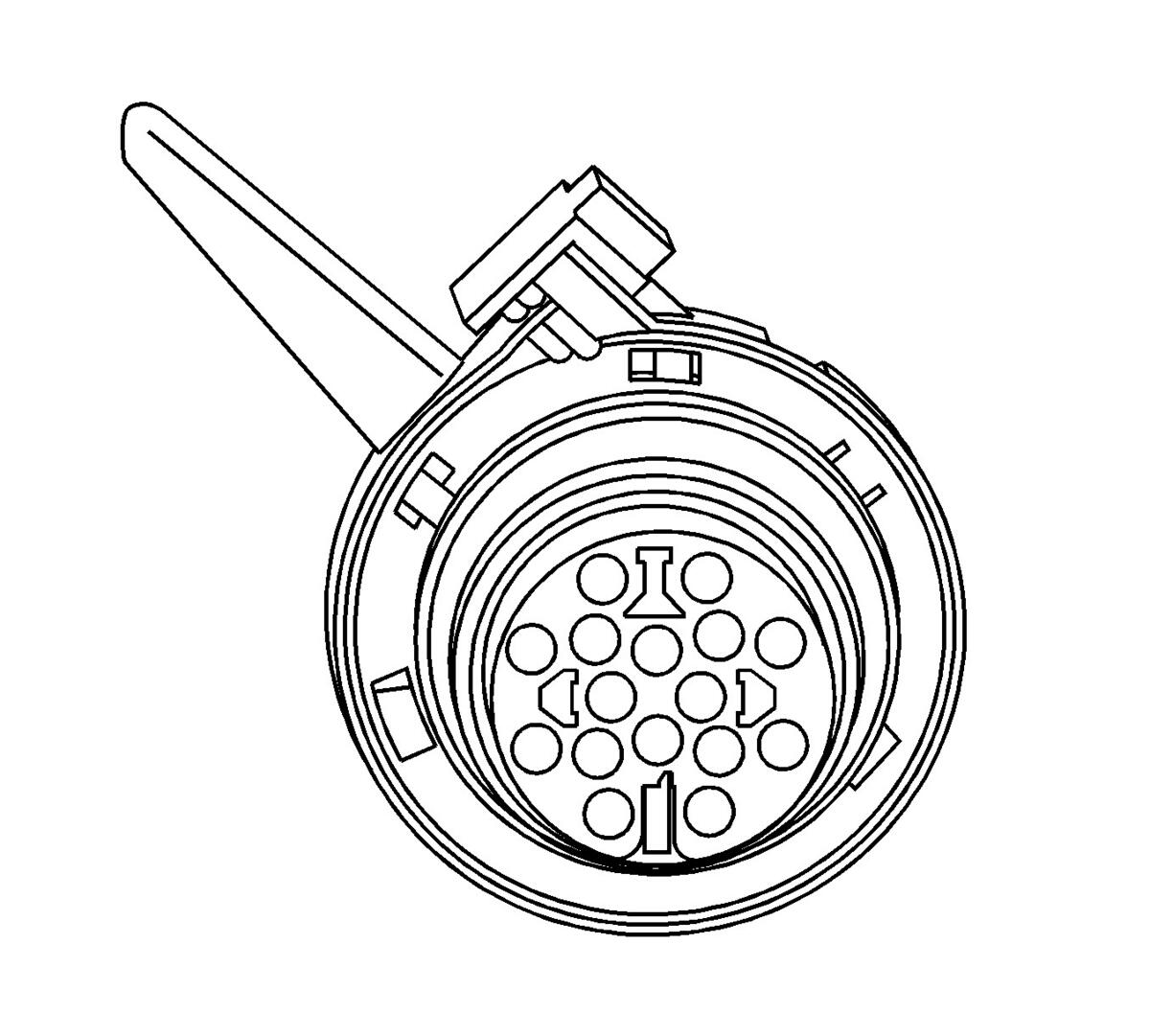

    Fig 1: View Of Connector & Lock
    GM1921876Courtesy of GENERAL MOTORS COMPANY
  1. While depressing the lock, twist and remove the connector from the component.
    2. Fig 2: View Of Terminal Position Assurance (TPA)
    GM1921872Courtesy of GENERAL MOTORS COMPANY
  2. Locate the terminal position assurance (TPA).

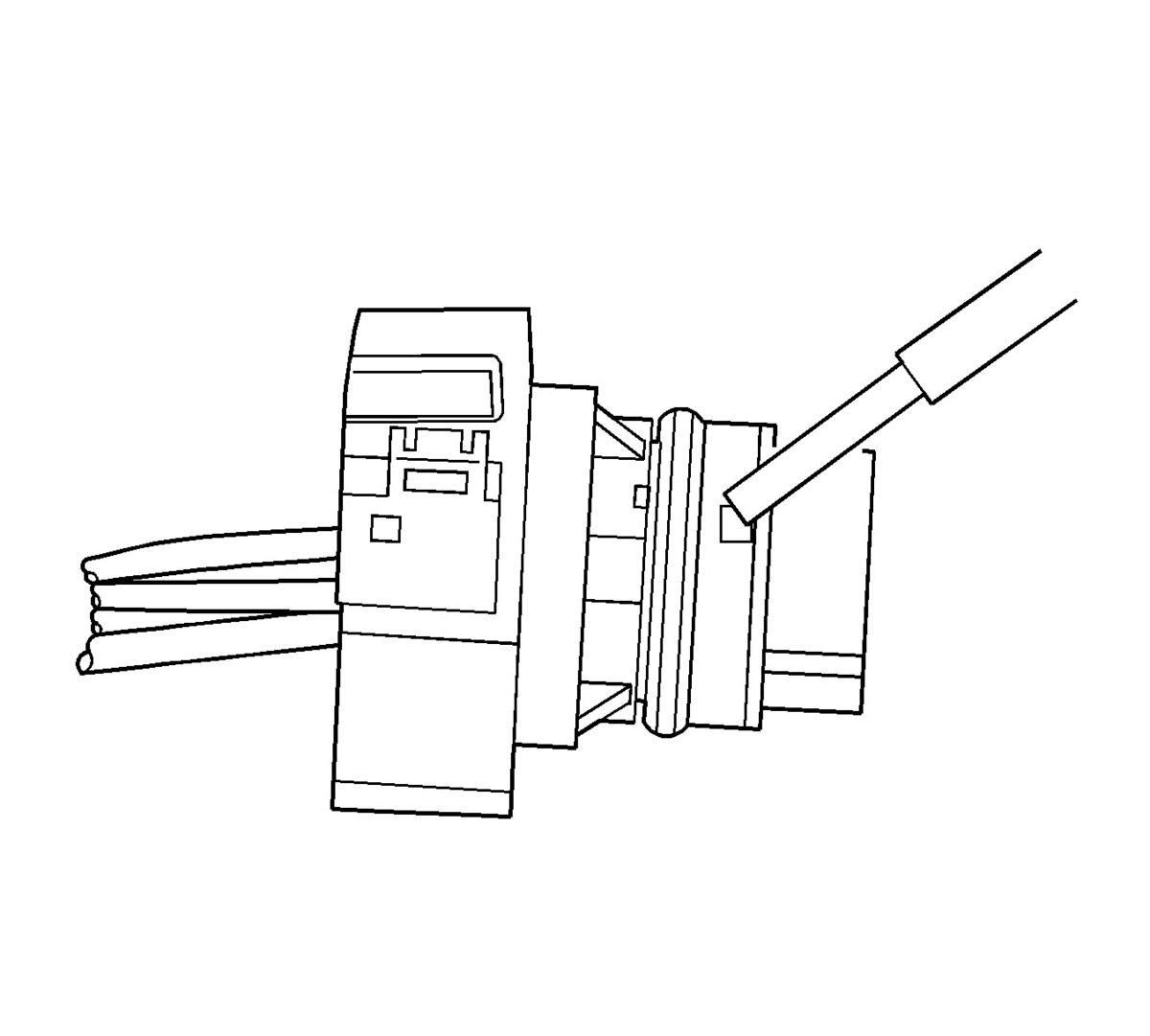

    3. Fig 3: View Of TPA & Flat-Bladed Tool
    GM1921873Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The TPA cannot be removed from the connector while there are terminals present in the connector body.

  3. Use a small flat-blade tool to push the TPA until it bottoms out.

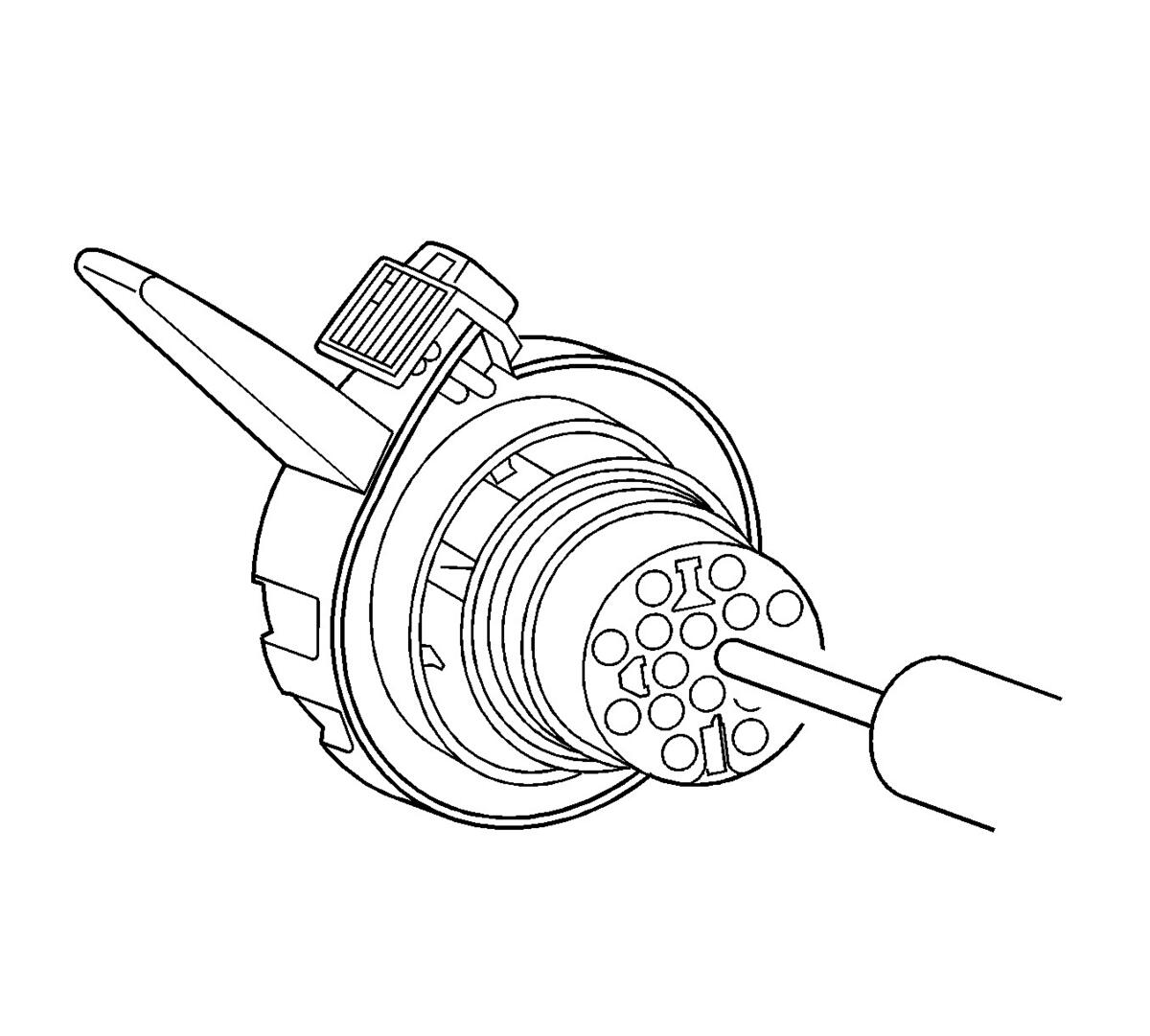

    4. Fig 4: Using J 38125-28 Tool To Release Terminals
    GM1921843Courtesy of GENERAL MOTORS COMPANY
  4. Use the J-38125-28 tool to release the terminals by inserting the tool into the terminal cavity as shown in the graphic.
  5. While holding the removal tool in place, gently pull the wire out of the back of the connector. Always remember never use force when pulling a terminal out of a connector.
  6. Repair the terminal by following the Repairing Connector Terminals (Terminated Lead Repair) Repairing Connector Terminals (Terminal Repair)  procedure.
