Connector Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

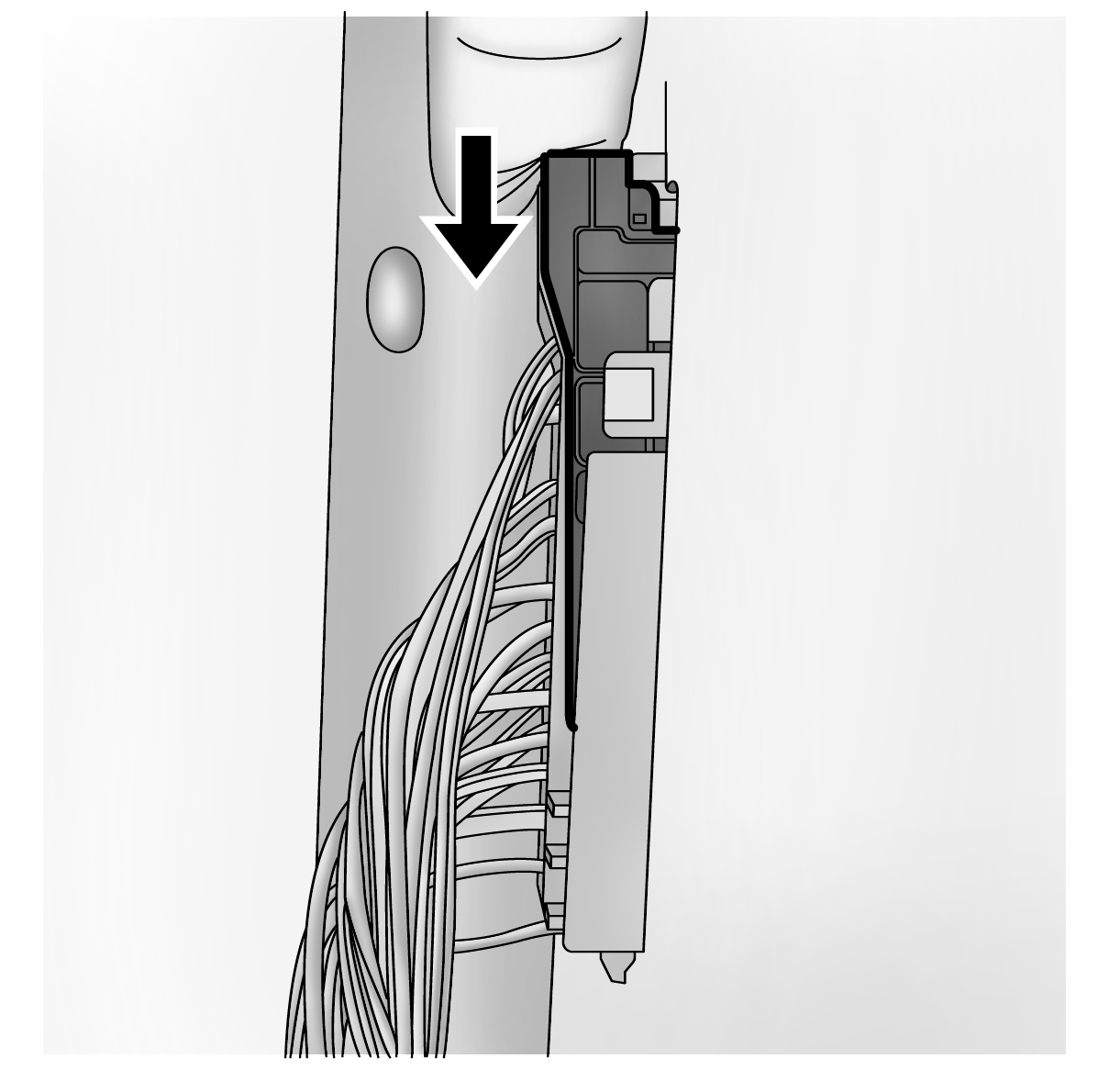

    Fig 1: Connector Position Assurance
    GM4127442Courtesy of GENERAL MOTORS COMPANY
  1. Release the connector position assurance (CPA).

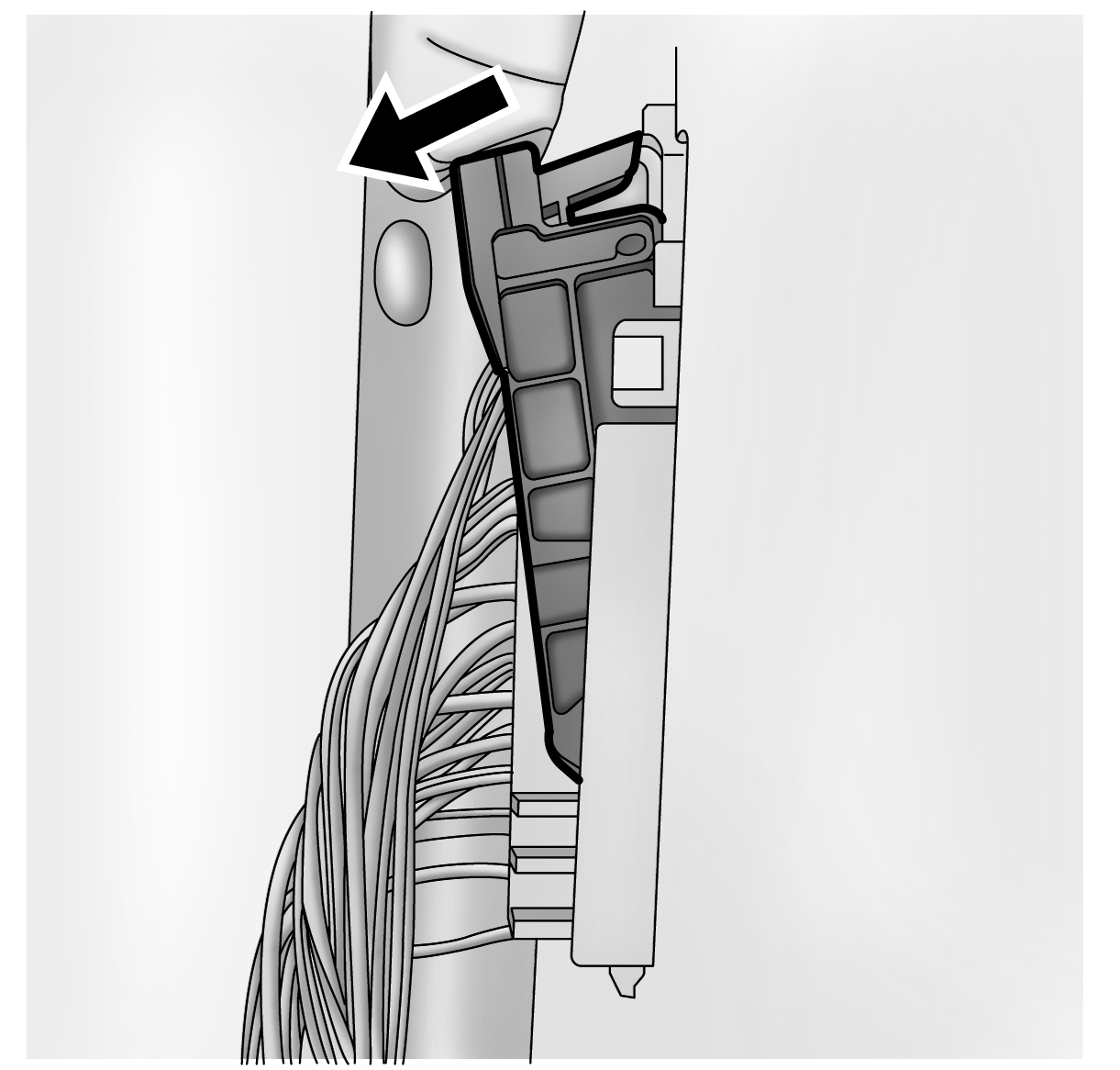

    2. Fig 2: Lever Lock
    GM4127445Courtesy of GENERAL MOTORS COMPANY
  2. Move the lever lock outward while pressing down on the CPA.

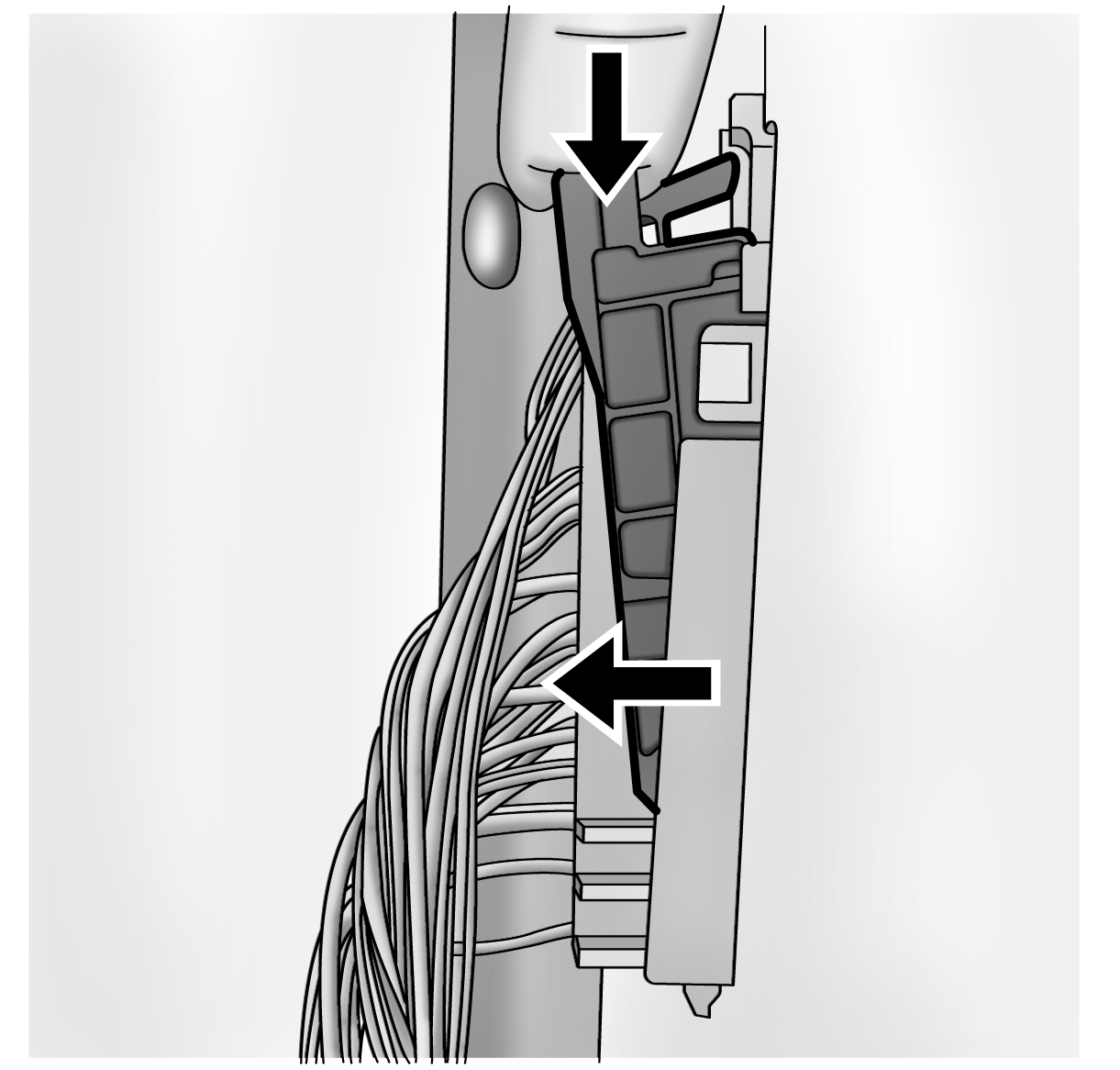

    3. Fig 3: Releasing Connector
    GM4127447Courtesy of GENERAL MOTORS COMPANY
  3. While pressing down on the CPA, Release the Connector.
