Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Releasing Locking Tab On Connector
    GM2374629Courtesy of GENERAL MOTORS COMPANY
  1. Use a flat-bladed tool to release the locking tab on the connector.

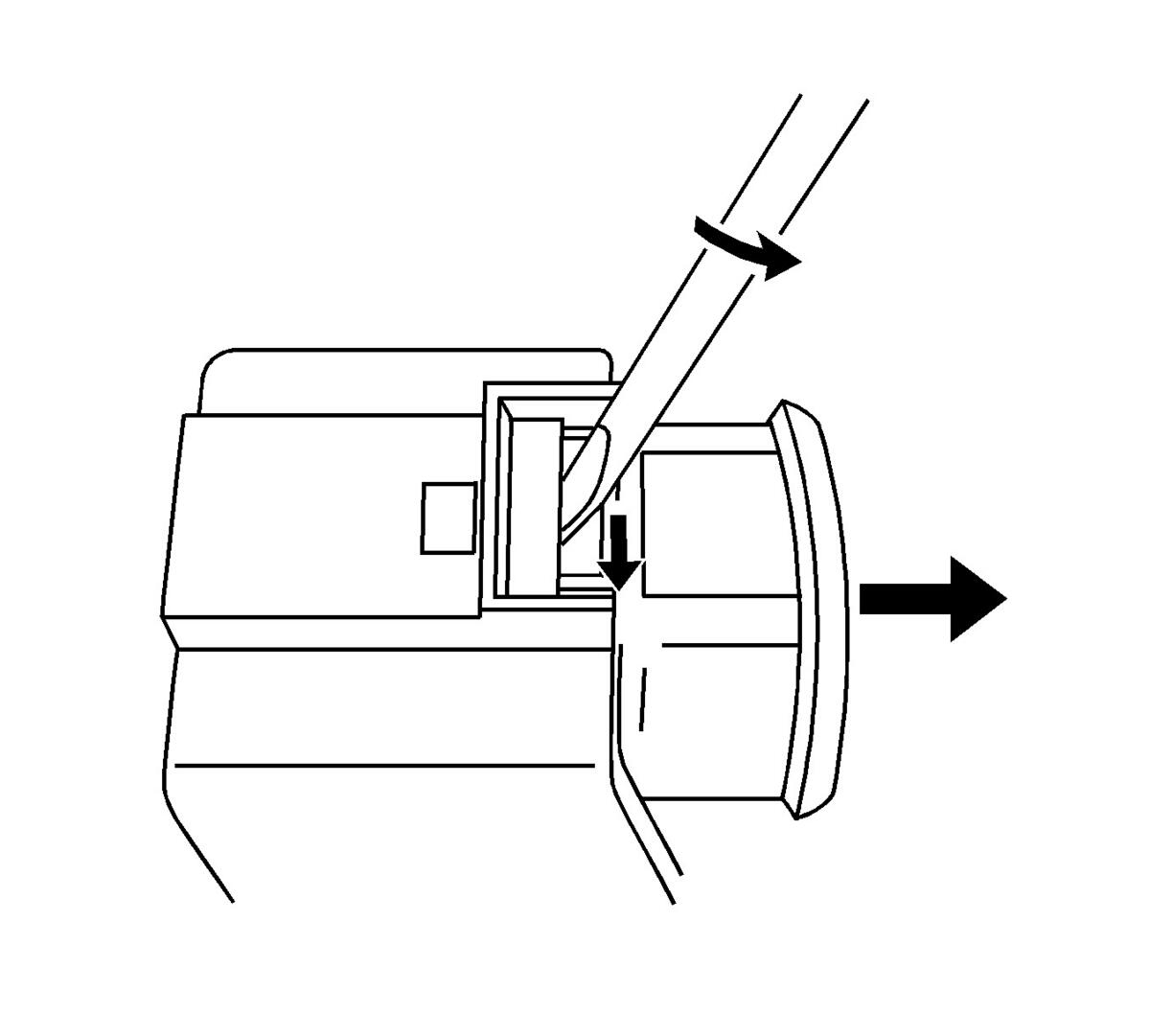

    2. Fig 2: Twisting Flat-Bladed Tool To Push Top Of Locking Tab Inward
    GM2728308Courtesy of GENERAL MOTORS COMPANY
  2. Option 1: Twist the flat-bladed tool to push the top of the locking tab inward while pulling the connector body out.
    3. Fig 3: Using Flat-Bladed Tool To Depress Locking Tab
    GM2728310Courtesy of GENERAL MOTORS COMPANY
  3. Option 2: Pry using the flat-bladed tool to depress the locking tab while pulling the connector body out.
