Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The orange or yellow connector position assurance (CPA) must be released first to disconnect or to connect the connector.

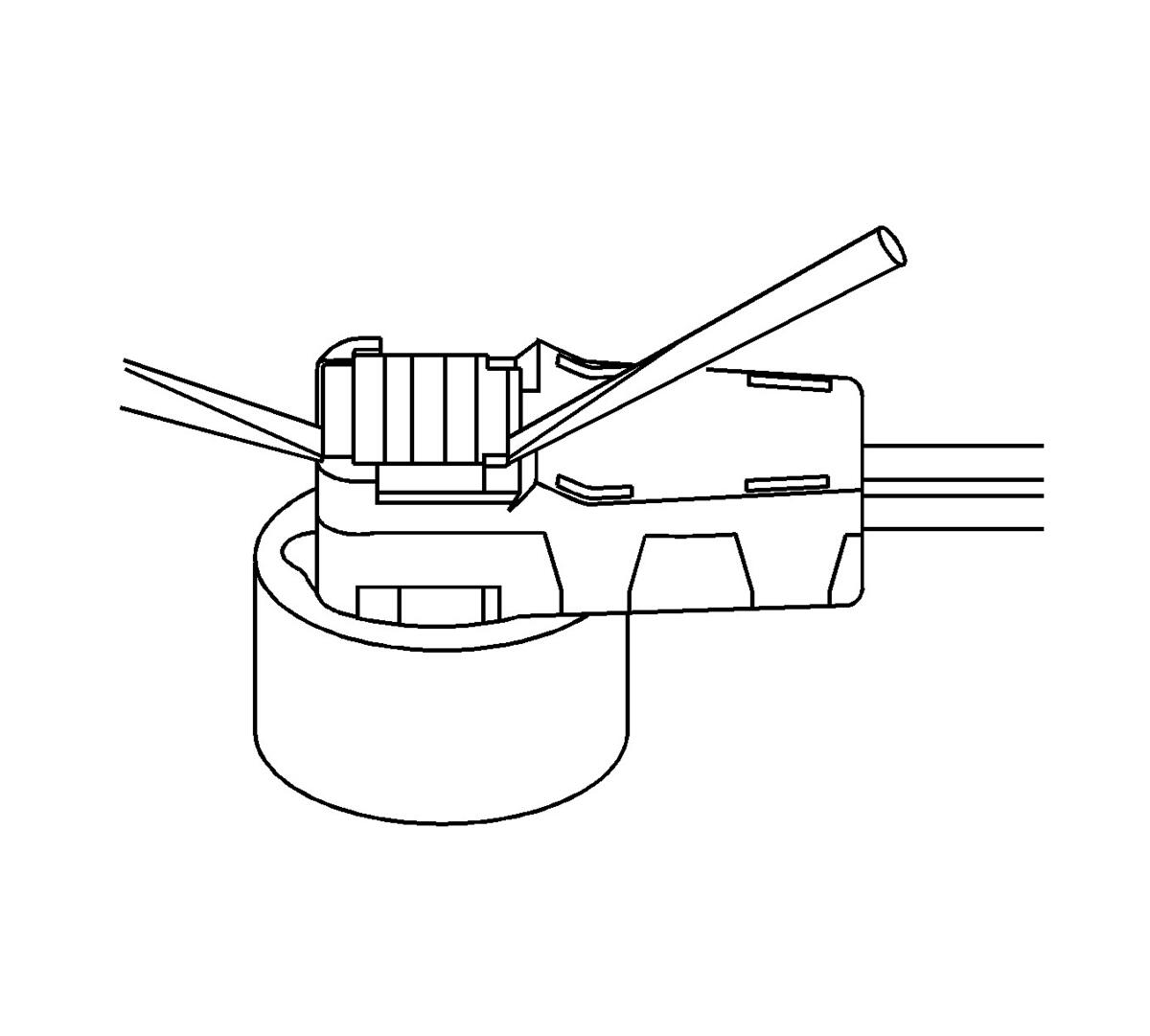

    Fig 1: Lifting Orange CPA
    GM2374625Courtesy of GENERAL MOTORS COMPANY
  1. Lift the orange or yellow CPA vertically (avoid lifting on an angle to the connector) approximately 4 mm to release the connector. Use a small flat-bladed tool to help release the CPA. The CPA may also be released manually without any tools.

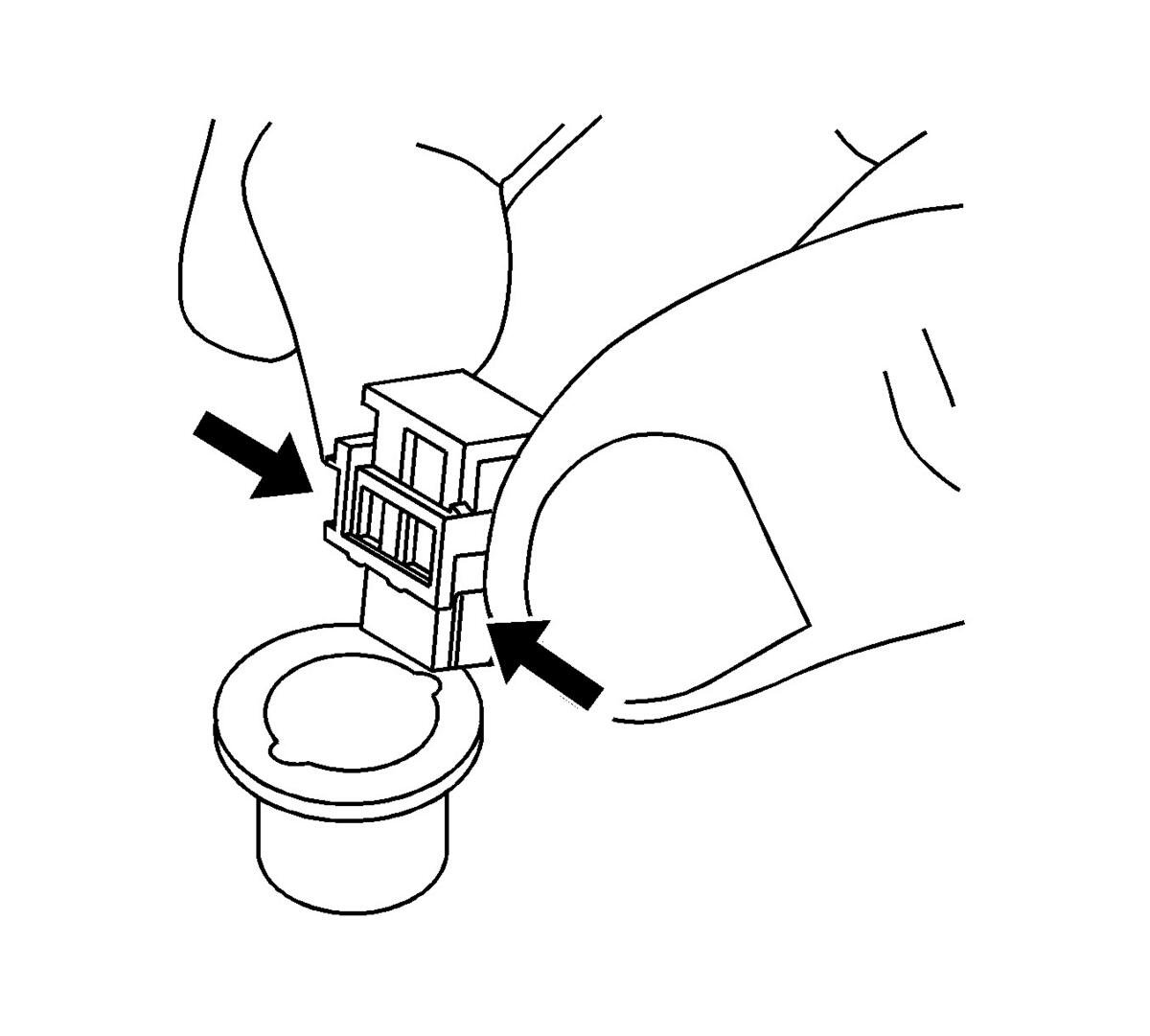

    2. Fig 2: Grabbing Connector On Both Sides
    GM3258545Courtesy of GENERAL MOTORS COMPANY
  2. Grab the connector on both sides and lift vertically to disconnect the connector.
