Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

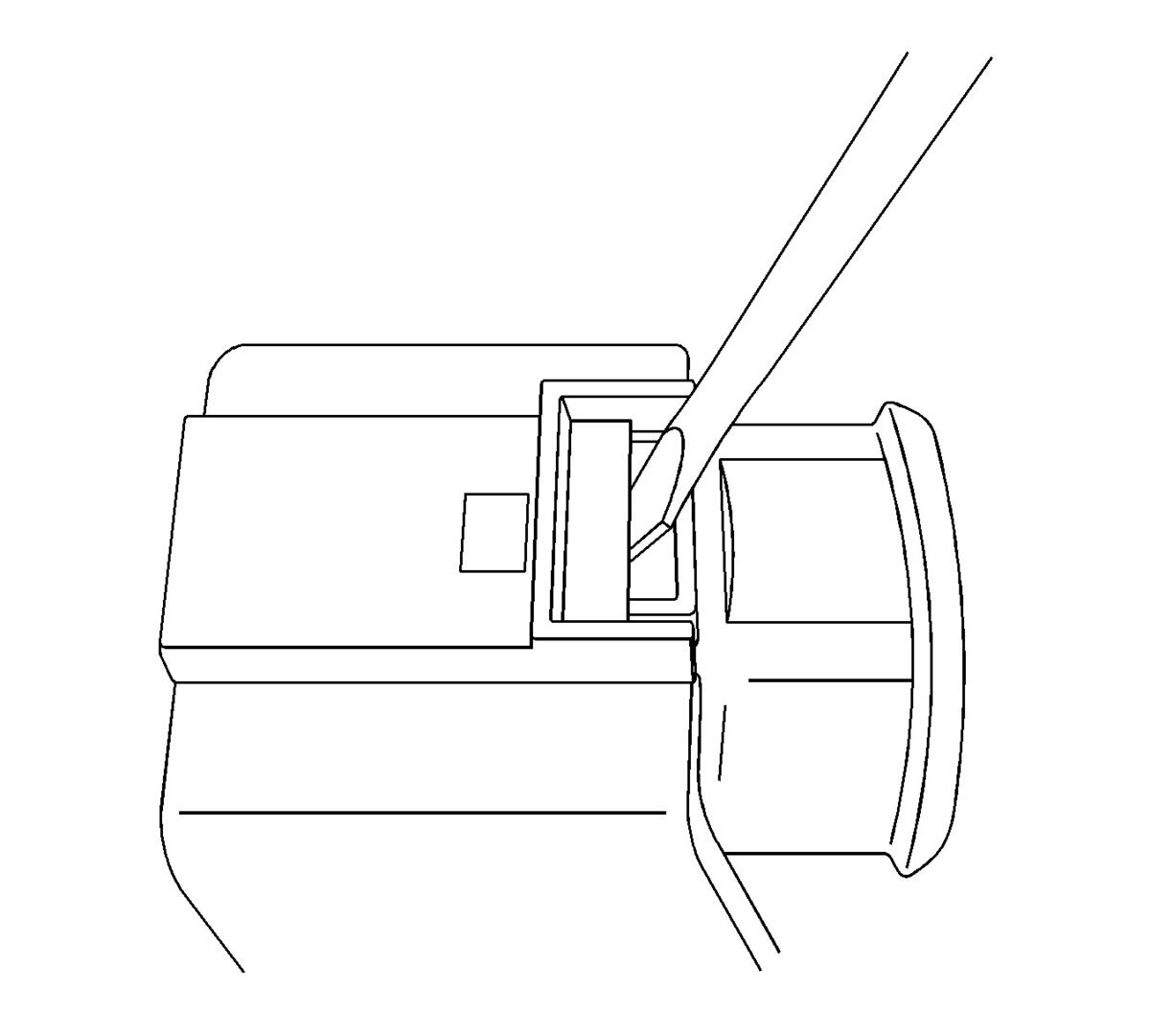

    Fig 1: Releasing Locking Tab On Connector
    GM2374629Courtesy of GENERAL MOTORS COMPANY
  1. Use a small flat-bladed tool to release the locking tab on the connector.

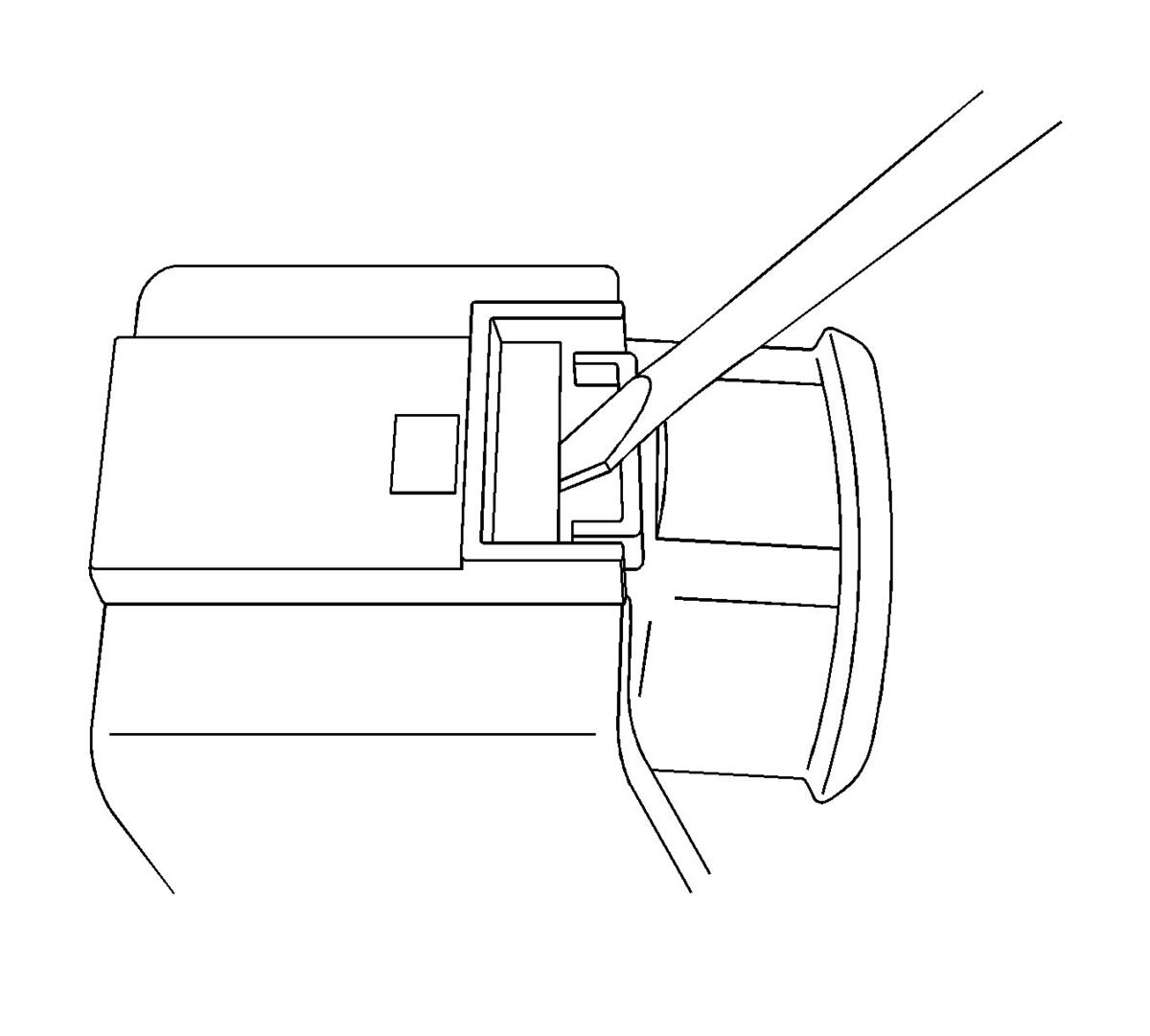

    2. Fig 2: Releasing Connector
    GM2374631Courtesy of GENERAL MOTORS COMPANY
  2. Push down the locking tab to release the connector. The small flat-bladed tool may need to be pushed down and angled back slightly to depress the locking tab. Pull on the connector body while releasing the locking tab to disconnect the connector.
